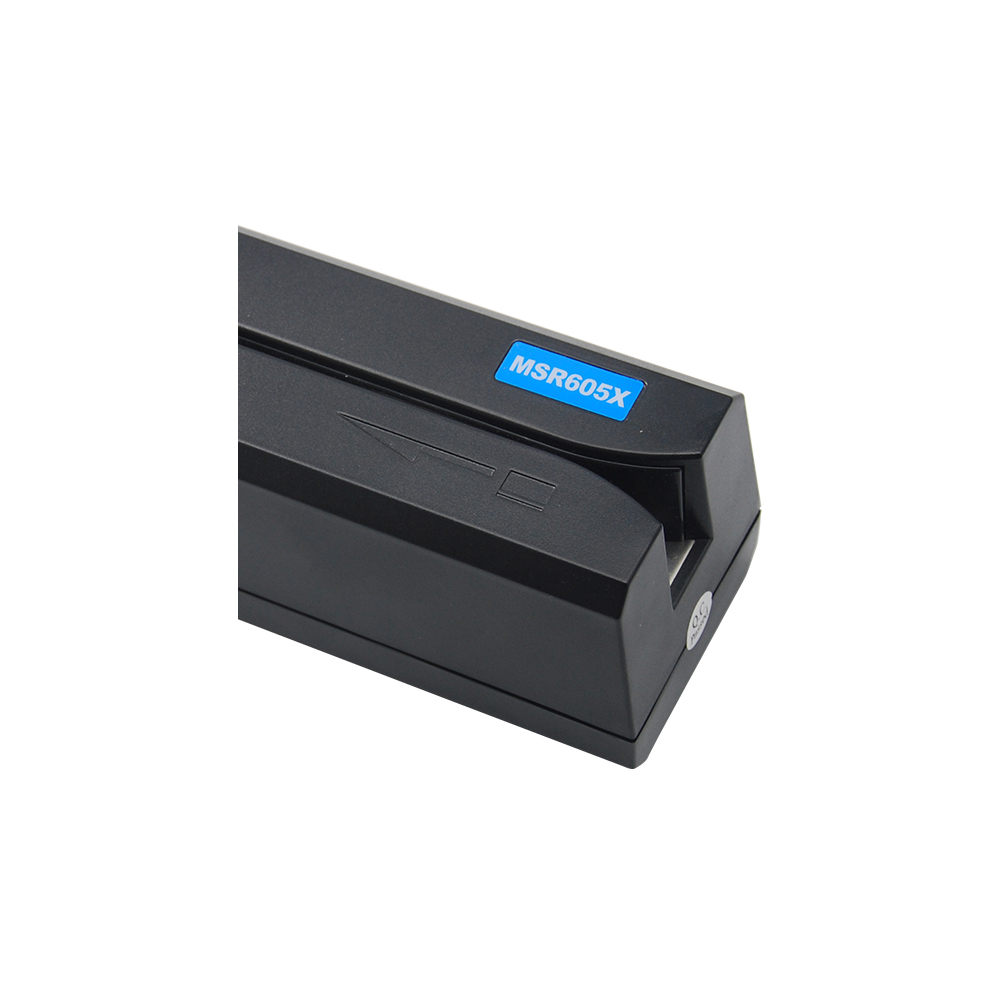

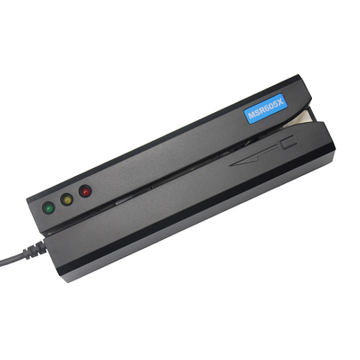

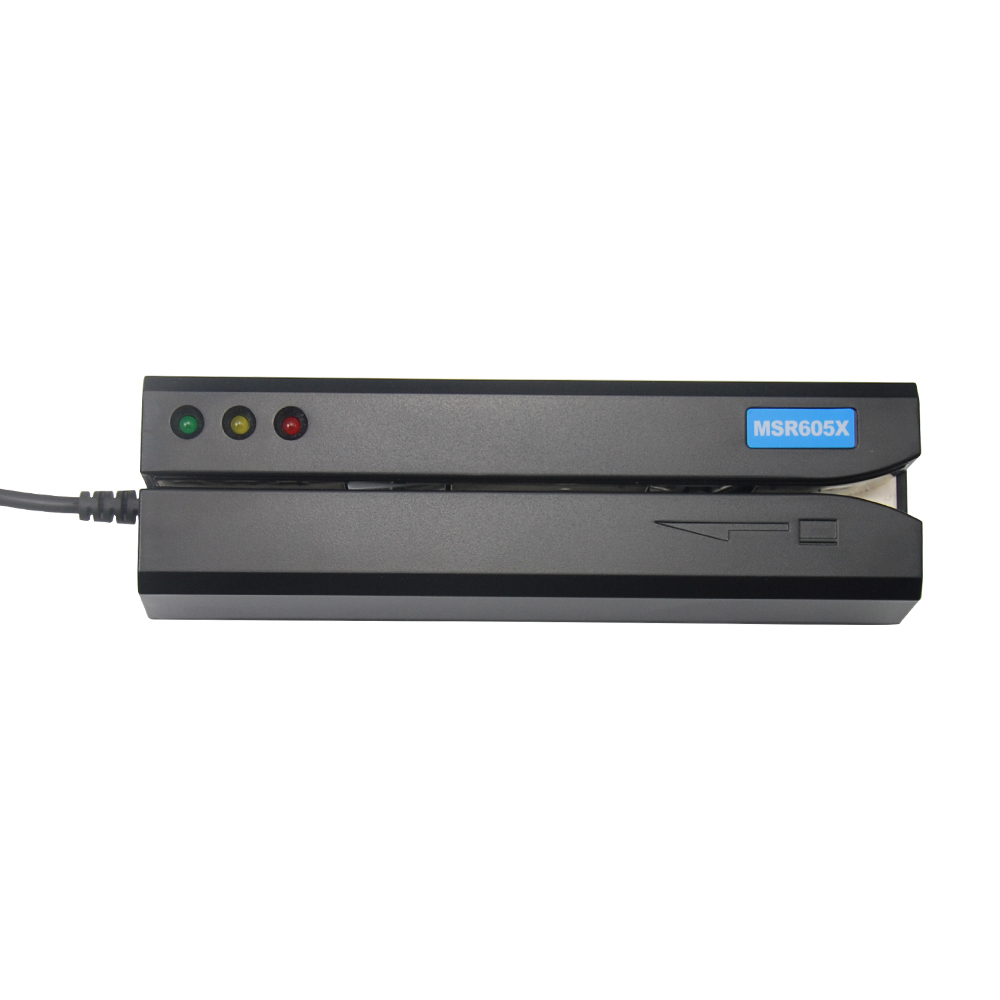

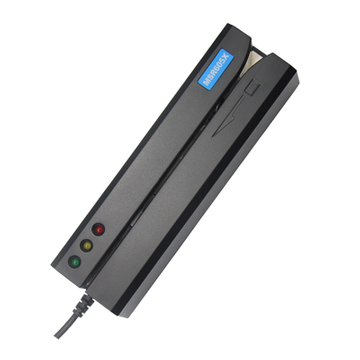

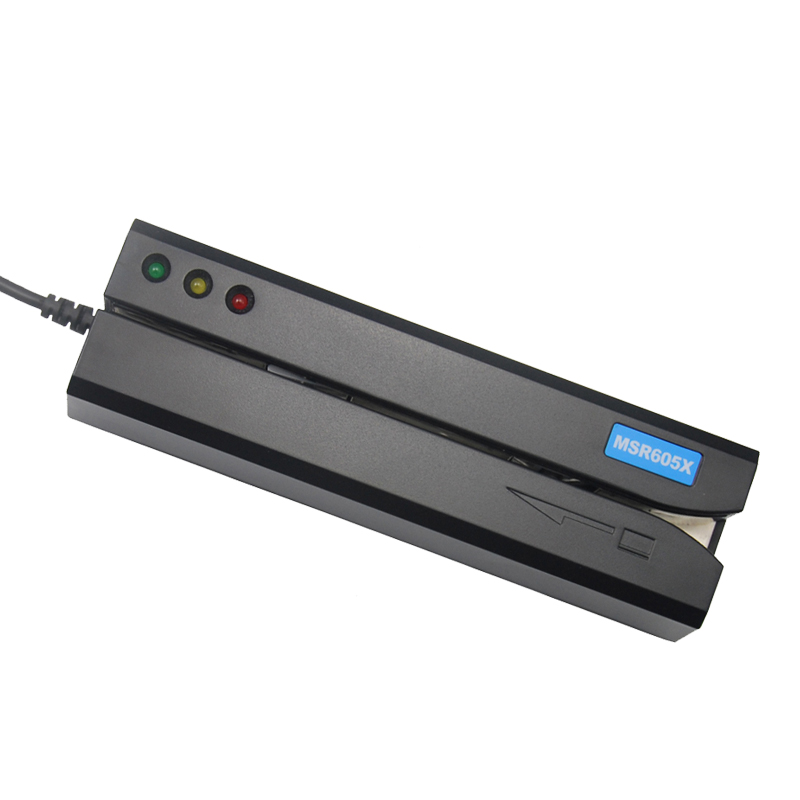

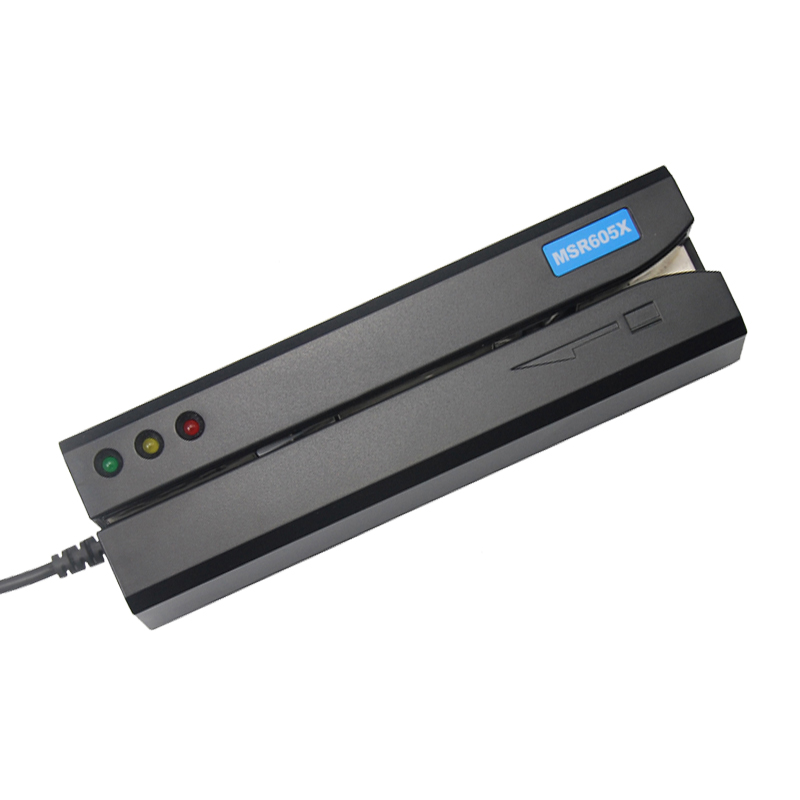

USB HID 1&2&3 Tracks Encoder Magnetic Stripe Card Reader Writer MSR605X

MSR605X is a Magnetic Stripe Card Reader Writer (Encoder) to offer a card reading / writing solution for ISO 7811-6 formats without AC power adaptor, it’s power and communication with USB interface directly.

Number of Tracks :
Interface:
Card thickness:
Write speed:
Availability:
Quantity:
  • MSR605X

  • HCCTG

USB Magnetic Stripe Card Reader Writer For ID Recognition MSR605X


Feature:

  • Meets all ISO / IEC 7811 standards for card data encoding;

  • Reads and writes magnetic stripe media including cards, tickets, badges and passbooks.

  • Not need external power adapter and not need USB driver, plug and play.

  • Manual Swipe to read and / or write card with USB output.

  • Writing and verifying data on single, dual, or triple track in one swipe.

  • Programmable leading bit, raw data, DMV / AAMVA, and user defined format; Hi or Low coercivity is easily configured by clicking a single software button. Writes any track combinations of 210 and / or 75 bpi data density.

  • Can write characters at variable bit lengths.

  • Operating life exceeds 1,000,000 card swipes.

  • ABS housing for stability & operating life.

  • EasyMSR software is easy; it guides the user through set-up of standard and custom writing & reading processes.

  • LED provides operational status.

  • Works with Windows 95 / 98 / Me / 2000 / NT / XP / VISTA / Win7 / Win8 / win10 / MacOS.

  • CE, FCC, ROHS certified



Specification

Read card

1&2&3 tracks

Bit per density

75 / 210 bpi

Coercive force

Read / write 300-4000 oe Mag.card

Card thickness

0.76-1.2 mm

Read speed

STD card  5-55 ips

Jitter +/-15%  5-50 ips

Amp. 60%  5-50 ips

Write speed

5-30 ips

Write jitter

Interval < +/- 10%, Sub-interval < +/- 12%

Error rate

Read < 0.5% Write < 0.8%

Head life

Min. 1000K swipes for both read / write head

Size

8.3 * 2.5 * 2.5 inches (L * W * H)

Apply

Windows, Mac


Application:

  • Financial Banking: Credit Card, Debit Card, Bank Card

  • Retail: Gift Card, Customer ID, Store ID

  • Government: Driver Licence, Health Card, Government ID

  • Any movable data collection Trade shows, Racing events

  • Employee's Time / Attendance data collection

  • Exhibition visitors' data collection

  • Conference attendants data collection

  • Card Verification: Age verification

  • Point of Sales: Payment collection, Credit card data collection

  • Law Enforcement: DMV card

  • Attendance: Student ID, Membership Card, Club ID



MSR605X encodes and reads ISO, AAMVA, User Custom, and Raw-Data card formats. It writes (encodes data), reads the data, and then verifies the encoding for up to three tracks in a single card swipe. MSR605X writes / reads both High-coercivity and Low-coercivity cards. It provides a High-Speed USB interface to communicate with windows or Mac OS computers. it’s not need for extra power adaptor, Works with all the major operating systems as Windows 7, 8, 10, Vista, Xp, 2000 (32 & 64 bits) and Apple Computers (MacBook Air, MacBook Pro, Mac Mini, Mac Pro, iMac).

The operation and design are unique. The ABS housing and the deep card slot with low head force design ensures smooth and easy card swipes. Durable hard plastic casing and metal pad for sliding card keep this machine form wear and tear from extended use. all of them provide stability, reliability, and the accuracy required for ISO/IEC 7811 standards in the card writing process.

MSR605X comes with Free Windows and Mac software application that makes the reading and writing process quick, easy, and verifiable. It’s one of the high reliable 3 tracks Hi-co magnetic card reader / writer available in the market today for small and medium size businesses which require magnetic stripe card customizations. It is ideal for access control, time keeping, banking, ID recognition & credit verification and related applications. In fact, wherever a magnetic stripe ID or transaction card is used, one can find a related use for the versatile, user-friendly MSR605X magnetic
