HCC-E3 has feature of easy paper loading and low noise thermal printing.
| Quantity: | |
|---|---|
HCC-E3
HCCTG

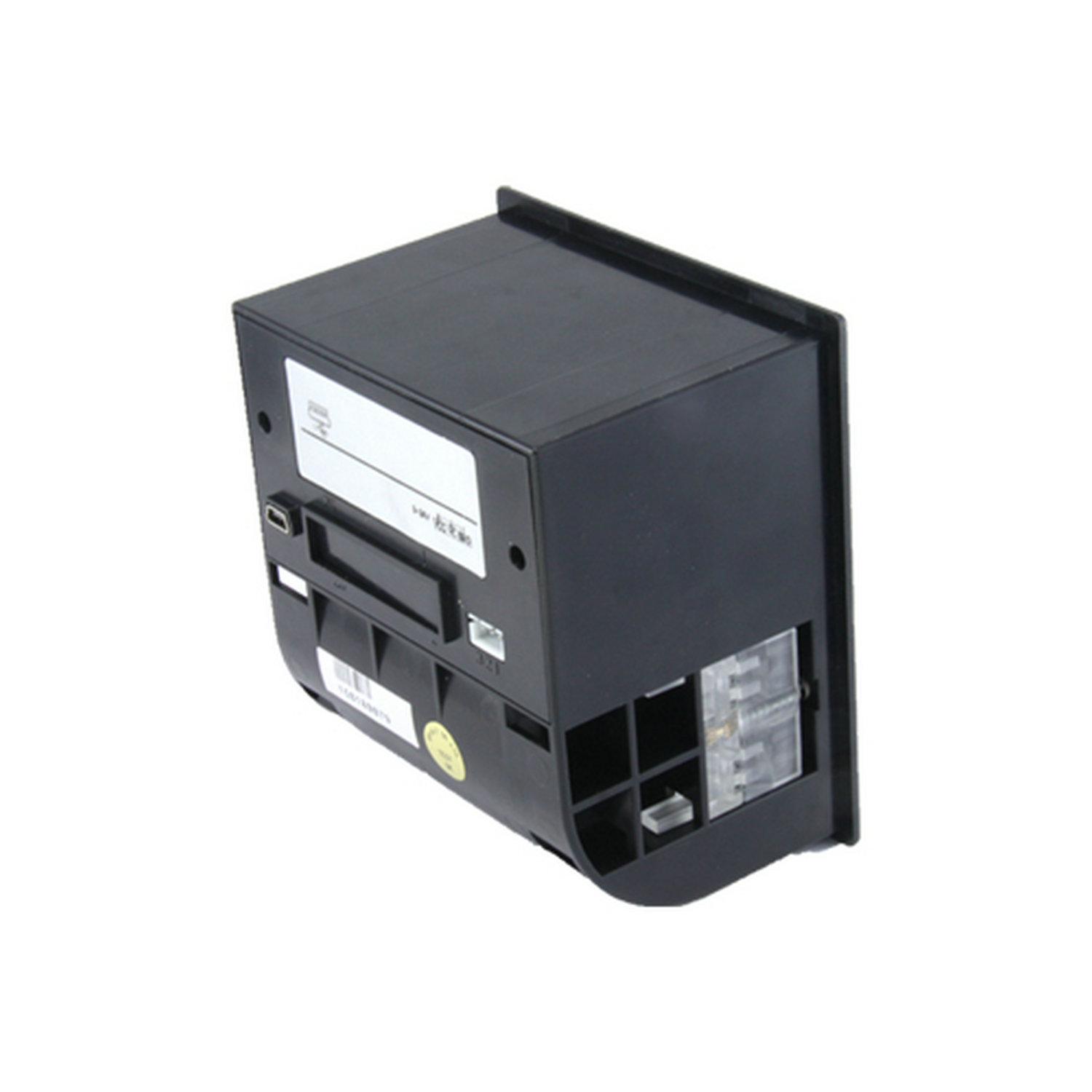

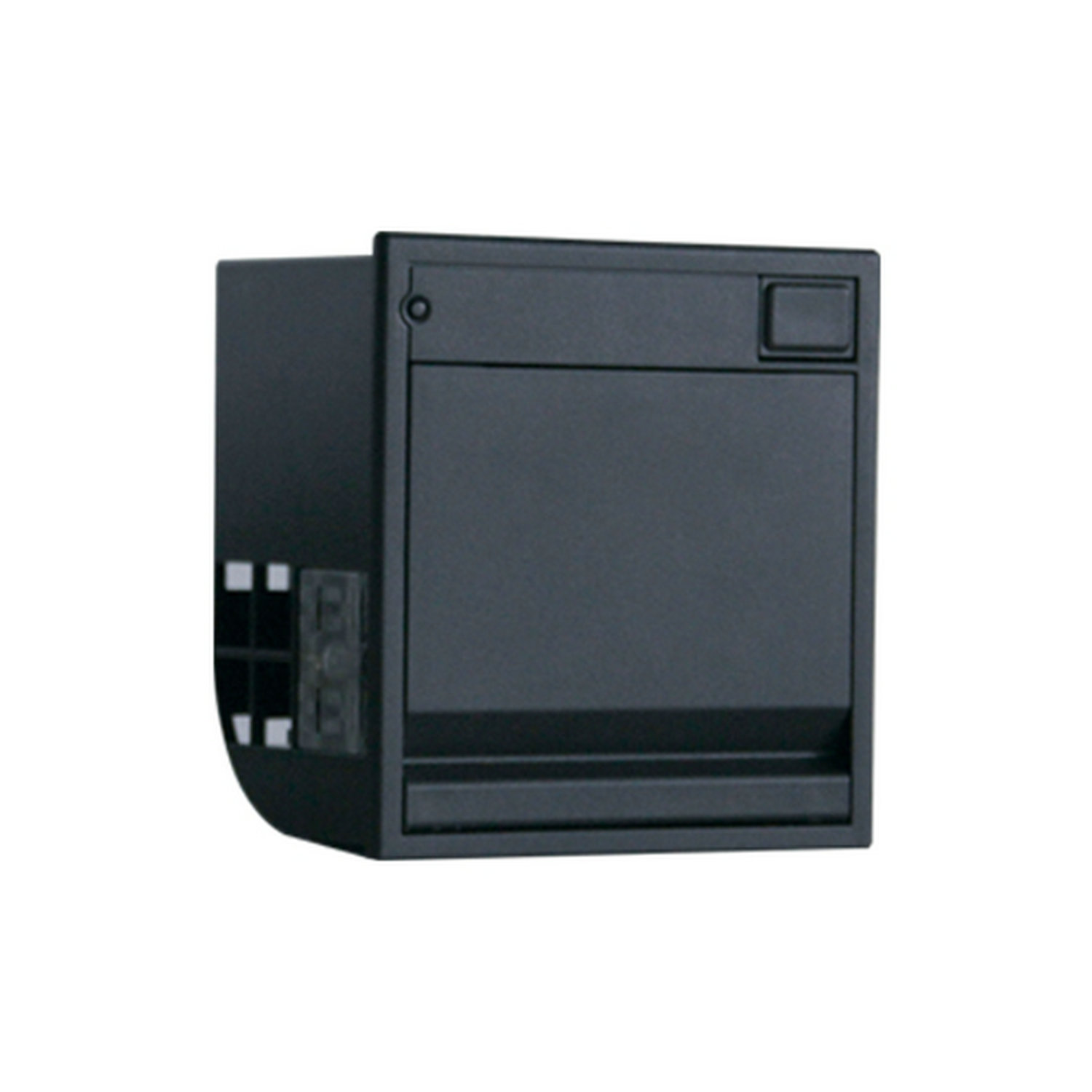

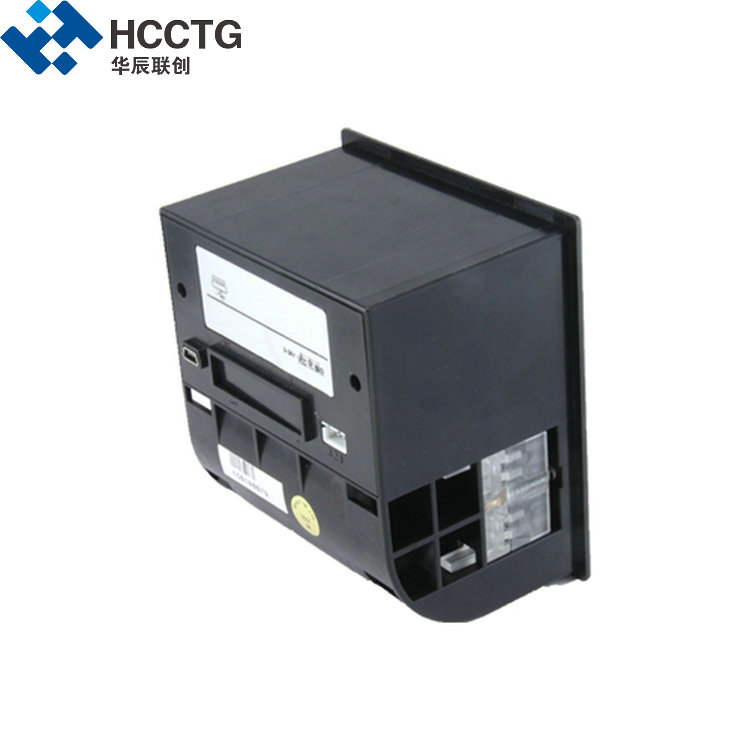

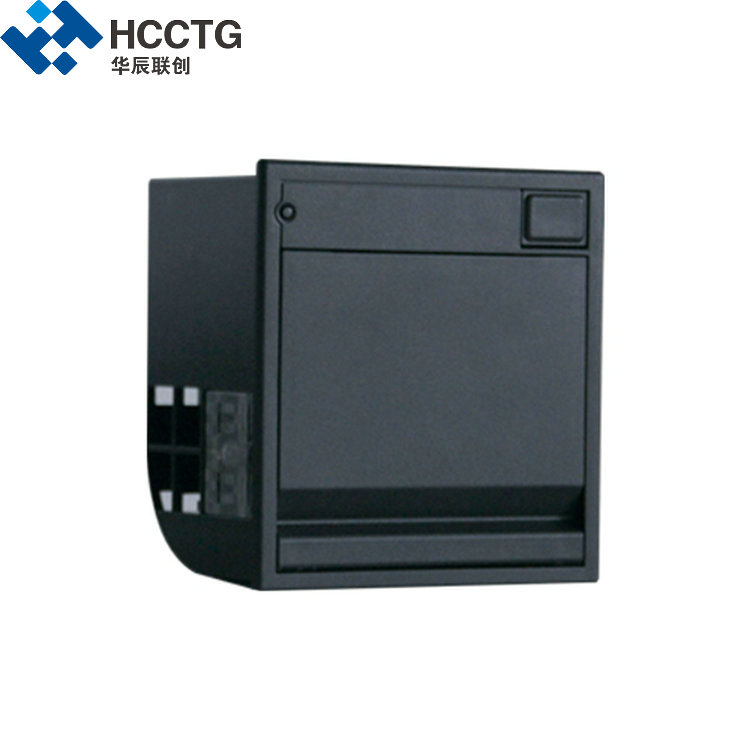

USB 58mm Embedded Thermal Receipt Printer Module For Kiosk HCC-E3
Our POS system panel thermal printer can be easily embedded in any type of instruments and meters. It is an ideal solution for applications that require immediate printing of data on paper such as medical analyzers, industrial instruments, recorders, geological analyzers, chemical analyzers, etc. Program.
Feature
Support RS232 or parallel interface

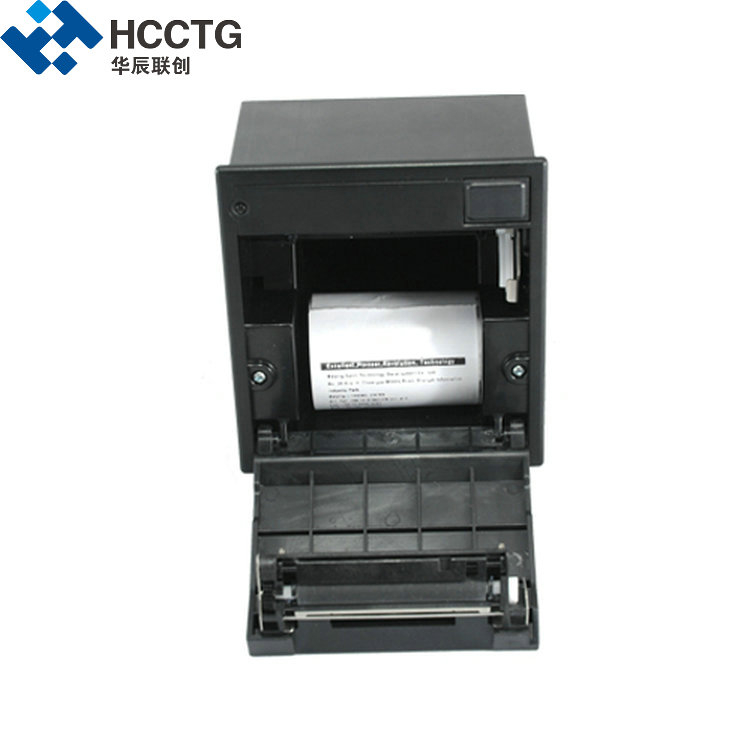

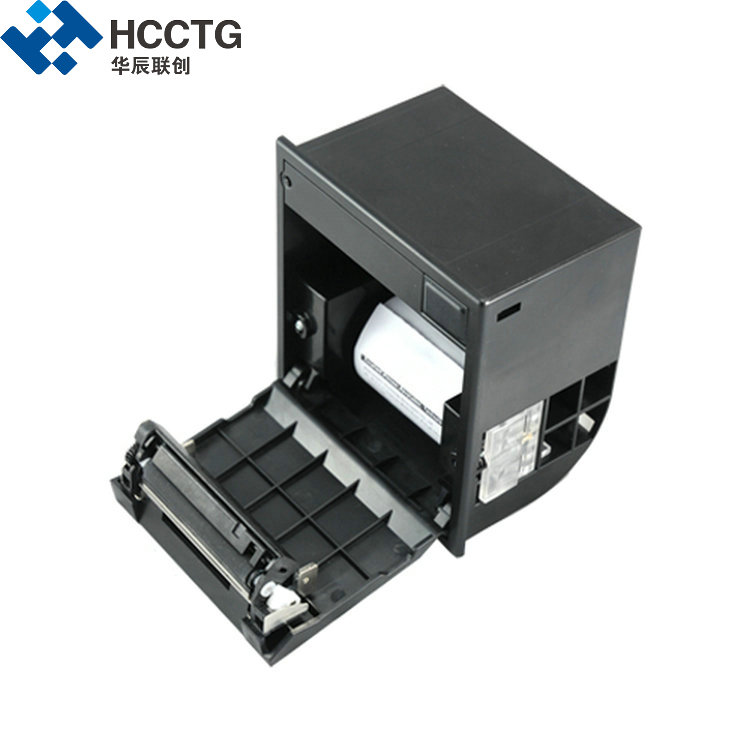

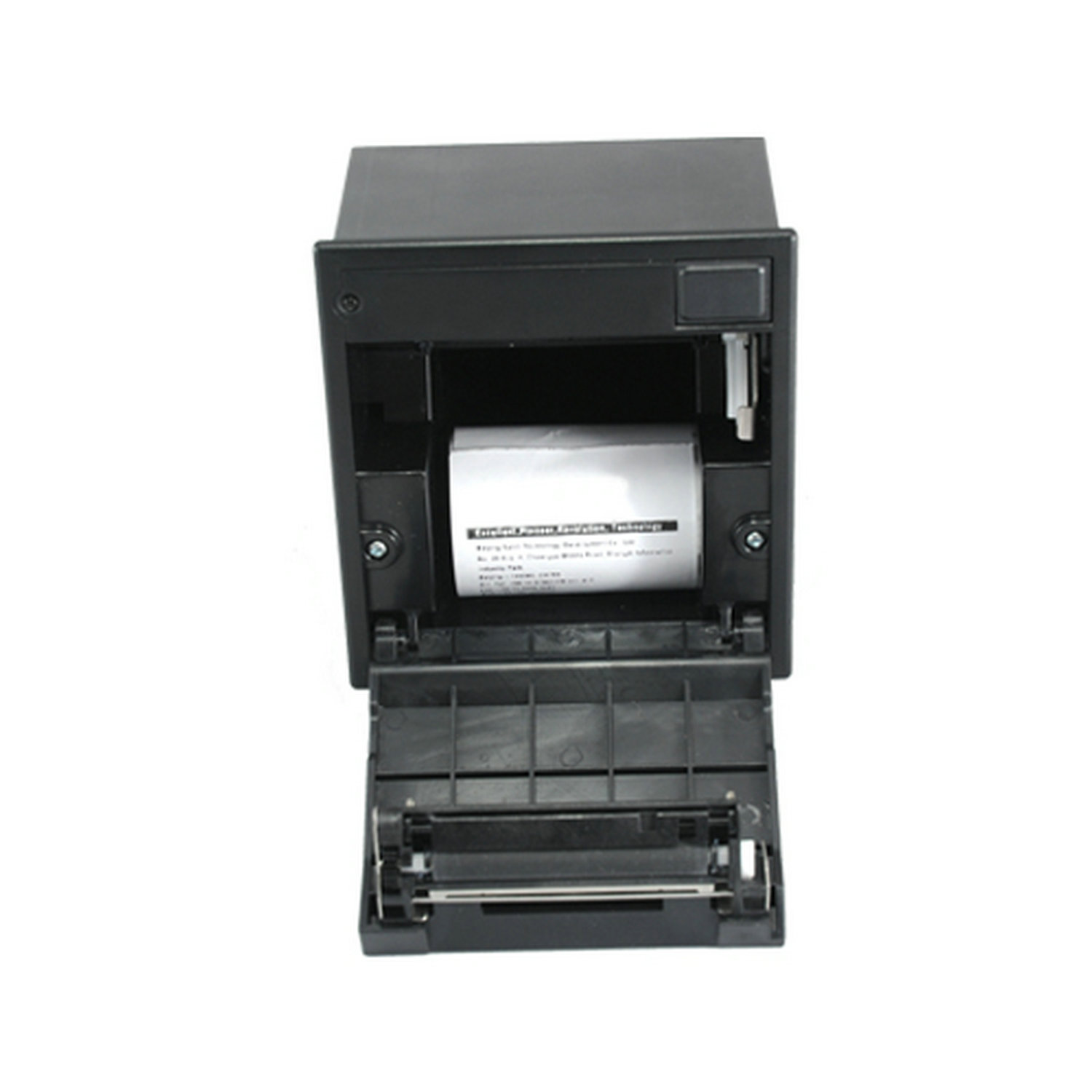

Front panel makes paper replacement easily
Easily embedded to any kind of instruments and meters
Specification
Printing Method | Thermal Line |
Resolution | 8 dots/mm, 384 dots/line |
Effective Printing Width | 48mm |
Printing Speed | 100mm/s |
Character Set | ASCII, GB18030(Chinese), BIG5 |
Print Font | ANK: 9×24, 12×24 |
Self-defined Character | Yes |
Character Per Line | 32 |
Graphic | Support bitmap downloading |
Paper End Sensor | Yes |
Paper width | 57.5± 0.5mm |
Paper roll diameter | 60mm (Max.) |
MCBF | 5 million lines |
Auto cutter type | Guillotine |
Auto cutter life | 5,000,000 cuts |
Auto cutter method | Partial cut |
Interface | RS-232/Parallel/USB/RS-485 |
Paper supply method | Drop-in Easy Loading |
Power supply: | DC9~24V±10%, 2A |
Dimension (L x W x H) | 109x101x68mm |
Weight | 185g |
Operating Temp/Humidity | 0-50°C/10%-80% |
Storage Temp/Humidity | -20-60°C / 10%-90% |
Installation port dimension (LxWxH) | 103 x 95x 65mm |
