HS-6003 adopts 2.4G intelligent frequency hopping technology and is compatible with Bluetooth 4.0 transmission.
HS-6003
HCCTG

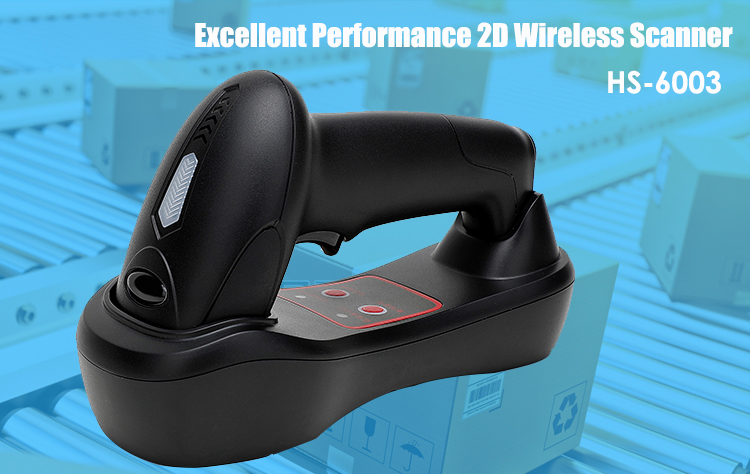

Wireless 2.4G 2D Barcode Scanner With Base Inductive Charging HS-6003
HS6003 is a 2D wireless scanning gun with excellent performance. It can accurately interpret the mainstream 1D, 2D barcodes, for mobile phone screen code can also be quickly read. In open environment, the transmission distance can reach up to 150 meters. Equipped with internal storage, can store 13 bits of data about 20,000 pieces.
Universal USB charging support: In addition to wireless induction charging, the scanner can also be charged using a universal USB charger. This means you can charge the scanner using various devices like a mobile phone charger or computer USB interface.These charging options provide flexibility and convenience in charging the barcode scanner.
Application
Supermarket/convenience store cashier desk, ticket/ticket window, chain retail, inventory management, warehousing logistics, medical and health care, manufacturing, banking and finance and other multi-type scenes.
Specification
Image sensor | 640×480 CMOS | Floodlight | White LED | |
Resolution | 640px * 480px | Focusing lamp | Red LED | |
Read code system | 1D | EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Coda bar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1 Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 | ||
2D | QR Code, Data Matrix, PDF417, Aztec, Maxicode, Hanxin code | |||
Accuracy | 1D ≥4mil 2D ≥5mil | |||
Typical | 1D EAN13 | 13mil 60-160mm | ||
Code 39 (10byte) | 5mil 50-80mm | |||
2D QR (16byte) | 20mil 30-180mm | |||
DM (20byte) | 10mil 40-80mm | |||
Sensitivity | Tilt | ± 55° | Contrast ratio | ≥30% |
Rotate | 360° | Prompt mode | Beep,LED | |
Deflection | ± 55° | Motion tolerance | 2m/s | |
Scanning mode | Trigger mode & Automatic induction mode | |||
Wireless parameters | Wireless communication | 2.4g intelligent frequency hopping technology; Bluetooth 4.0 HID/SPP/BLE | ||
Transmission | 2.4g:130-150m (open distance) 30-50m (density of visual wall) Bluetooth 4.0:15-30m (open distance) | |||
Memory | 4MB (can store 20000 barcode, 13 digit barcode) | |||
Working voltage | 3.3V | Working current | 170mA | |
Standby | 25mA | |||

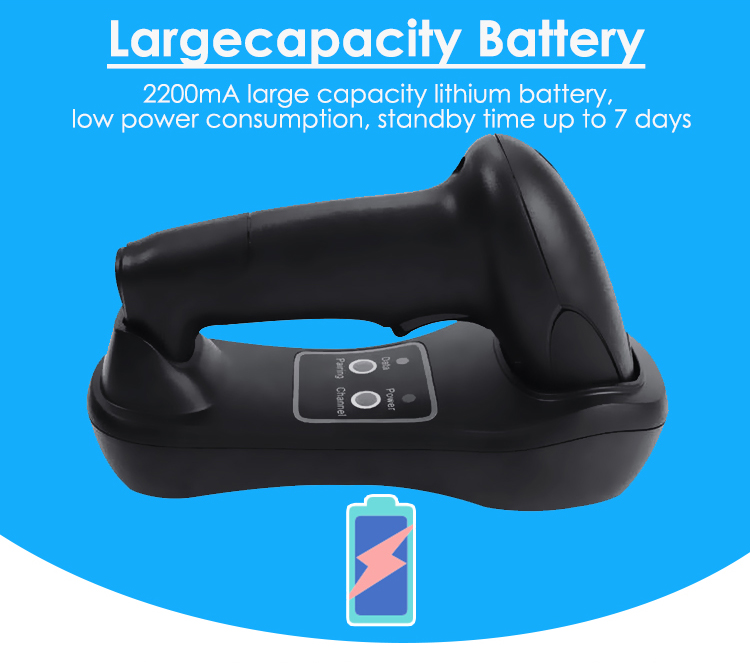

Battery parameters | Battery Specification | 2200mA lithium battery | ||
Charge time | ≤4 hours | |||
Standby time | ≥7 days | |||
Charging way | Base wireless induction charging, support universal USB charging, such as mobile phone charger, computer USB interface, etc | |||
Relative humidity | 5%~95% (RH) | Working Temperature | -20℃~+50℃ | |
Light source | 0~10000 Lux | Storage Temperature | -20℃~+70℃ | |
Fall test | 100 times /1M | IP level | IP54 | |
Electrostatic protection | +10kVDC air discharge, + 4kVDC direct discharge | |||
Product size | 164(W)*65(D)* 98(H)mm | Weight | 182g | |
Base size | 198(W)*86(D)*65(H)mm | Weight | 166g(without cable) | |
Package size | 210(W)*118(D)*109(H)mm | Weight | 520g | |
Cable standards | USB (Keyboard & virtual serial port),RS232,TTL Support one to many functions | |||
