HCC-S70 is a smart payment terminal machine, perform well just like receipt printer, scanner and camera
| Quantity: | |
|---|---|
HCC-S70
HCCTG

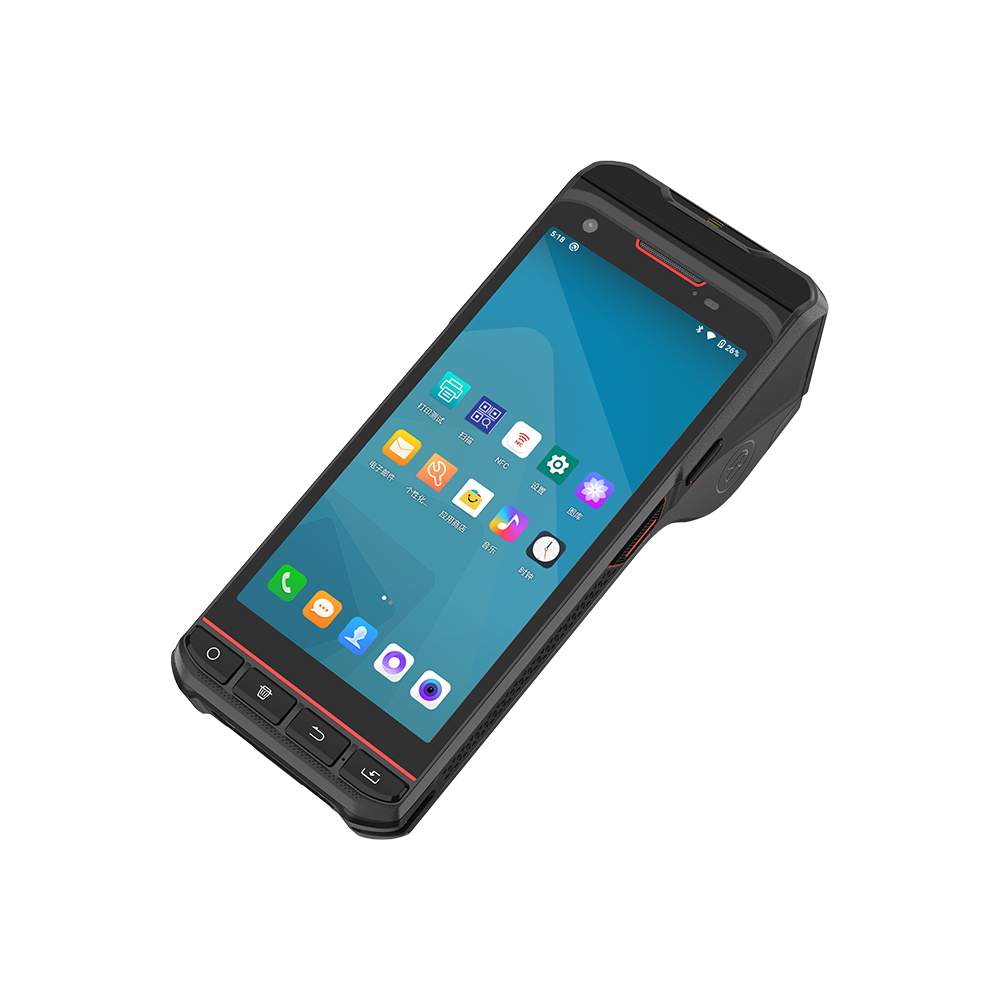

Handheld Terminal 2D Barcode Scanning With Label Printer HCC-S70
HCC-S70 The label printer integrated handheld terminal has 5.5 inch HD durable large display, Wifi and Bluetooth 5.0. It has good performance, small size, wireless design, easy to carry, and very convenient to use. Besides, this PDA product comes with Android 13, which runs smoothly and stably. Very suitable for warehouse management and small businesses.
Features
Android 13 system
Sticker one-piece printing
5.5-inch HD Durable large Display
Barcode scanner and label printer all in one
Specifications
Performance | |
CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor |
RAM+ROM | 2GB+16GB Supports up to 4GB+64GB |
Expand memory | Micro SD(TF) Supports up to 128GB |
System | Android 13 |
Data communication | |
WLAN | Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol |
WWAN | 2G:GSM (850/900/1800/1900mhz) |
3G:WCDMA (850/900/1900/2100mhz) | |
4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 | |
Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
GNSS | Support Gps, Galileo, Glonass, Beidou |
Data collection | |
Barcode scanning(Optional) | |
2D Imager scanner | Newland E483 Honeywell N5703 N6703, 6602 |
2D Symbologies | PDF417, Micro PDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, Maxicode, Hanxin Code,etc. |
1D Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc. |
Thermal sticker printer | |
Printing speed | 70mm/s |
Print points | 384 dots |
Paper width | 58mm |
Paper diameter | 35mm |
Paper type | Support for Sticker / label Black mark printing or receipt printing |
Camera | |
Rear camera | 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
Front camera | 2MP color camera |
NFC (optional) | |
Frequency | 13.5MHz±7kHz |
Protocol | Support ISO14443A/B, 15693 agreement |
Distance | 0-5cm |
Security module | Radio frequency technology |
Radio frequency technology | Comply with ISO/IEC 14443 type B standard, GA450-2003 General Technical Requirements for desktop ID card Reader, 1GA450-2003 General Technical Requirements for desktop ID Card Reader Amendment No. 1 (draft) |
Language/input method | |
Input | English,Pinyin,Five strokes,Handwriting input,Support soft keypad |
Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc. |
Physical parameter | |
Dimensions | 179mm * 74.5mm * 22.5mm (the thinnest) 49.5mm (the printing part) |
Weight | ＜500g (Depends on device function configuration） |
Display | 5.5 inch IPS color display with resolution 720*1440 |
TP | Corning gorilla glass, Supports multi-touch Supported gloves and wet hands |
Battery capacity | Rechargeable polymer battery 7.6V 2750mAh (equal to 3.8V 5200mAh), removable |
Standby time >350 hours | |
Working time > 12 hours | |
Charging time 3-4H, Using standard power adapter and data cable | |
Expansion Card slot | Nano SIM card * 1 , TF card * 1, PSAM * 2 (optional) |
Communication interface | Type-C USB x 1, OTG |
Audio | Speaker (mono), Microphone, Earpiece |
Keypad | Silicone button: Power button, Volume +/- button, Scan button × 2 |
Sensors | Gravity sensor, Light sensor, Proximity sensor, Vibration motor |
User environment | |
Operating temperature | -20℃ - 55℃ |
Storage temperature | -40℃ - 70℃ |
Environment humidity | 5%RH--95%RH(no condensation) |
Drop specification | 6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature |
Rolling test | 0.5m rolling for 6 sides |
Sealing | IP54 |
Accessories | |
Standard | Adapter, Data cable, Protective film, Instruction manual |
