OCR Recognition ICAO9093 Contactless Reader Epassport Reader PPR100B

Name: OCR Recognition ICAO9093 Contactless Reader Epassport Reader PPR100B
Brand: HCCTG
SKU: 507006177
Rating: 5.0 (44 reviews)

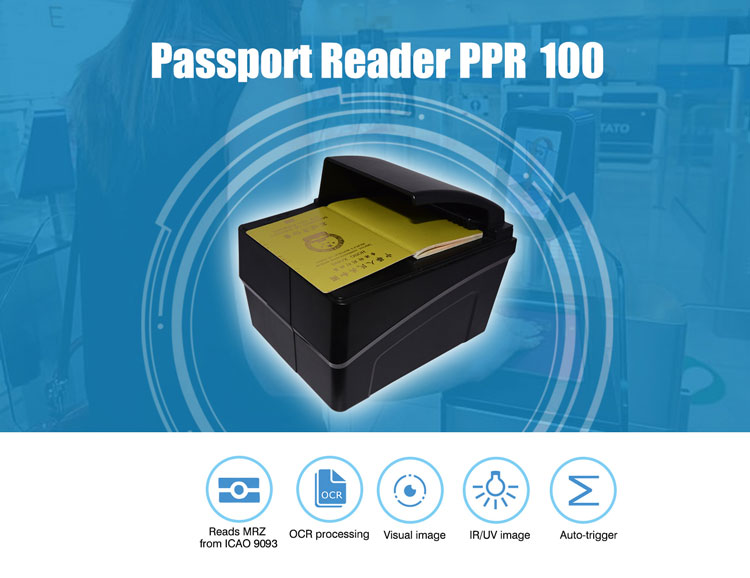

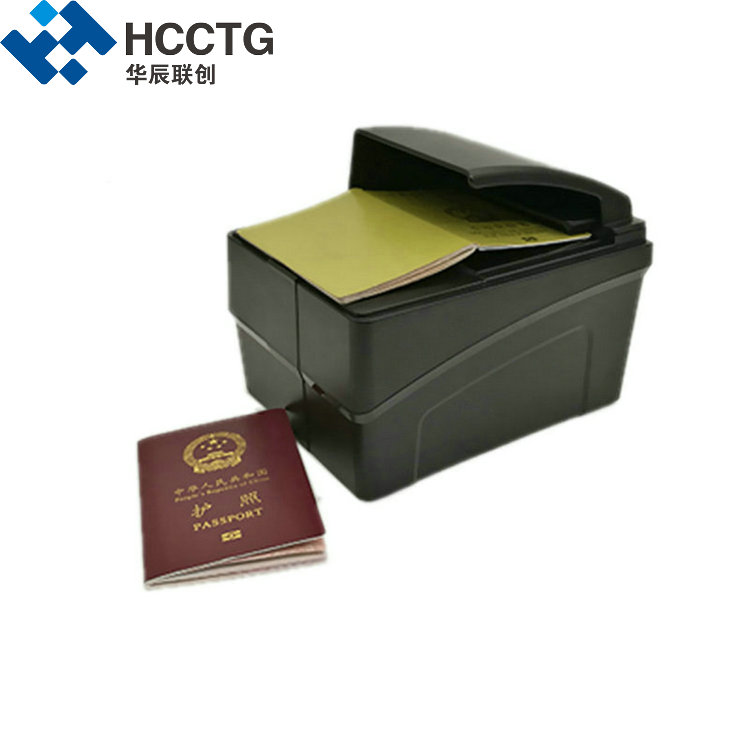

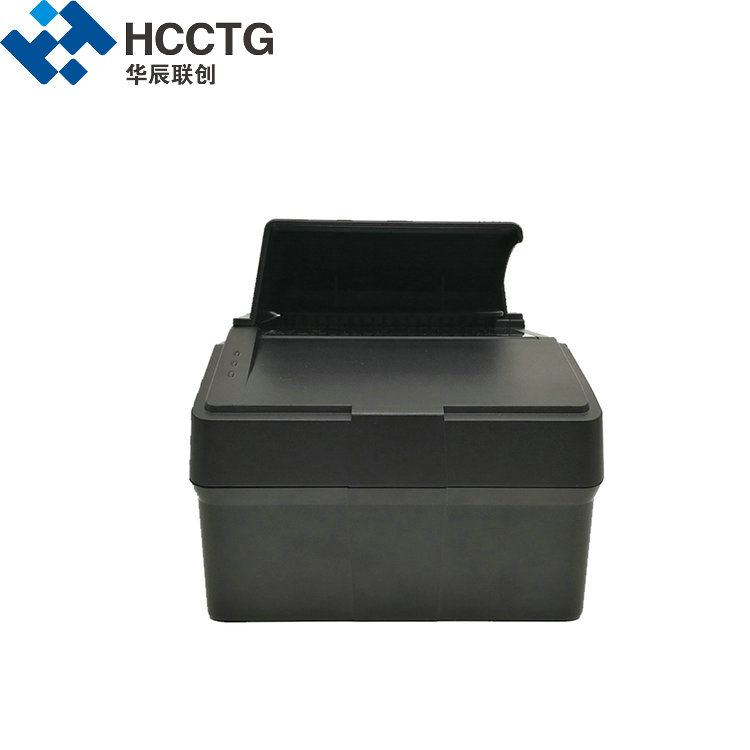

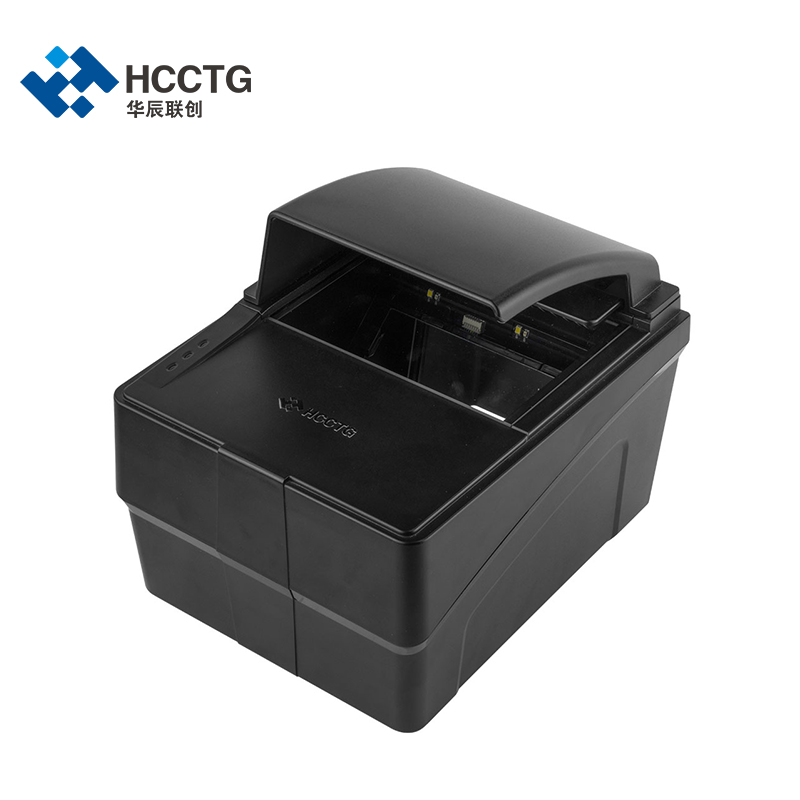

PPR100B is a full-page, multi-illumination, e-Passport reader and contactless reader.

OCR Visa NFC Smart Card Electronic Passport Reader PPR100B

PPR100B provides perfect solutions for scanning passport, e-passport, visa and other, which make it can be applied to variety of industries.

Features ：

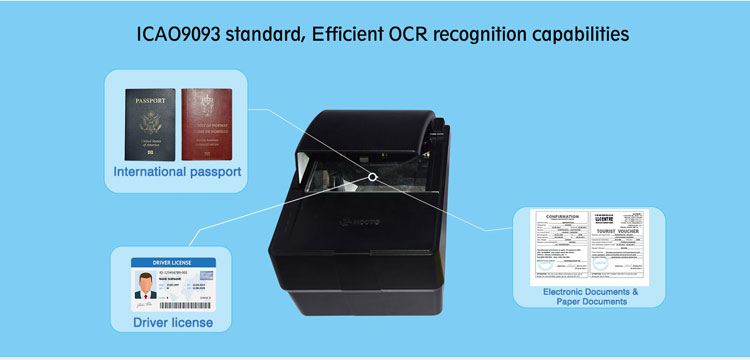

Support the compliance of ICAO9093 standard Part1-4 specification documents and efficient OCR recognition capabilities;

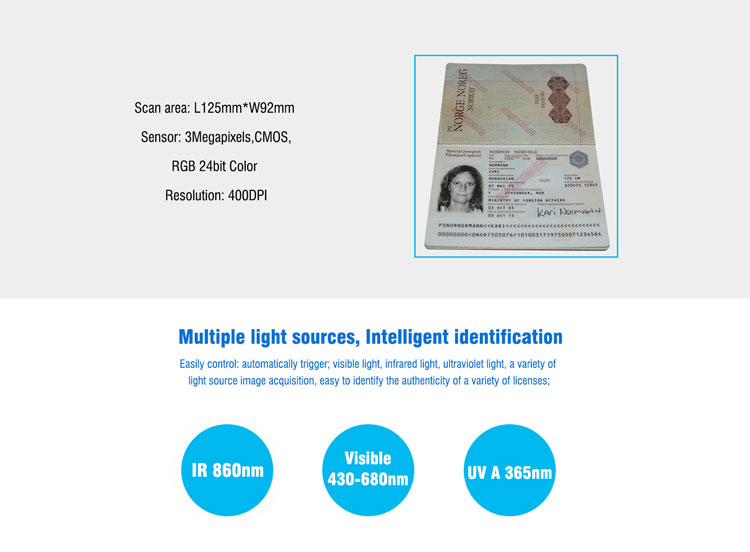

A variety of light sources ----- visible light, infrared light, ultraviolet light, a variety of light source image acquisition, easy to identify the authenticity of a variety of licenses;
Easily control: automatically trigger;
Support Firmware Up gr addable ,SDK offered.

Specification

Imaging	Scan area：L125mm*W92mm Sensor:3Megapixels,CMOS, RGB 24bit Color Resolution:400DPI With the horizontal platform
Illuminations	IR 860nm Visible 430-680nm UV A 365nm
Indicator	3 status indicator LED s(for Power Ready and Error)

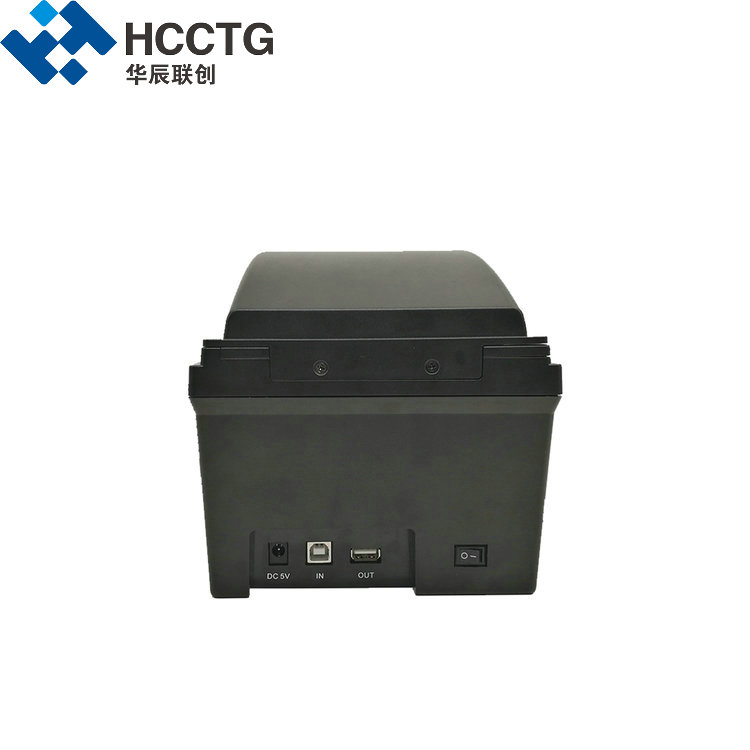

Host	Full speed usb2.0 Power Supply 5V DC DC JK5.5

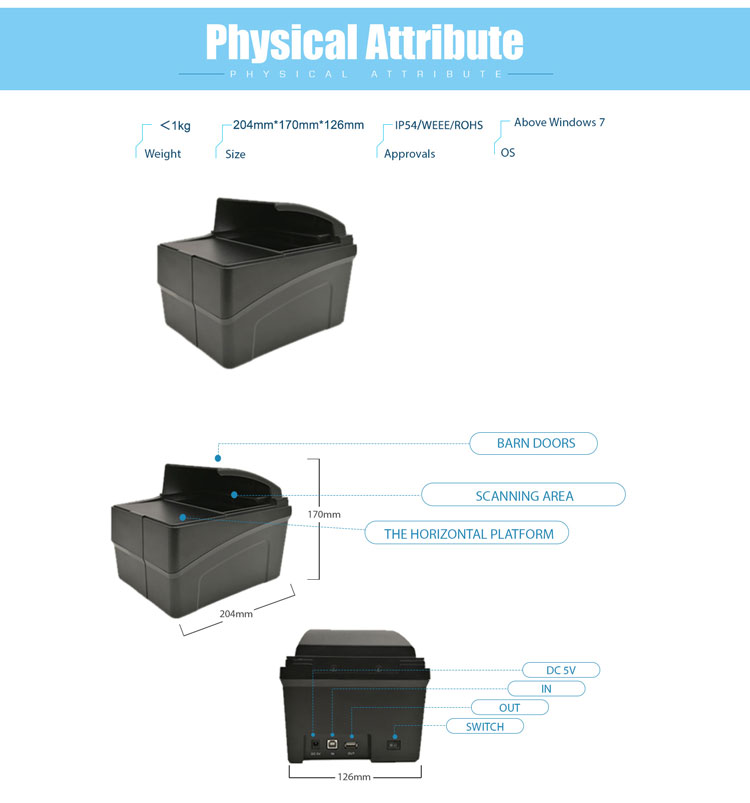

Size (L * W * H)	204170126mm
Weight	＜1kg
Environmental	Temperature[°C]:0 to 40 Humidity [%]: 20-80 (non- condensing)
Approvals	IP54(Dust Proof) WEEE/ROHS
Recommended Computer Configuration	CPU:2 GHz Memory: 2G DRAM Hard disk:100G OS: above Windows 7 / Android
