HS-6603B can rapidly add 1D and 2D barcode data to documents, spreadsheets, and databases.
| Quantity: | |
|---|---|
HS-6603B
HCCTG

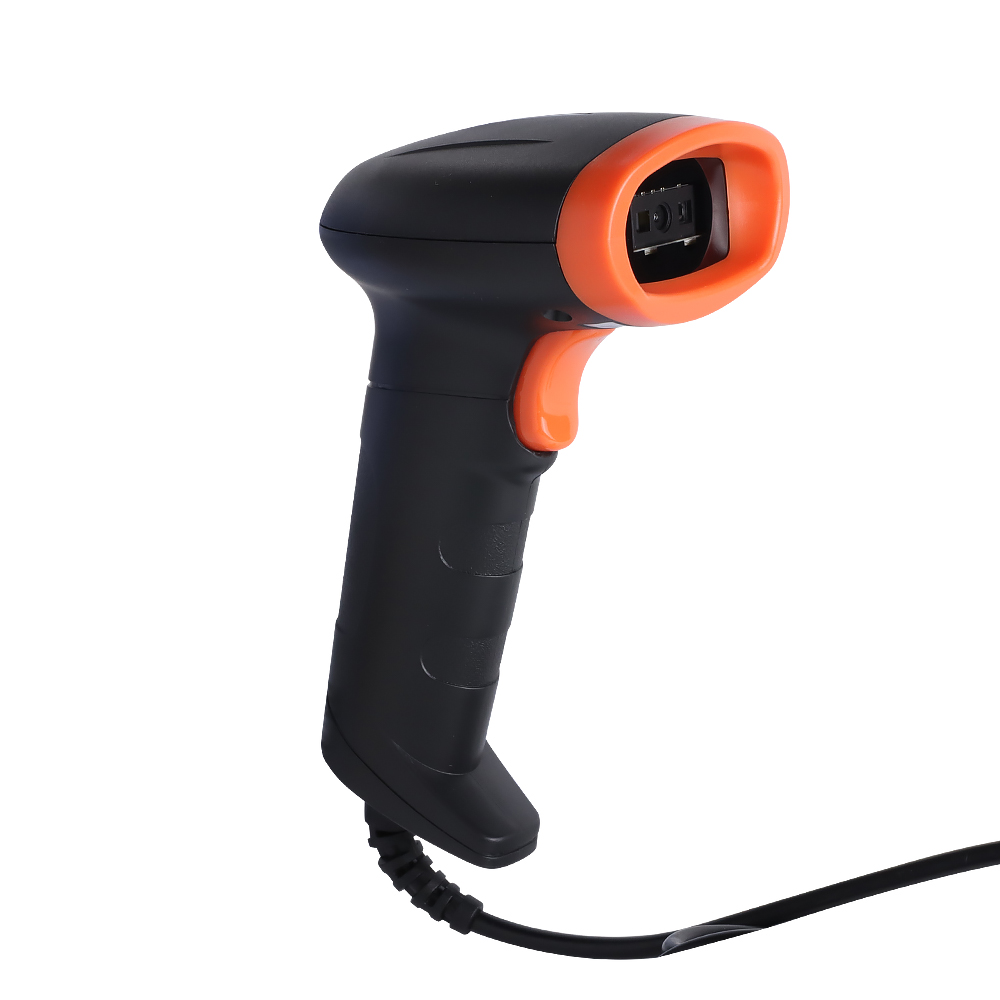

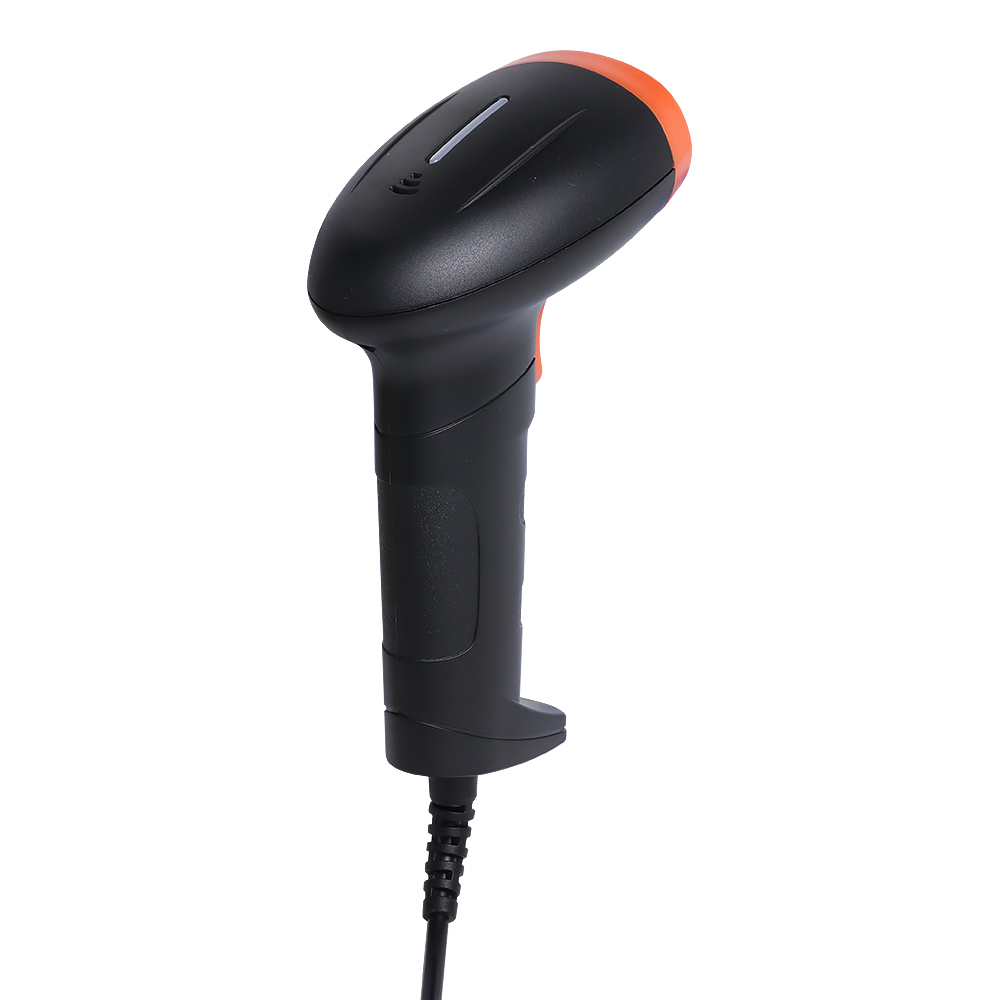

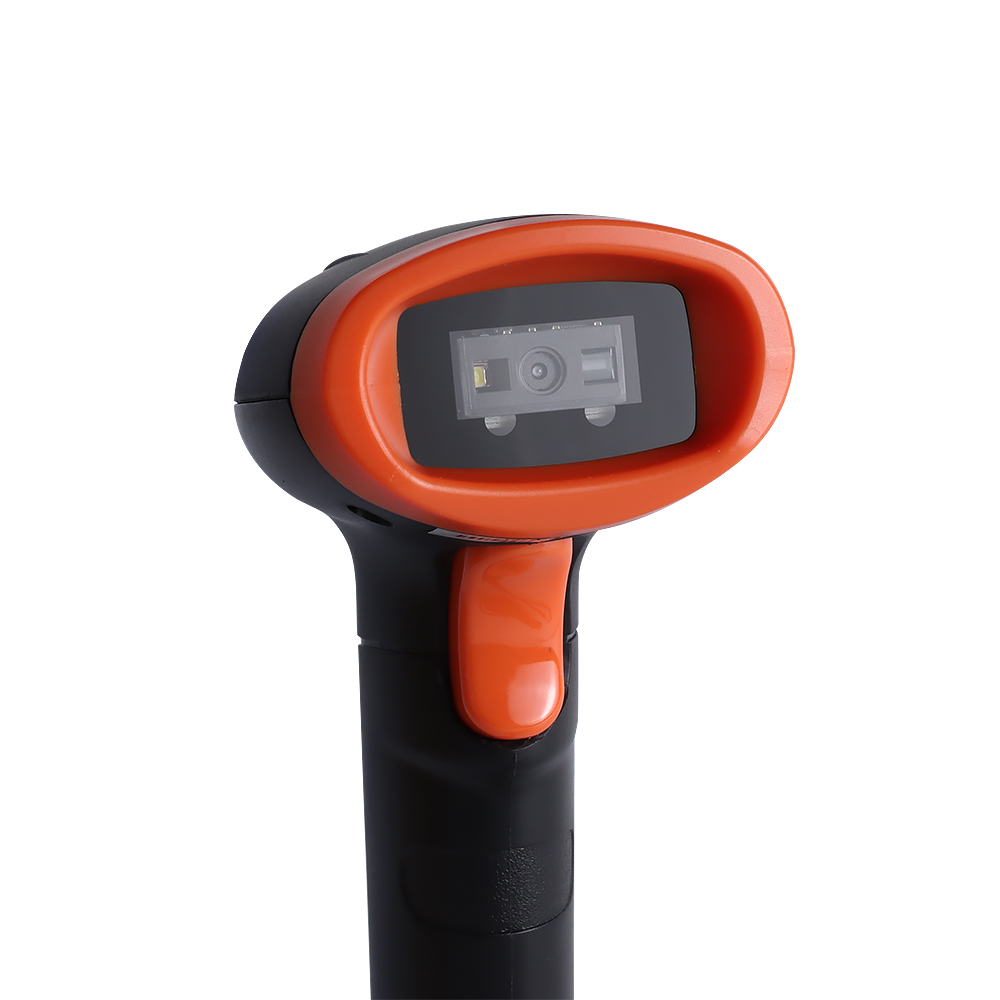

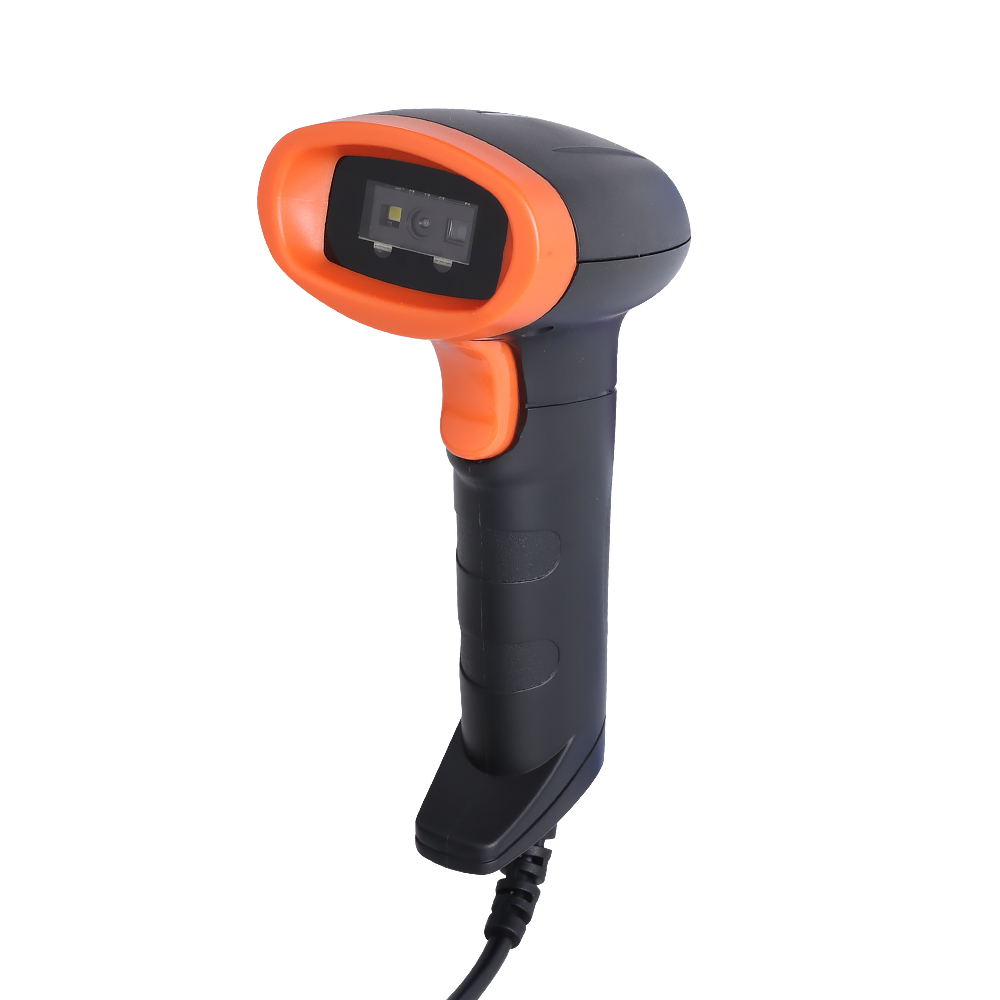

Industrial Handheld 2D Barcode Scanner For Mobile Payment HS-6603B

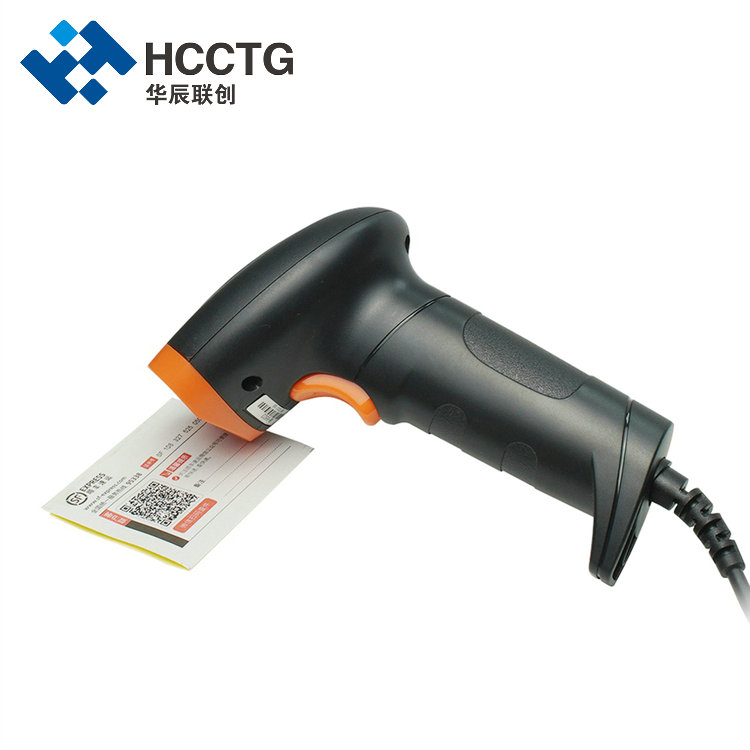

The HS-6603B isa high-performance scanner that can easily read all kinds of1D barcodesand read2D QR barcodesat high speed.It also has a very high scan rate for linear barcodes. Forpaper barcodesandbarcodes on the display, the HS-6603B can also be easily scanned for a variety of scanning applications.
No matter if you run a small business, a sales shop, or work in a warehouse, each scanner can organize and catalog your barcode depending on your needs.
Specification
Image sensor | 640×480 CMOS | Floodlight | White LED | ||
Resolution | 640px * 480px | Focusing lamp | Red LED | ||

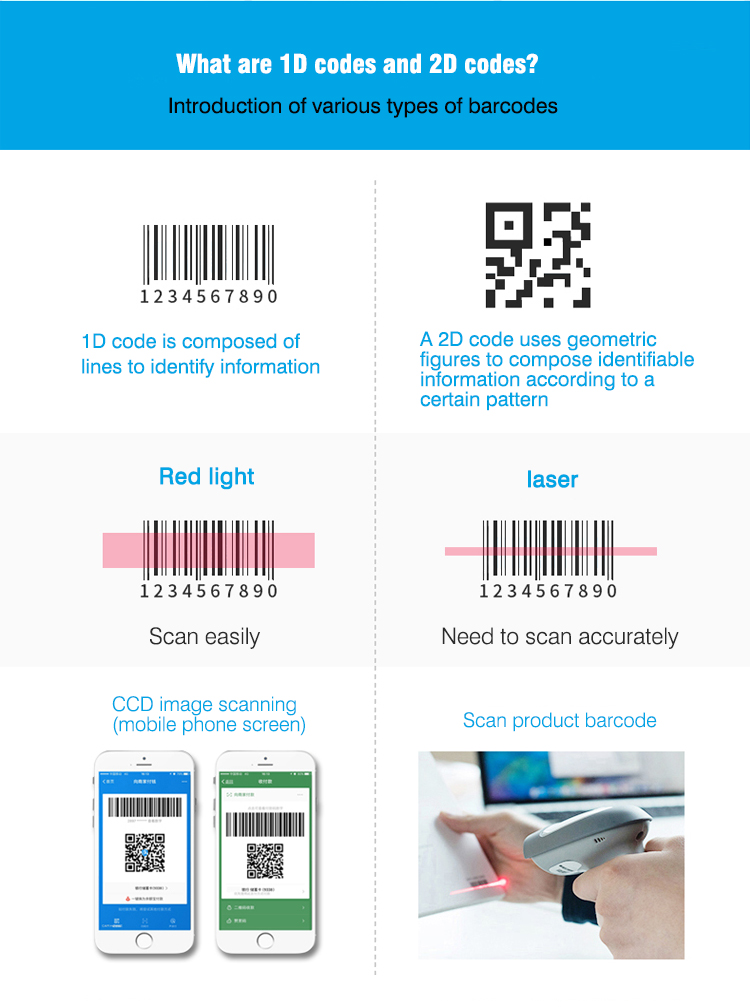

Read code system | 1D | EAN-8, EAN-13, UPC-E, UPC-A,ISBN，ISSN，Code128, Code 39, Code 93, Code 11, Codabar，Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25,Plessey, MSI-Plessey | |||
2D | QR Code,Micro QR, Data Matrix,PDF417 | ||||
Accuracy | ≥5mil | ||||
Typical | EAN-13 | 5mil 45mm~130mm | QR Code | 15mil 19mm~170mm | |
| 13mil 45mm~230mm |
| 30mil 30mm~260mm | ||

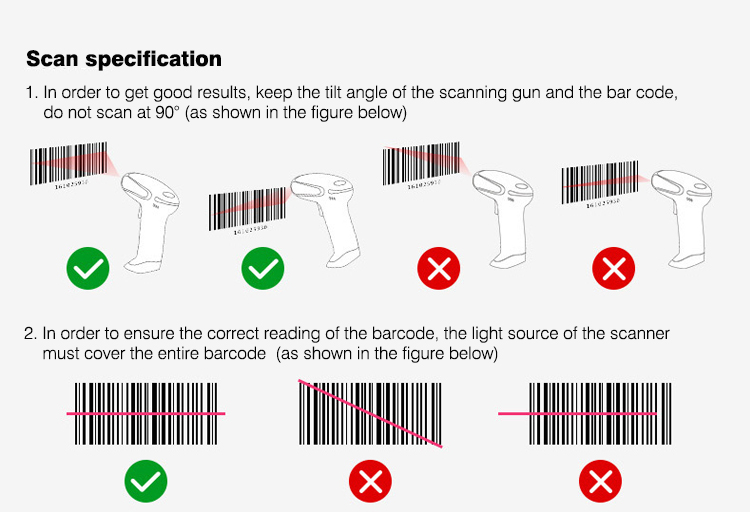

Sensitivity | Tilt | ± 55° | Contrast ratio | ≥20% | |
Rotate | 360° | Field of | level | 36° | |
Deflection | ± 55° |
| vertical | 27° | |
Prompt mode | Beep,LED | ||||
Reading mode | Trigger mode, Induction mode, Continuous mode, Command mode,Batch mode | ||||
Setting method | 1.Scan Settings code Settings | Program update | Data connection updated online | ||
Data interface | USB KBW,USB CDC,USB HID-POS,RS 232,TTL | ||||
Communication interface | USB,RS 232,TTL 232 | ||||
Working voltage | 5V | Working current | 150mA | ||
| Standby current | 70mA | |||
Relative humidity | 5%~95% (No condensation) | Working Temperature | -20℃~+60℃ | ||
Light source | 0~100,000LUX | Storage Temperature | -40℃~+80℃ | ||

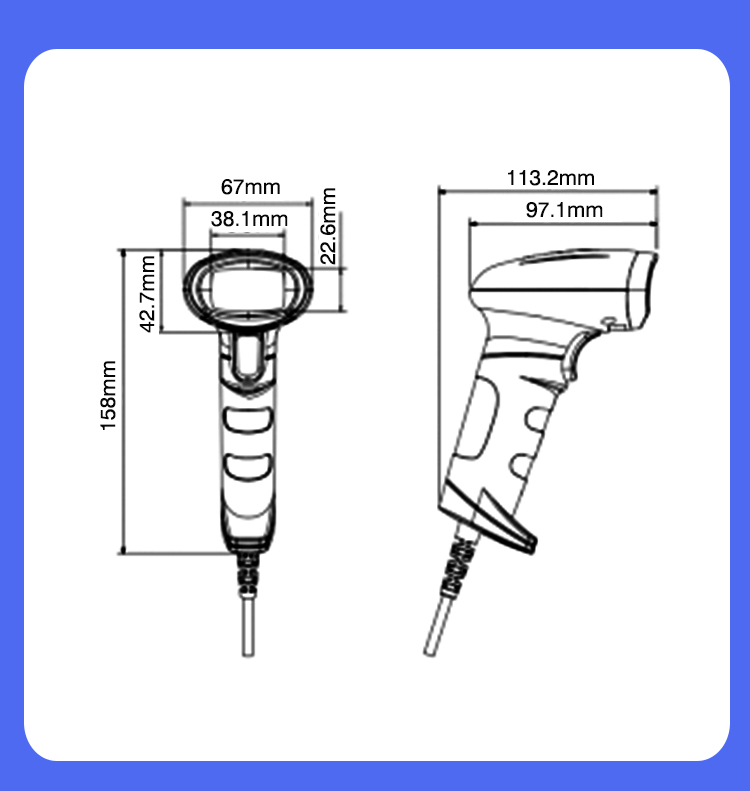

Appearance size | 67(W)*113.2(D)*158(H) mm | Weight | 175g | ||
Package size | 205*105*80 mm | Weight | 245g | ||
Parts | cable(Option 1):USB / RS 232 / TTL | ||||
