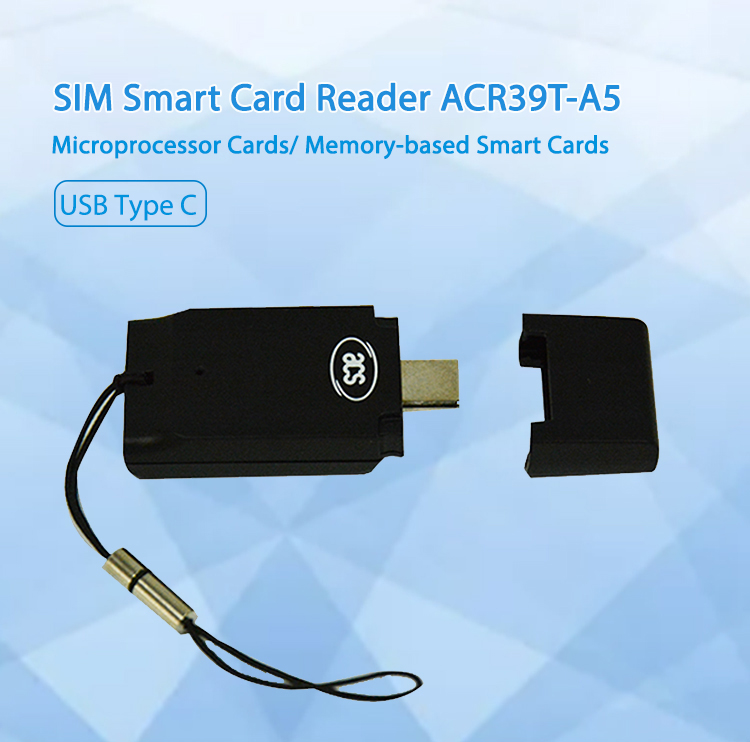

ACR39T-A5
HCCTG
The ACR39T-A5 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and works well with most memory cards and microprocessor cards with the T=0 and T=1 protocol. It also features a USB Full Speed interface (with USB Type C connector) and a smart card read/write speed of up to 600 Kbps. This makes it ideal for a broad range of solutions, such as Physical and Logical Access Control, Digital Signature, and Online Banking.
Features
USB 2.0 Full Speed Interface
USB Type C Connector
Plug and Play – CCID support brings utmost mobility

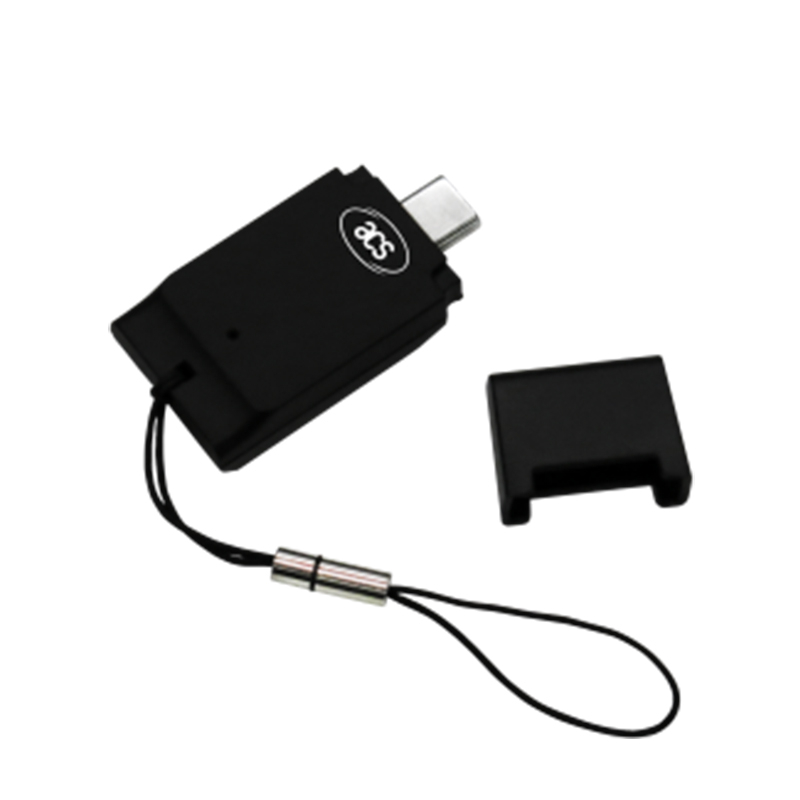

Includes protective USB cap
Smart Card Reader:
Contact Interface:
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) SIM-sized cards
Supports microprocessor cards with T=0 and T=1 protocol
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)

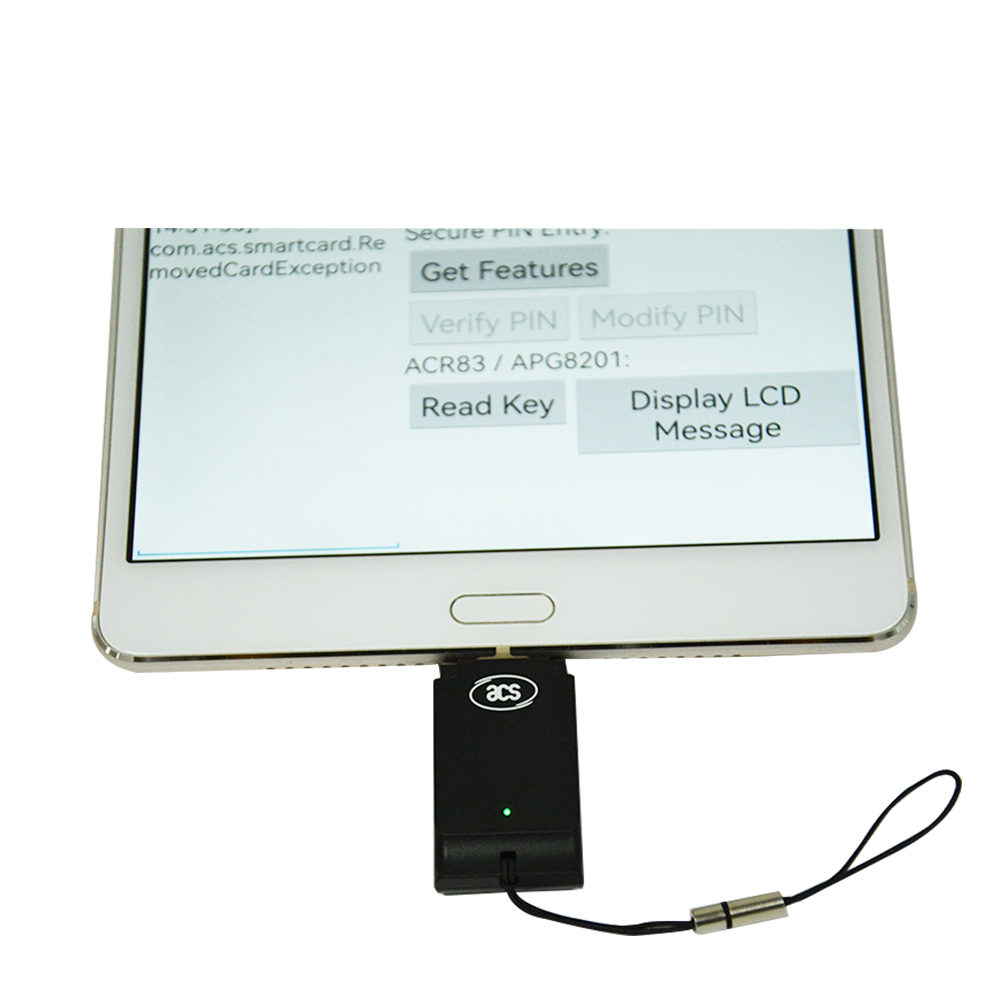

Supports Android 3.1 and later1
Specification
USB Host Interface | |
Protocol | USB CCID |
Connector Type | Standard Type C |
Power Source | From USB port |
Speed | USB 2.0 Full Speed (12 Mbps) |
Supply Voltage | 5 V |
Contact Smart Card Interface | |
Number of Slot | 1 SIM-sized Card Slot |
Standard | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50 mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.80 MHz |
Card Connector | Contact |
Card Insertion Cycles | Min. 10,000 (Min. 30,000 upon request) |
LED | Green |
PC-linked Mode | PC/SC,CT-API (through wrapper on top of PC/SC) |
Operating Conditions | |
Temperature | 0°C to 60°C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |

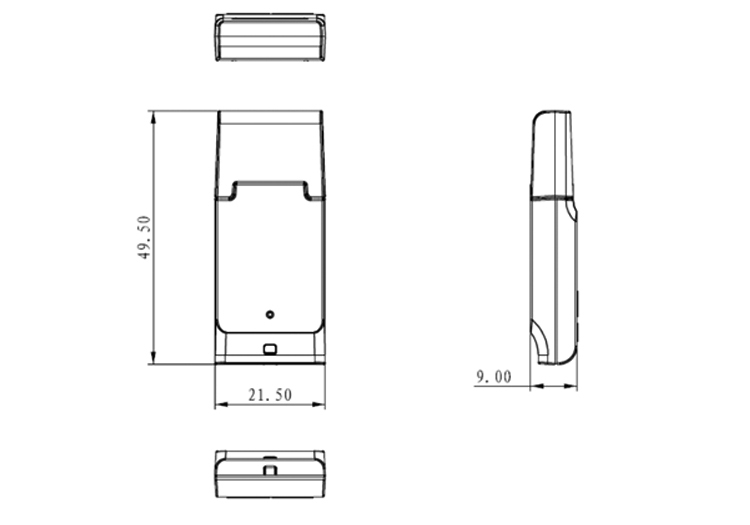

Dimensions | 49.5 mm (L) × 21.5 mm (W) × 9.0 mm (H) |
Weight | 7g |
Color | Black |

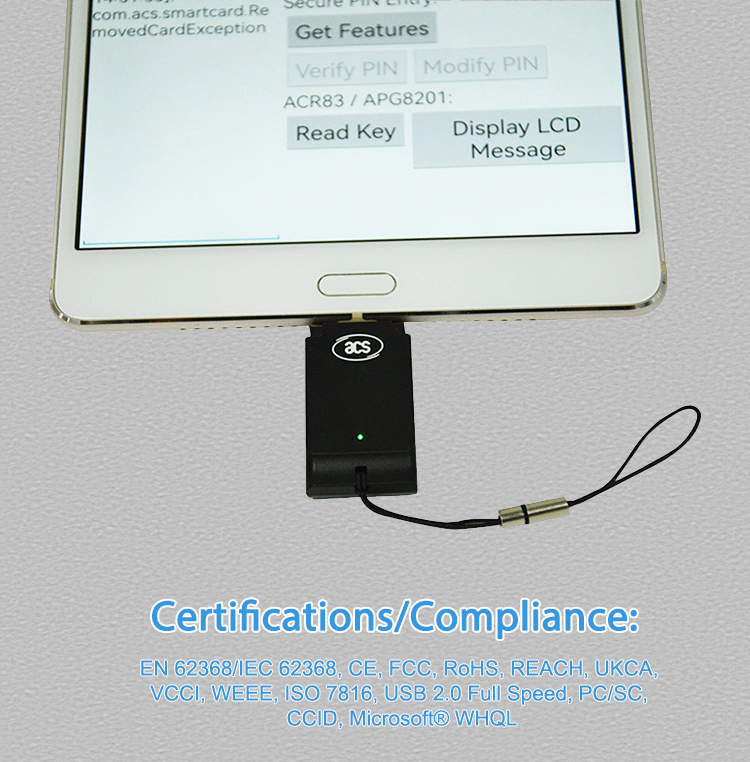

Certifications/Compliance | EN 62368/IEC 62368, CE, FCC, RoHS, REACH, UKCA, VCCI, WEEE, ISO 7816, USB 2.0 Full Speed, PC/SC, CCID, Microsoft WHQL |
Device Driver Operating System Support | Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 Linux, Mac OS, Solaris, Android 3.1 and later |
