MPR100 revolutionizes the way transactions occur by seamlessly integrating magnetic stripe and IC card reading capabilities into one versatile device. Through its convenient Bluetooth connection with mobile communication devices, this cutting-edge technology enables effortless mobile payments.
MPR100
HCCTG
Bluetooth Mobile Card Reader Smart MPOS For Business
MPR100 is with a user-friendly interface, it empowers mobile devices to read an extensive range of cards, including credit cards, debit cards, signature gift cards, membership cards, driving licenses, and ID card badges, among others. The device ensures swift and secure payment processing, allowing users to complete transactions quickly and with utmost confidence.

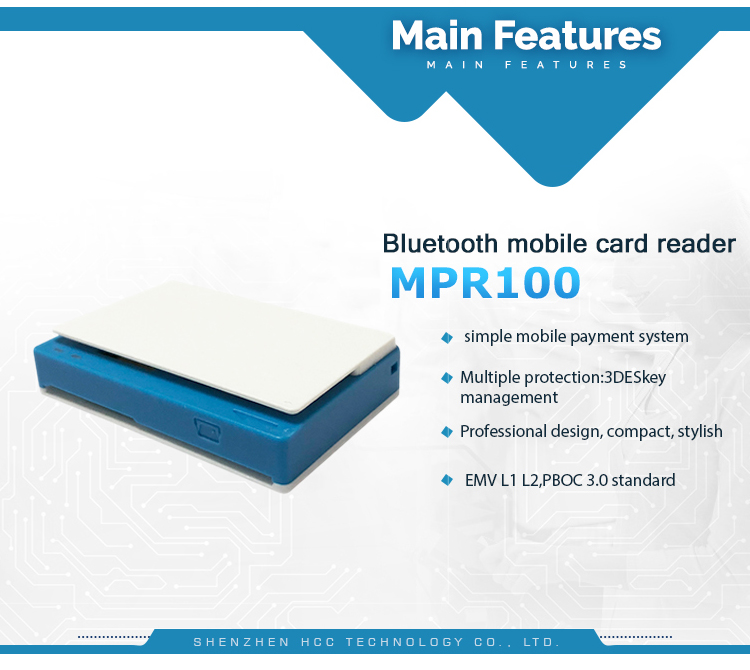

Features:
Multiple protection: 3DESkey management
LED lights: Light after start up flashing, normally on after connecting the bluetooth. Charging status display red, green charging full display.
Safe and simple: Security algorithms, hardware encryption, client and hardware perfect match just pay a brush. Support online upgrade.
Inter bank real-time: Real-time debit transactions, a variety of business real-time arrival.
Specification

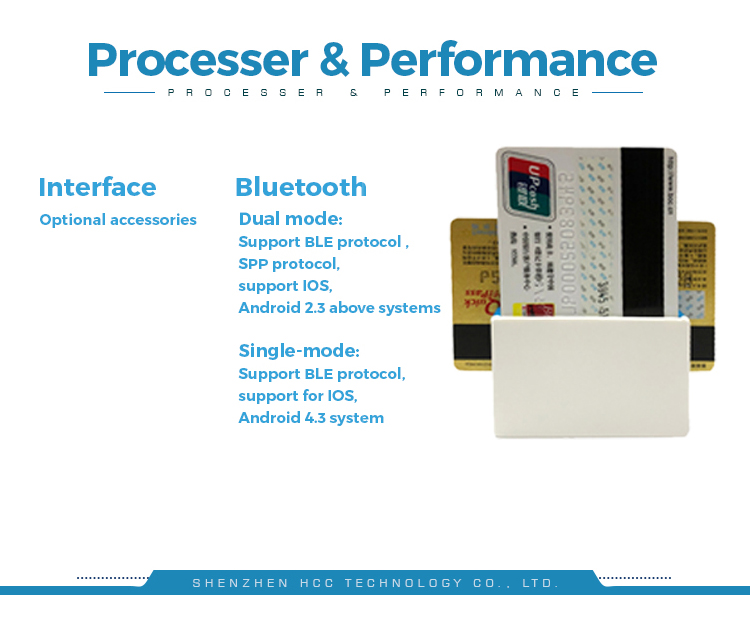

Interface | Bluetooth |
Optional accessories | Dual mode:Support BLE protocol , SPP protocol, support IOS, Android 2.3 above systems Single-mode:Support BLE protocol, support for IOS, Android 4.3 system |
Color | Blue (color, logo can be customized) |
Operating temperature | 0℃ ~ 55℃ (32℉ ~ 131℉) |
Battery Capacity | 3.3V,110mAh |
Rated voltage | 5V DC |
Peak Current: | 80mA , 2h |
Operating Current | 30mA |
Standby Current | 23mA |
Standby time | 6h(The default is not connected 3min automatic shutdown) |
Magnetic card | |
Tracks | 1/2/3 track select able |
Head life | About 50 million times |
Card speed | 3 to 6 inches/sec |
Card Compatibility | ISO 7811 |
IC card | |
Card Compatibility | ISO7816- (1-4) (T = 1, T = 0) |

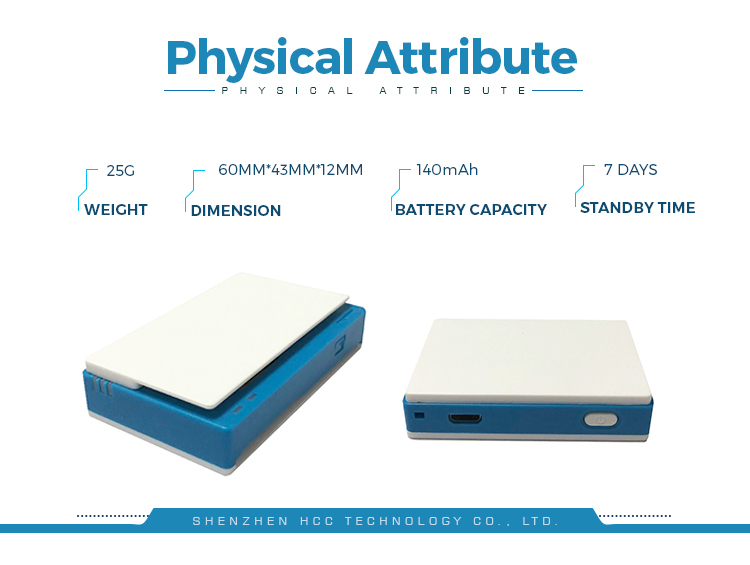

Dimensions | 60mm(L)*43mm(W)*12mm(H) |
