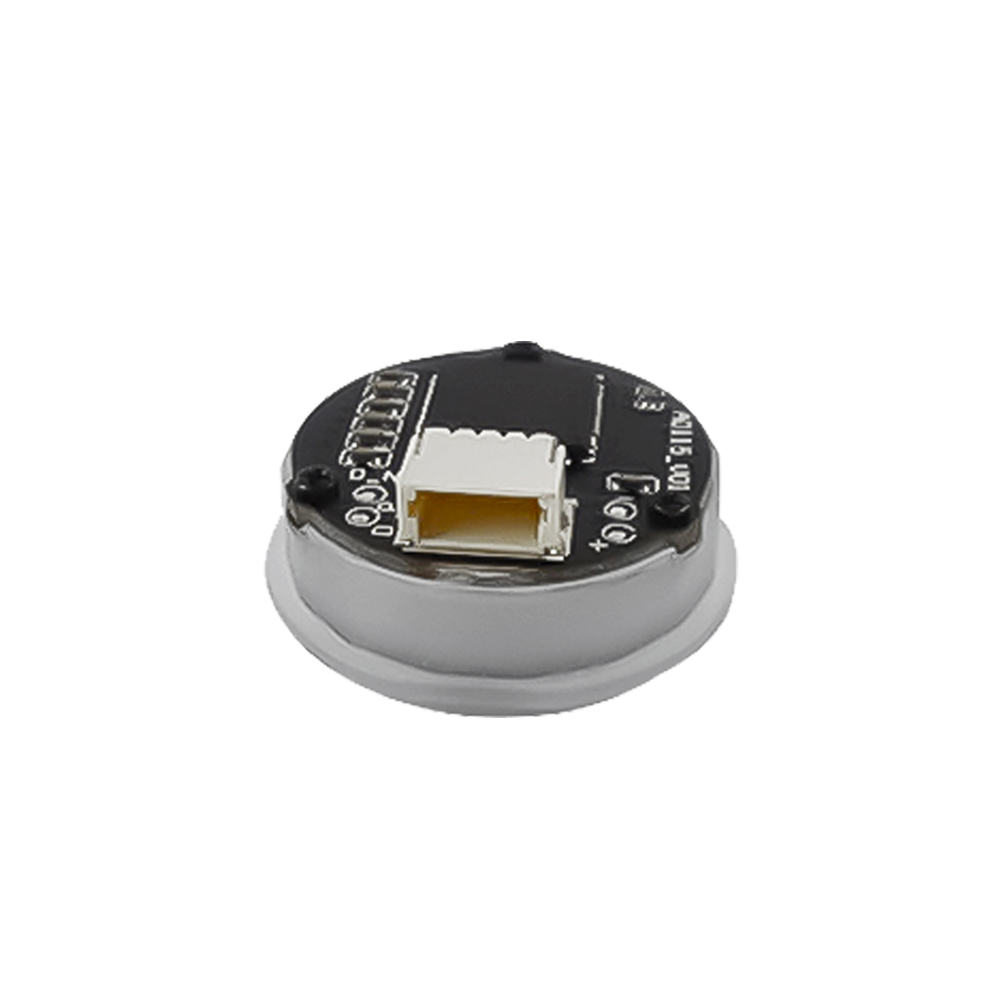

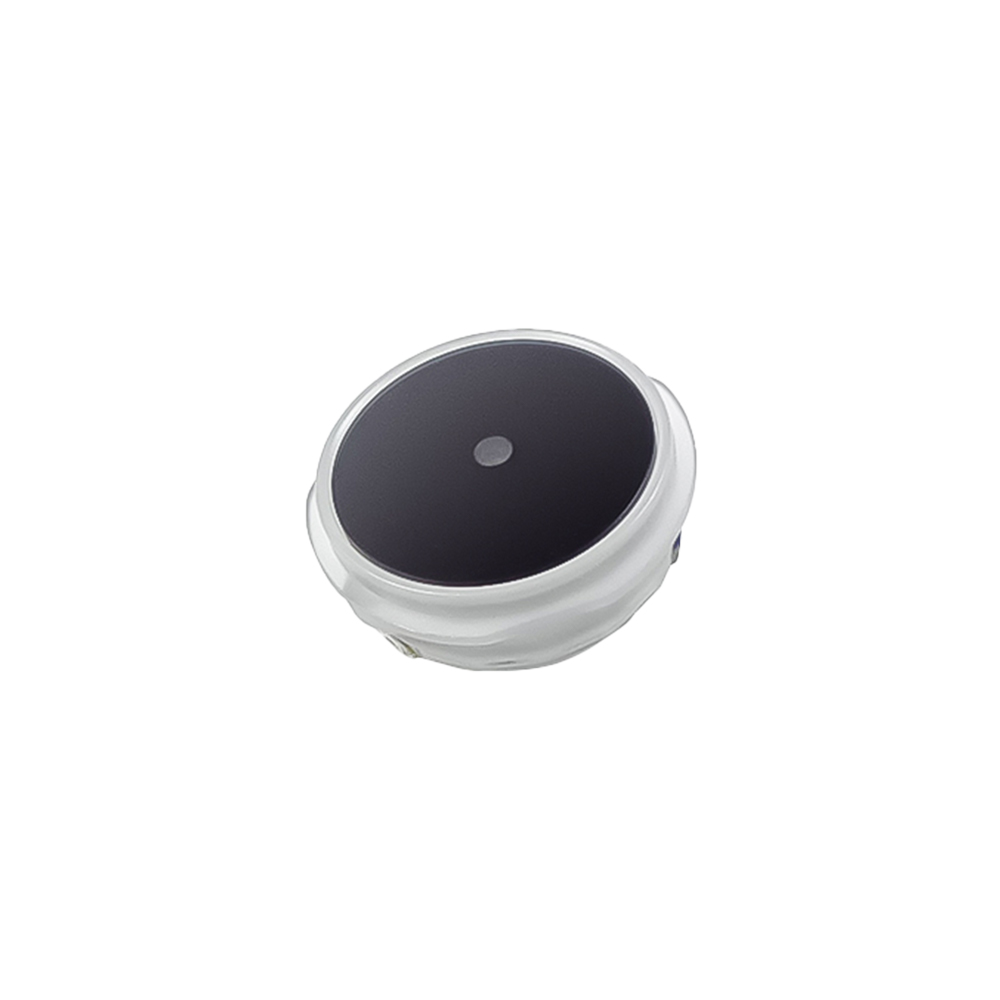

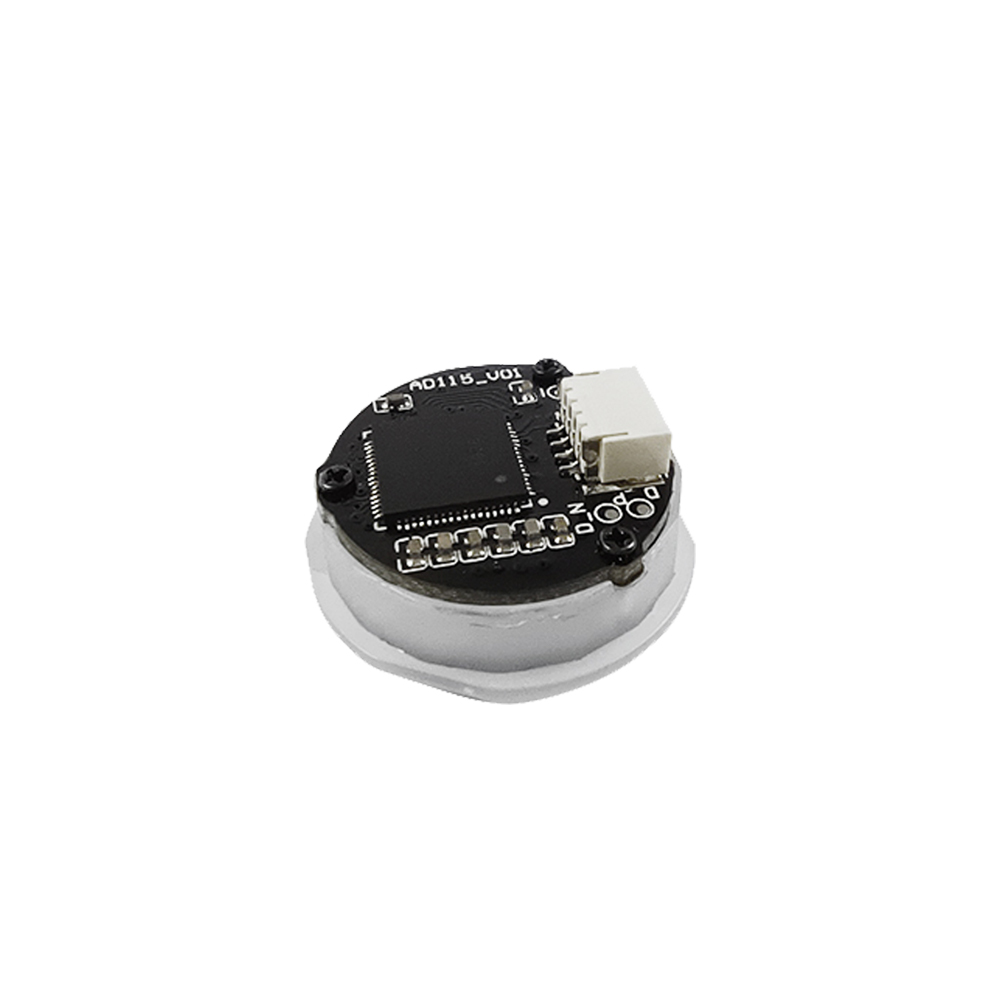

HS-207M is a highly integrated, excellent performance of embedded two-dimensional scanning engine.
Availability: | |
---|---|
Quantity: | |
HS-207M
HCCTG
The HS-207M packs powerful scanning performance into a compact design. With its advanced scanning technology, this embedded engine delivers exceptional accuracy and speed, ensuring reliable scanning of both 1D and 2D barcodes. Experience superior performance and efficiency in your scanning applications.

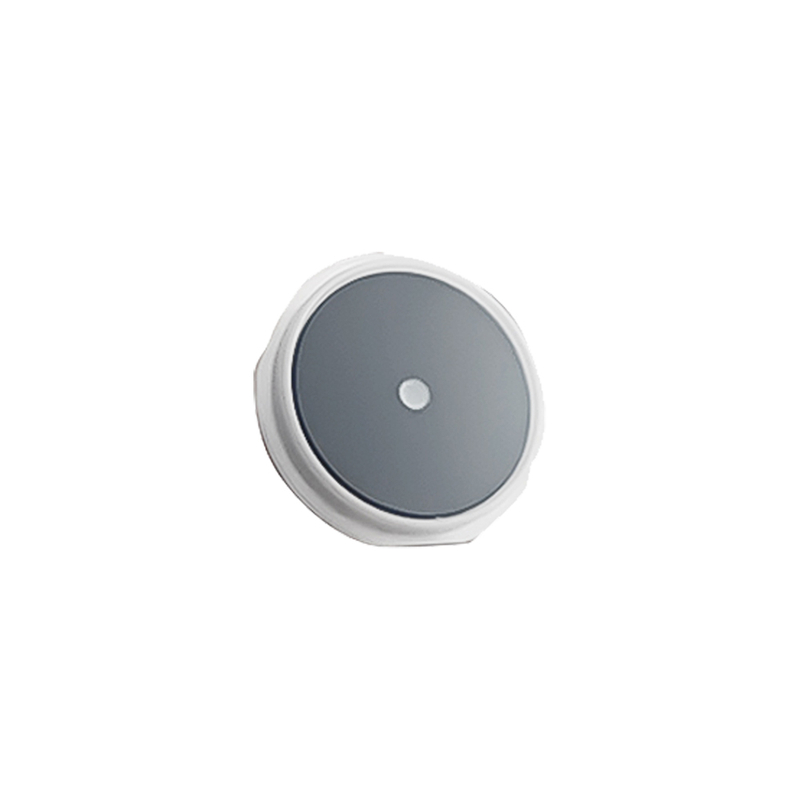

With its circle lamp design, the HS-207M ensures clear and intuitive scan code results. Easily capture and decode barcodes with precision, enhancing user experience and productivity. Say goodbye to manual data entry and streamline your workflow with the HS-207M.
Specification
Performance Parameters | |||
Image sensor | CMOS | ||
Resolution | 680px*480px | ||
Floodlight | White LED | ||
1D | EAN13, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, etc | ||
2D | QR Code, Data Matrix, PDF417 | ||
Accuracy | ≥5mil | ||
ContrastRatio | ≥25% | ||
Depth of field | QR | 25mm-150mm *Product performance may be affected to varying degrees by barcode quality and environmental conditions * | |
Sensitivity | Tilt ±55° | Rotate 360° | Deflection ±55° |
FieldOfViewAngle | Level 69° | Vertical 56° | Diagonal 88.8° |
DataInterface | TTL-232 | ||
ElectricalParameters | |||
WorkingVoltage | DC 3.3V | ||
WorkingCurrent | ≤100mA | ||
EnvironmentalParameters | |||
WorkingTemperature | -20℃ ~ +60℃ | ||
StorageTemperature | -40℃ ~ +80℃ | ||
RelativeHumidity | 5% ~ 95%(RH) | ||
AmbientLightIntensity | 0~100,000 lux | ||
PhysicalParameters | |||

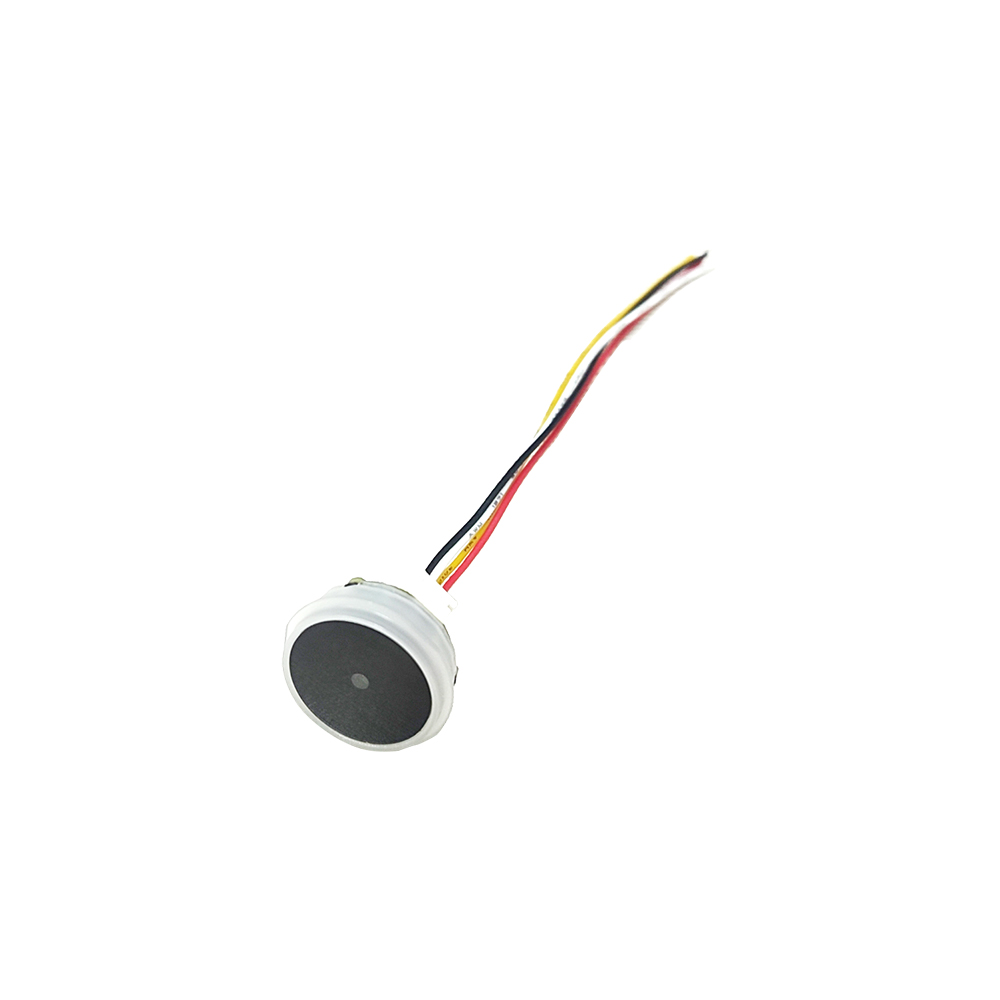

CableStandards | TTL 232 | ||
Size | 21 * 21* 10.3mm |
