HCC-Z100 is free SDK and supports EMV L1,L2 and PCI certificate version, and this product is intended for customers who possess development capabilities.
| Quantity: | |
|---|---|
HCC-Z100
HCCTG
What does POS mean?
POS typically stands for "Point of Sale." It refers to the place where a transaction occurs between a customer and a business, such as a retail store or restaurant.

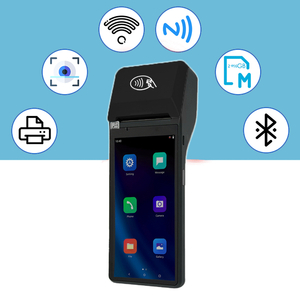

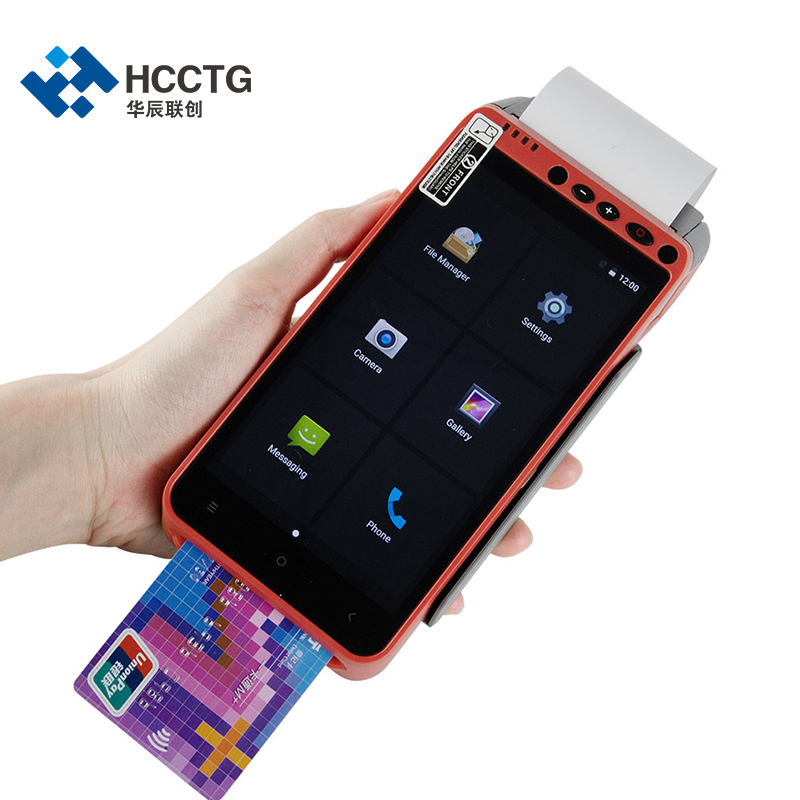

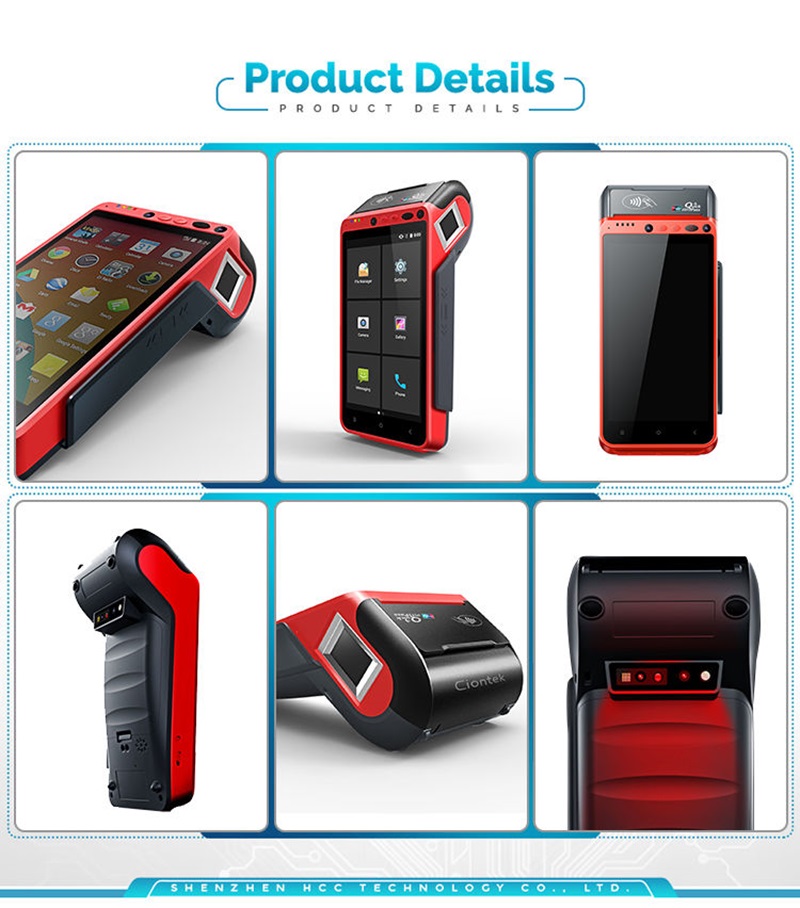

MSR+IC+NFC Card Reader Android POS With 58mm Printer HCC-Z100
Handheld POS device without software HCC-Z100 is the ultimate payment device for modern businesses. With advanced connectivity options, including global 2G/3G/4G network, inbuilt NFC contactless, BT4.0 and WIFI, you can stay connected no matter where you are in the world.
This restaurant ordering machine also boasts additional features for local customization, including a fingerprint scanner and fiscal module. With these features, you can easily manage your business transactions and keep your data safe and secure.
Upgrade your business today with the HCC-Z100 POS machine, and experience the ultimate in payment processing technology.
Features
Safe droid OS, Android 7.0 (5.1 at optional)
5 inch TFT IPS LCD, resolution 1280*720;
Built-in high speed 58mmthermal printer , with over 50Km print life
Full bands for global coverage: 4G/3G/2G,WLAN,VPN

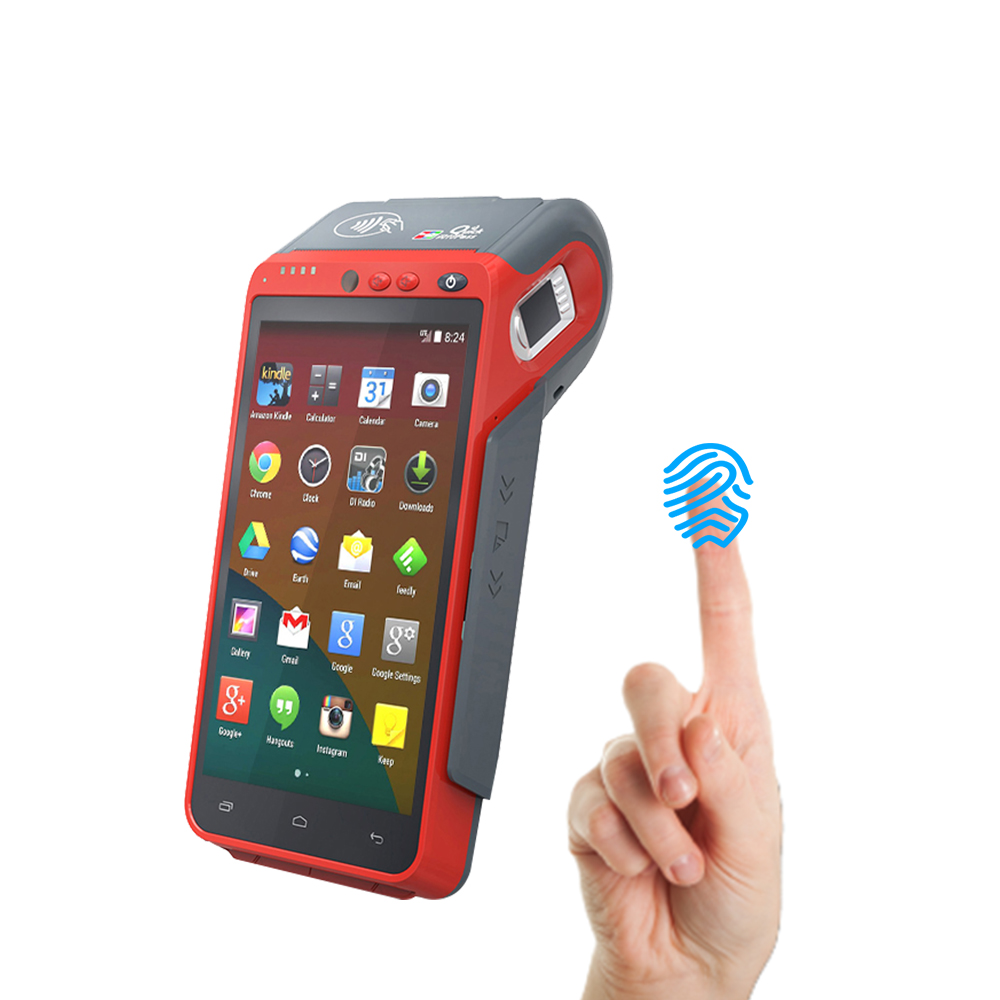

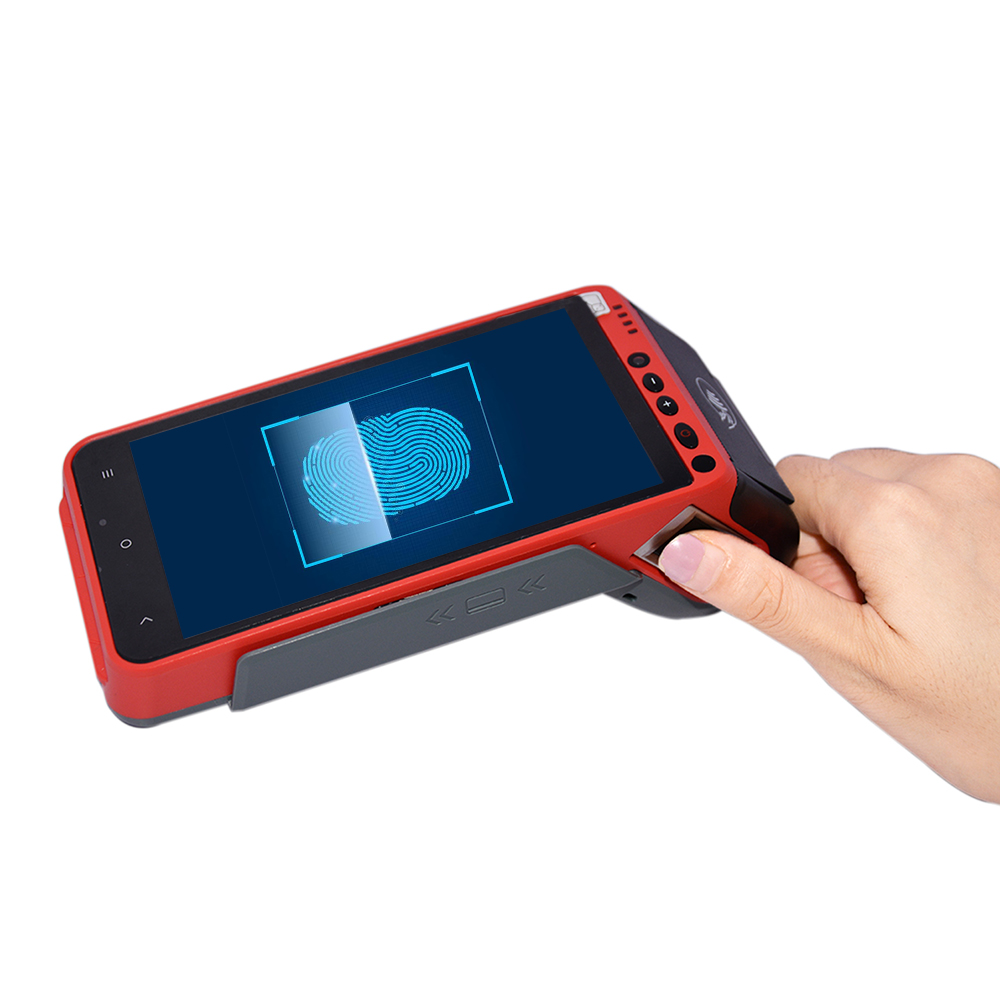

Authentec,508dpi fingerprint module for biometric identification

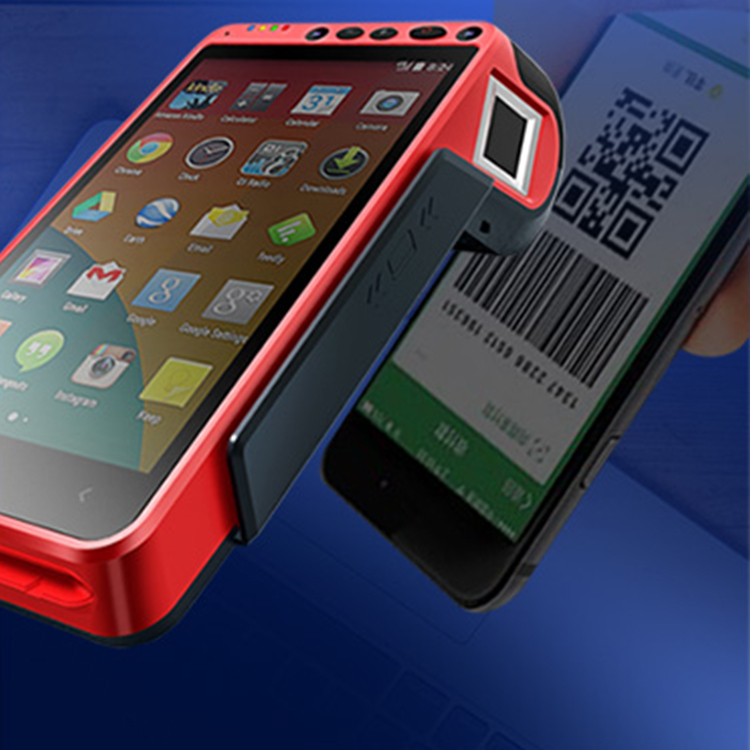

Dual camera for quickly QR code scan & Symbol 2D scanner as option
Specifications
Basic Characteristics | OS | Safedroid OS (based on Android 7.0) |
CPU | Quad-Core 1.35GHZ | |
ROM | 8GB ROM EMMC | |
RAM | 1G RAM LPDDR3 | |
Display | 5.5 inch TFT IPS LCD resolution 1280*720 | |
Panel | Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers | |
Dimensions | 206mm*84mm*32mm (max 56mm) | |
Weight | 530g(Battery included) | |
Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys 3 Virtual keys: Menu, Home, Back | |
Input | Chinese/English ,and supports handwriting and soft keyboard | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
Bluetooth | BT 4.0 LE +EDR | |
4G | TD-LTE:Band38, Band39, Band40, Band41 FDD-LTE:Band1,Band3,Band7,Band8,Band20 | |
3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 TD-SCDMA:Band34,Band39 | |
2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ | |

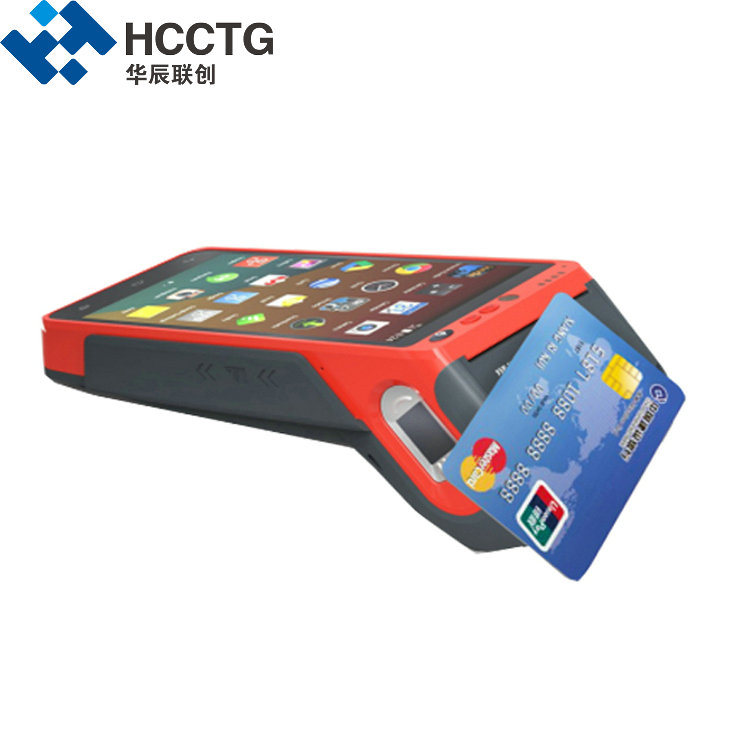

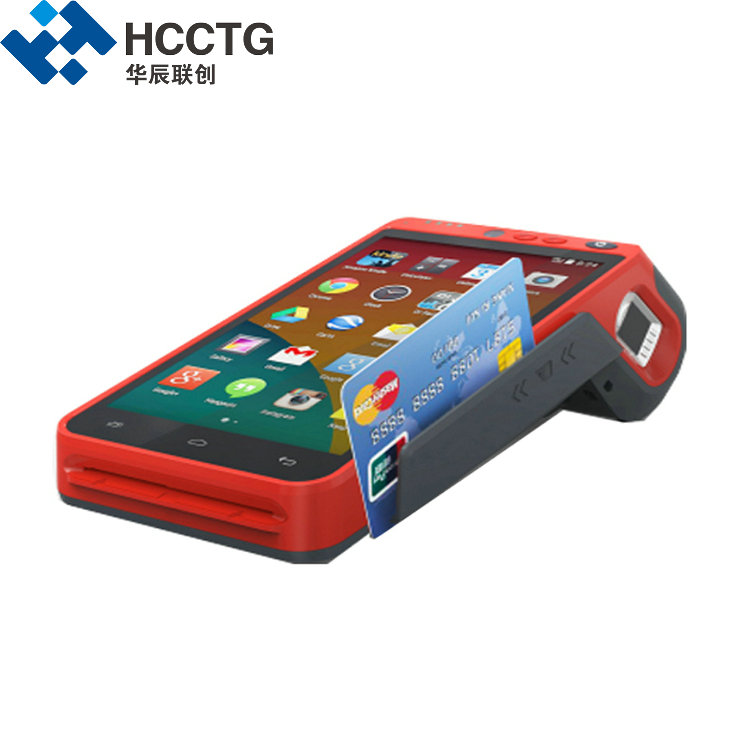

Payment | Magnetic Card reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
Smart Card reader | Supports ISO7816 standard | |
Contactless Card reader | Supports 14443A / 14443B | |
Expansion and peripherals | Printer | High-Speed Thermal Printer 58mm printing paper 40mm paper roll; |
Camera | 5MP camera with LED flash and auto-focus function | |
Satellite Positioning | GPS, Supports A-GPS | |
Audio | Speaker,Microphone, Earphone | |
Interfaces | Micro SD Card Slot | 1 PCS |
SIM Card Slot | 2 PCS MICRO SIM | |
PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
USB Port | 1PCS USB TYPE C | |
Power | Battery | Li-ion battery, 2600mAh 7.4V |

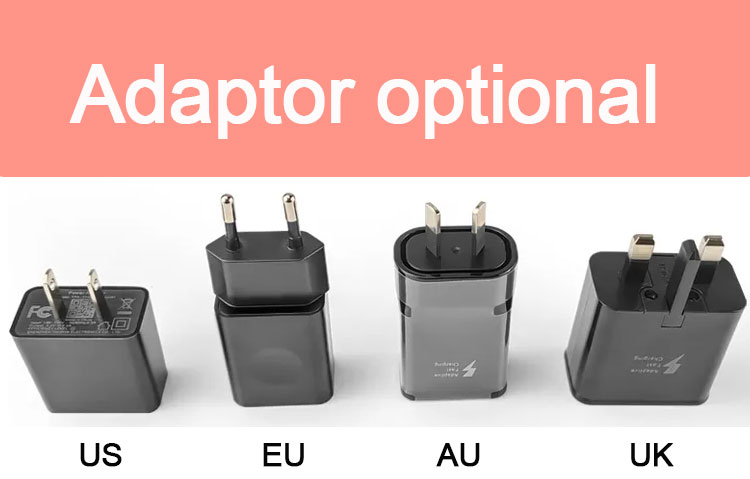

Charging Port | USB Type C,5V 2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE,RoHS,FCC |
Payment | PCI PTS 5.X,EMV L1&L2,Paypass, Paywave | |
Anti-tamper | Without Anti-tamper function | |
Optional | Fingerprint | Semiconductor capacitance 18mm x 12.8mm imaging area 256 x 360 pixel array 508dpi |
Front camera | 2 Megapixel Fixed Focal Camera | |
Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies | |
Positioning | GLONASS, Bei-Dou satellite navigation system | |
Fiscal Module | Russian format | |
