HCC-L51 supports 1”,2”,3”,4” paper size, and it's compatible with CPCL, ESC/POS command set
| Quantity: | |
|---|---|
HCC-L51
HCCTG

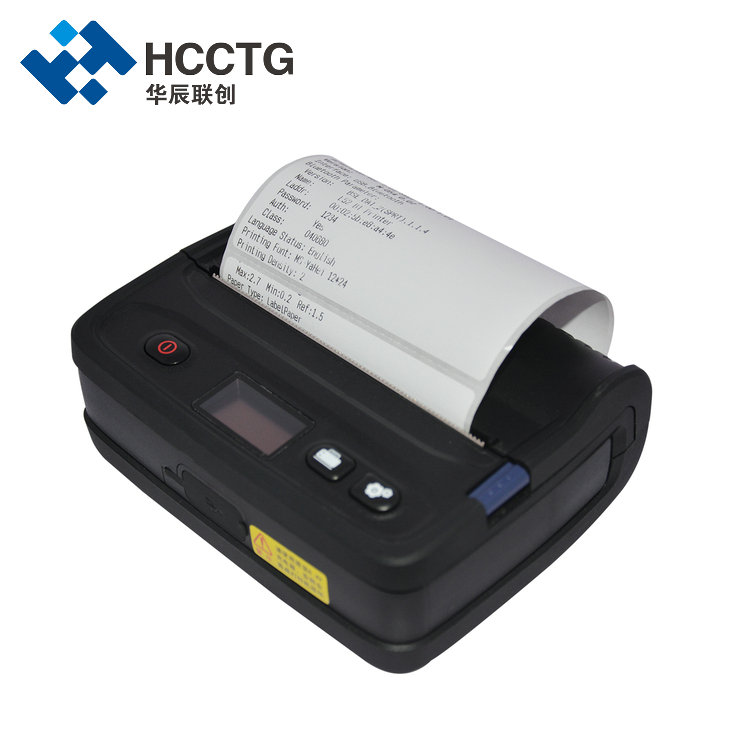

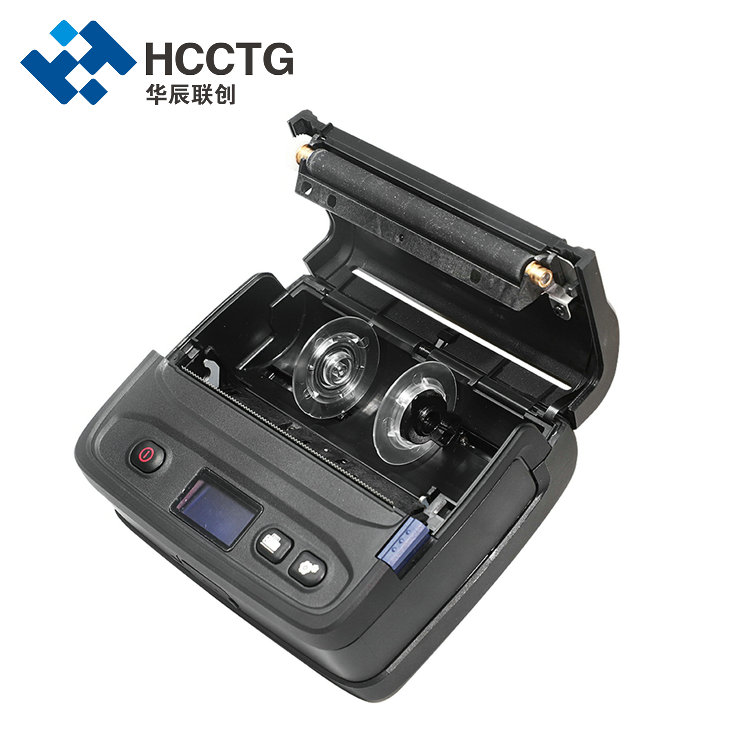

ESC/POS Bluetooth Thermal Label Printing Mobile POS Receipt Printer HCC-L51
HCC-L51mobile printer is a versatile and high-performance 4 inch mobile bluetooth thermal label printer that is perfect for all your printing needs. With its advanced 2D barcode scanning capability, you can easily print and scan barcodes on the go, making it the ideal choice for mobile POS applications.

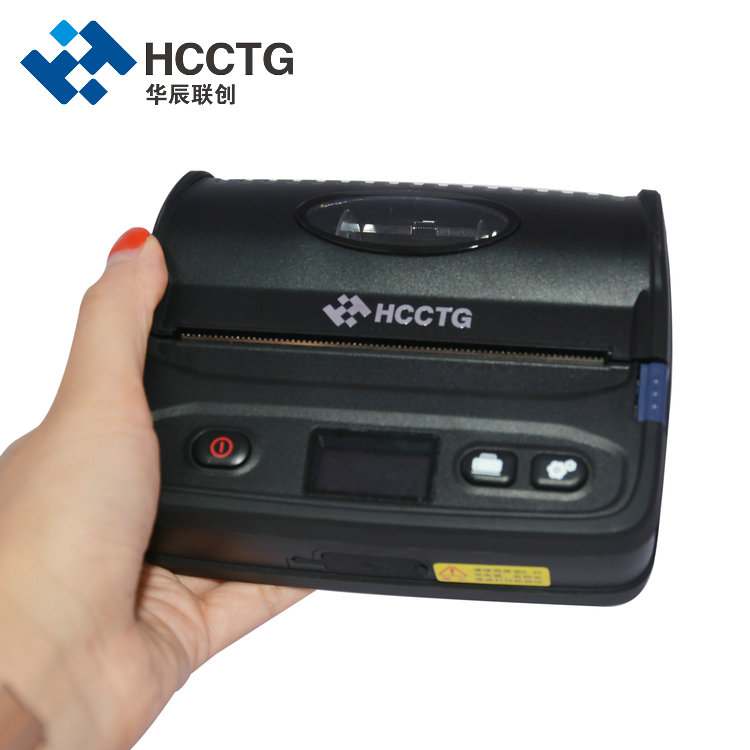

This mobile bluetooth printer is easy to use and highly portable, allowing you to take it with you wherever you go. Whether you need to print receipts, labels, or invoices, the HCC-L51 delivers exceptional print quality and reliability, making it an excellent investment for your business.
As a mobile POS printer, the HCC-L51 offers seamless connectivity via Bluetooth, allowing you to print from your smartphone, tablet, or other mobile devices with ease. This feature, coupled with its compact design, makes it an ideal choice for businesses that require a reliable and portable printing solution.
Besides, HCC-L51 thermal printer is widely applied, such as thelogistic, warehouse, catering, administrative fees receipt printing, post receipt printing, bill book printing machine,restaurant ordering, barcode printer for medical store, billing printer for retail shop, etc.
Feature:
LCD display
1”,2”,3”,4” Paper Size available
Super battery capability
Super diameter paper by outside bracket
Compatible with CPCL, ESC/POS command set
Specification
Printing Method | Thermal Line | |
Resolution | 8 dots/mm（203dpi） | |
Effective Printing Width | 104mm/100mm/72mm/48mm/37.5mm | |
101.5mm±0.5mm: 800dots/line 111.5mm±0.5mm:832dots/line | ||
Paper Width & Dots per line | 44mm±0.5mm: 300dots/line 58mm±0.5mm: 384dots/line 79.5mm±0.5mm: 576dots/line 104mm±0.5mm: 800dots/line 112mm±0.5mm: 832dots/line | |
Printing Speed | 80mm/s (thermal paper); 50mm/s (label paper) | |
Graph Printing | Diagram, downloaded bitmap supported | |
Print Font | Chinese: 24×24; 16×16; ASCII: 9×24;12×24;18×16 | |
TPH | 50km | |
Barcode | 1-Dimension | UPCA, UPCE, EAN13, EAN8, CODE39, ITF25, CODABAR, CODE9 |
3, CODE128 | ||
2-Dimension (reserved) | PDF417, QR CODE, DATA Matrix | |
Interface | Mini USB+Bluetooth Double Mould Bluetooth2.0&Bluetooth4.0, one-to-many | |
BT or one-to-one BT optional）or WIFI (reserved) | ||
Command Set | ESC/POS & CPCL | |
Other Functions | Paper-out alarm, Black-mark detection, Auto-sleep, LCD Display, Buzzer | |
Paper Type | Thermal Paper, Black mark Paper（44mm or 58mm）and Label Paper | |
Paper Roll Diameter | Max 40mm (extensible) | |
Paper Thickness | 0.06mm～0.14mm | |
Battery& Charger | 7.4V/2300mAh rechargeable Li-ion battery; 8.4V/800mA charger | |
Printing length for one charge | more than 120m（25% printing density） | |
Standby | more than 150hours | |
Paper Supply Method | Drop-in easy paper loading | |
Outline Dimension | 140(L)X115(W)X51(H)mm | |
Environment | Operating Temperature/ Humidity: 0~50°C/10~80% | |
Storage Temperature/ Humidity: /10~80°C/10~90% | ||
Weight | 500g（not including paper） | |

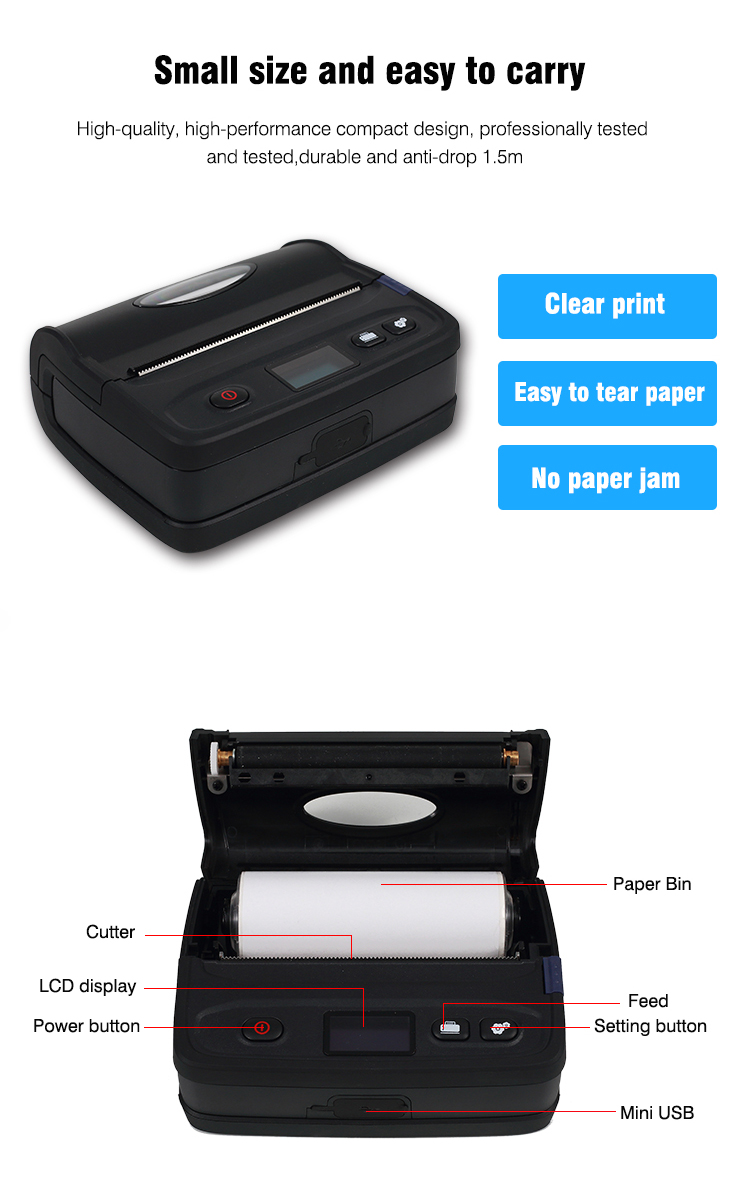

Drop Resistance | 1.5m | |
