TTL RS232 58mm Thermal Label&Receipt Printer HCC-EB58
With the ability to support paper rolls up to 60mm in diameter, the HCC-EB58 embedded panel printer is an ideal choice for businesses that need to print high volumes of receipts, invoices, or other documents.
The HCC-EB58 kiosk panel printer comes equipped with a cash drawer port, as well as optional serial interfaces (RS-232C, TTL, USB), making it easy to connect to a wide range of peripherals and devices.
Its small footprint makes it easy to fit into tight spaces, while still delivering top-notch printing capabilities.
Features:

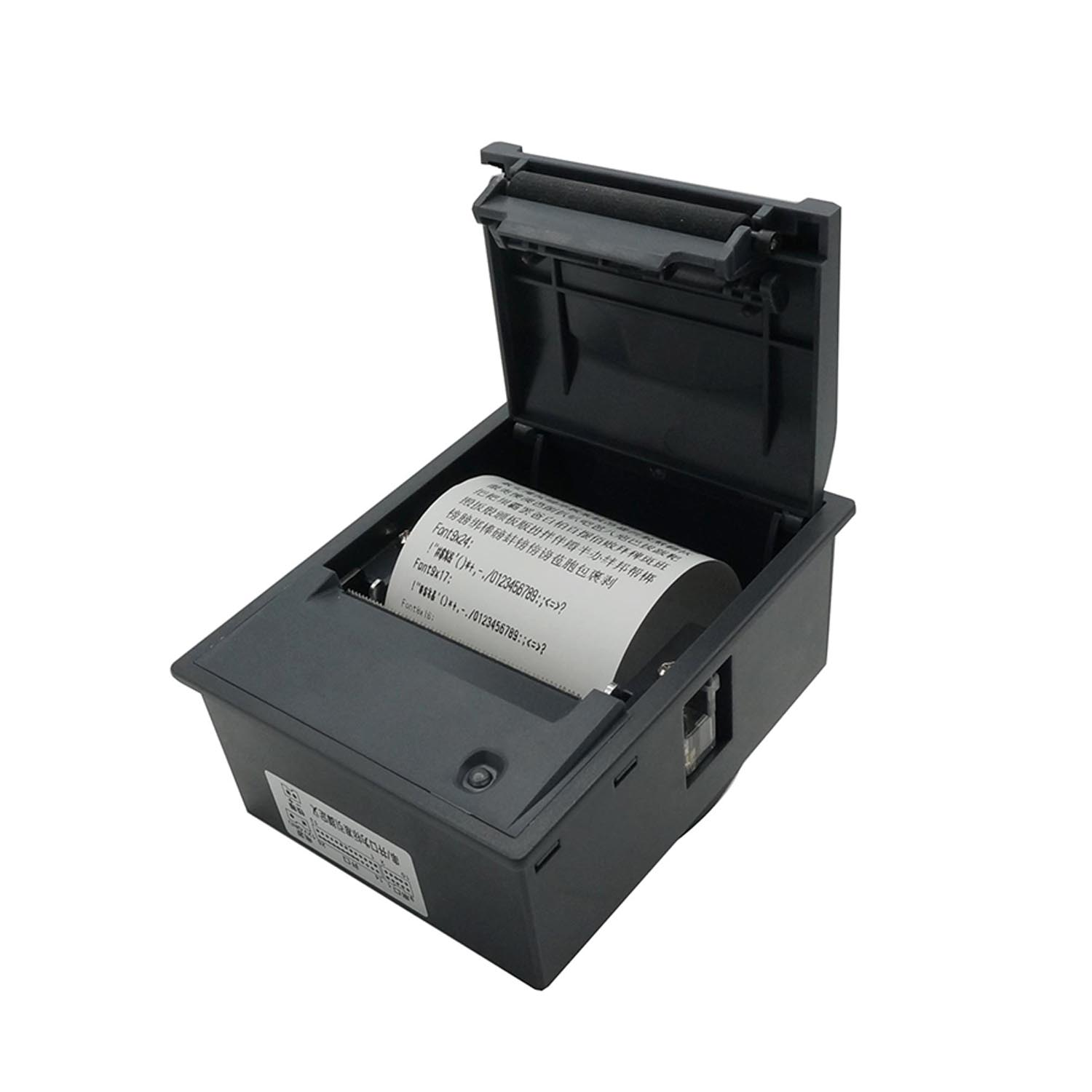

Easy paper loading
Low noise thermal printing
Different interfaces optional

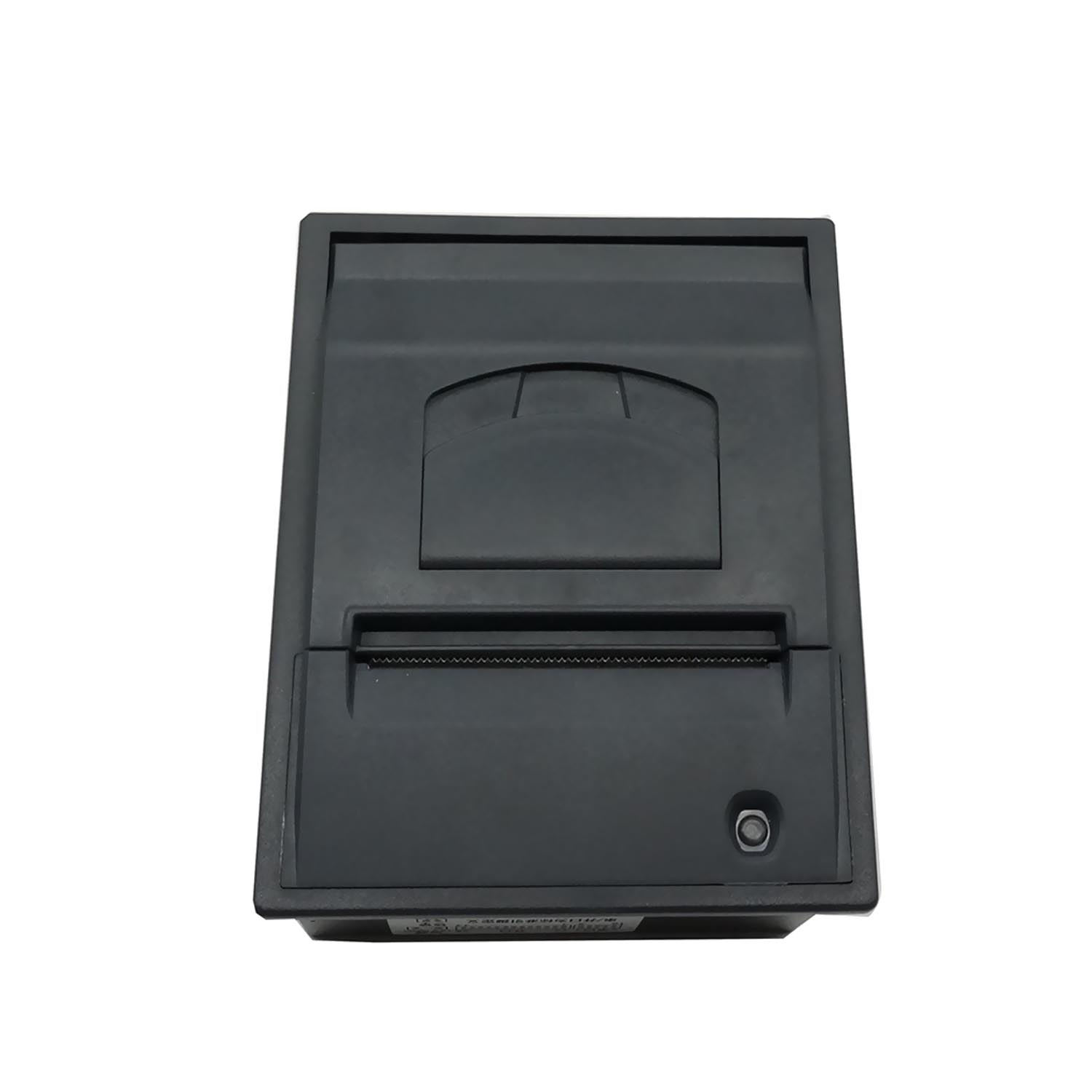

Front panel make paper replacement easily
Printer control panel built-in GB18030 Chinese character, thoroughly remove the uncommon words of anguish.and it can be updated with different language fonts
Rich of graphics / curves / characters print function
Support 5V-9V wide power voltage, or 12V
Application
Taximeter
Car Drive Recorder
Self-service
Automatic ticket vending machine
Medical measuring instrument
Food detector
Weighing equipment
Electronic measuring instrument
Gas station
Factory equipment and many more
Specifications
Printing Method | Thermal Dot Line | |
Printing Speed | 50-80mm/s | |
Resolution | 8 dots/mm, 384 dots/line | |
Effective Printing Width | 48mm | |
Character | Character Set | ASCII,GB2312-80(Chinese) |
Code page | Support 60 kinds of Language | |
Print Font | ANK:9X17,12X24, GBK:24×24 | |
Paper Spec | Paper Type | Thermal paper |
Paper Width | 57.5± 0.5mm, paper width can be adjustable | |
Paper Thickness | 0.06 to 0.07mm | |
Paper Roll Diameter | Max: 60mm | |
Reliability | MCBF | 5 million lines |
Interface | RS232/TTL/USB | |
Insert Depth | 106.3mm*84mm | |
Power Supply (Adapter) | DC5V-9V or 12VDC | |

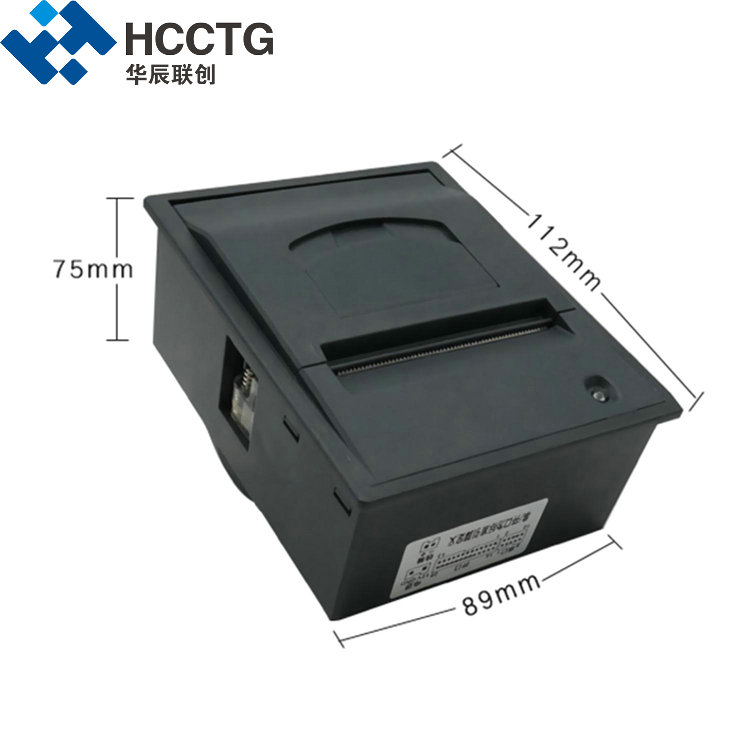

Physical | Outline Dimension (WxDxH)mm | 111x89x73.5 (with controller board) |
Color | Black/Beige | |
Environment | Operating Temp | 5°C ~ 50°C |
Operating Humidity | 10% ~ 80% | |
Storage Temp | -20°C ~ 60°C | |
Storage Humidity | 10% ~ 90% | |
