Z100 supports EMV L1,L2 and PCI certificate, It is designed for customers with development capabilities.
| Quantity: | |
|---|---|
HCC-Z100
HCCTG

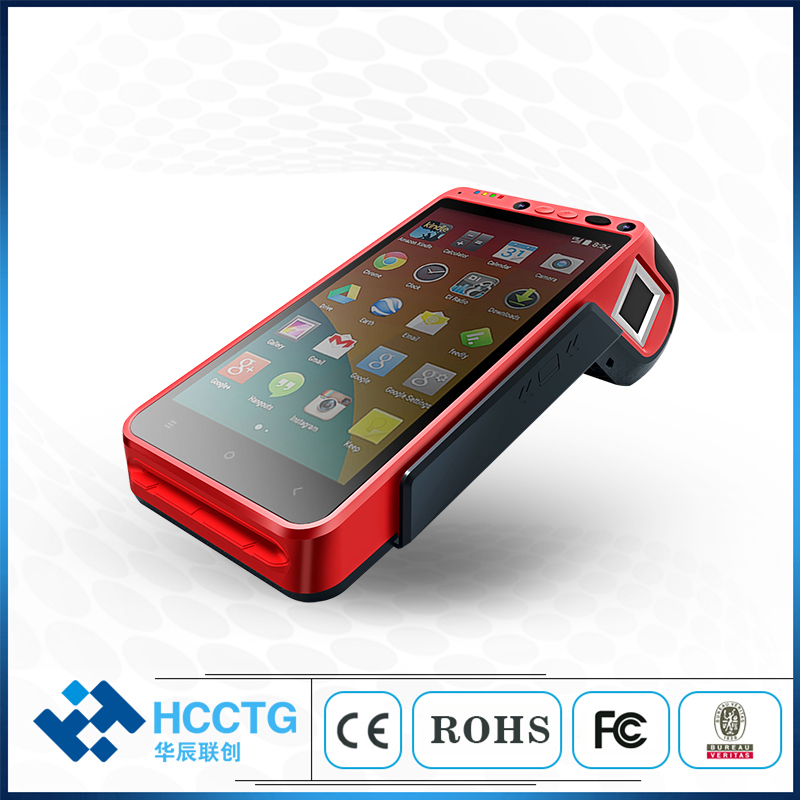

5.5 Inch Mobile Payment Handheld Smart POS Payment Terminal With Printer HCC-Z100

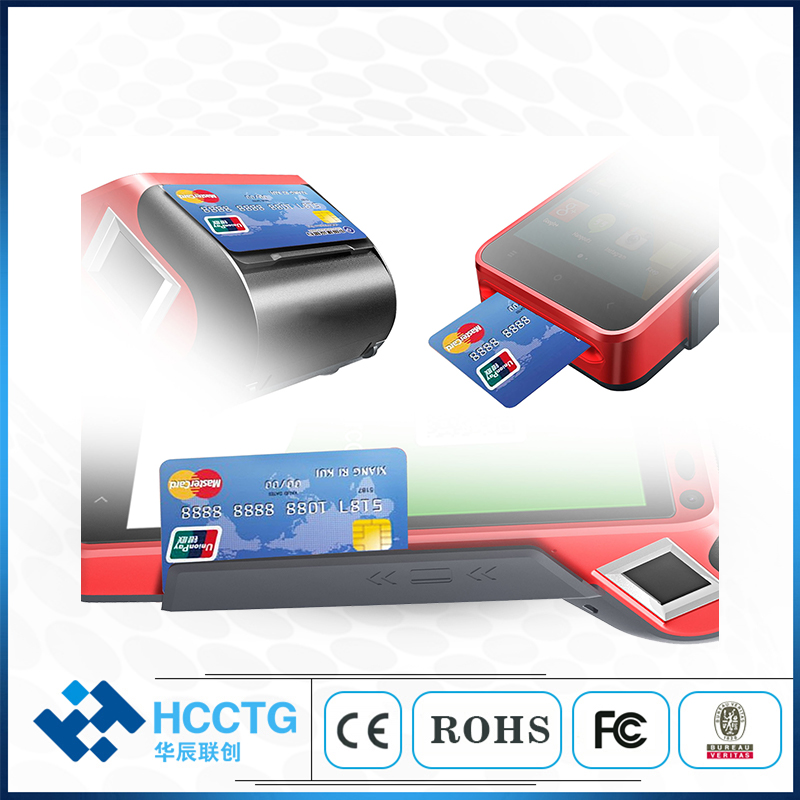

Enhance the efficiency and mobility of your workforce while providing your customers with faster service through our handheld POS payment devices. Introducing the Z100 fingerprint POS machine, designed to support electronic payment processing anywhere you go. With its powerful 1G RAM+8G ROM (optional 2G RAM+16G ROM), the device offers seamless performance. It supports MSR, smart card, and NFC card, ensuring versatile payment options for your customers.

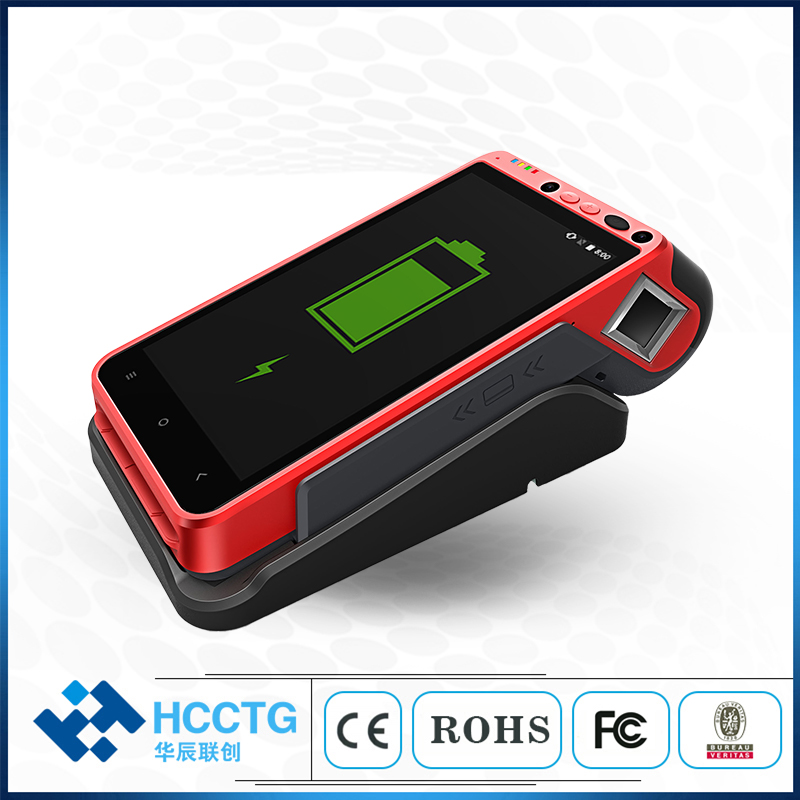

Moreover, the Z100 Android POS machine is compatible with 4G, 3G, and 2G networks, allowing uninterrupted connectivity. With added features like Wi-Fi+Bluetooth, charging cradle, and optional rubber protective cover, this handheld POS offers a comprehensive one-stop payment solution tailored to your needs.
Features:
Safedroid OS,Based on Android 7.0 OS;
5.5 inch TFT IPS LCD, resolution 1280*720;
Built-in high speed58mm thermal printer , with over 50Km print life
Full bands for global coverage: 4G/3G/2G,WLAN,VPN

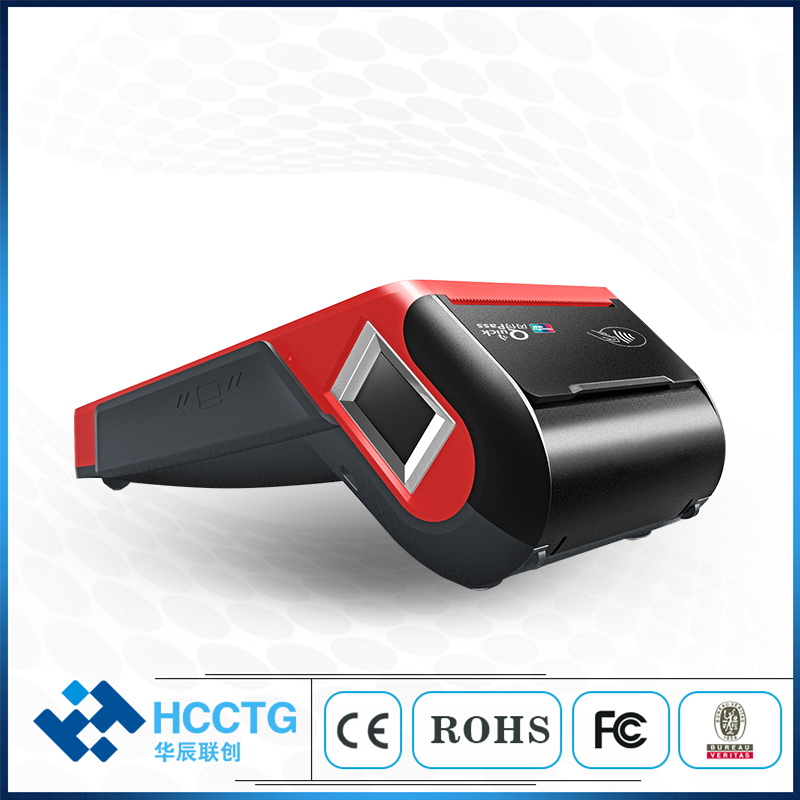

Authentec,508dpi fingerprint module for biometric identification

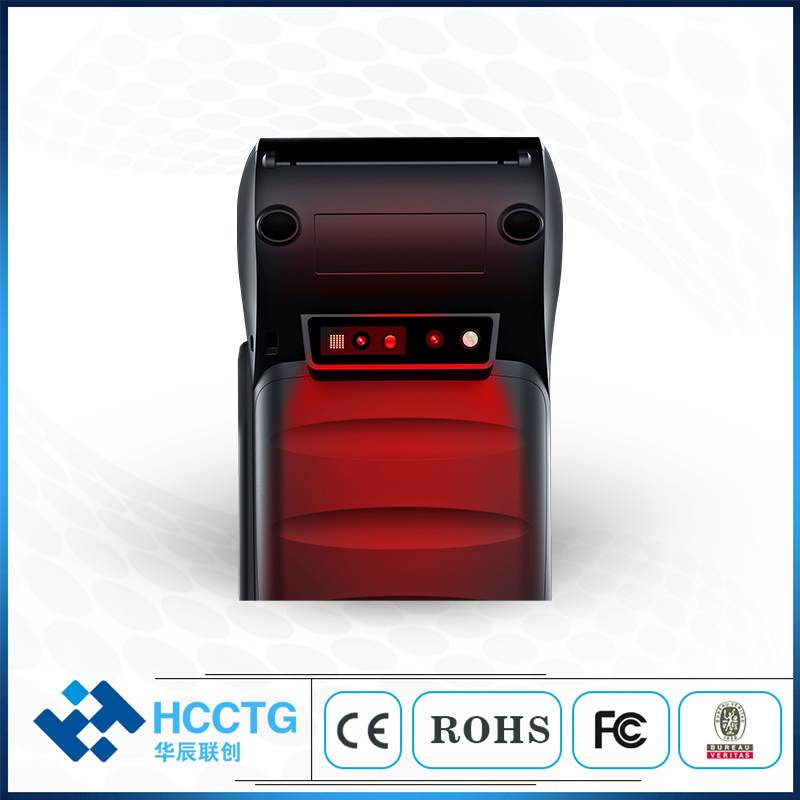

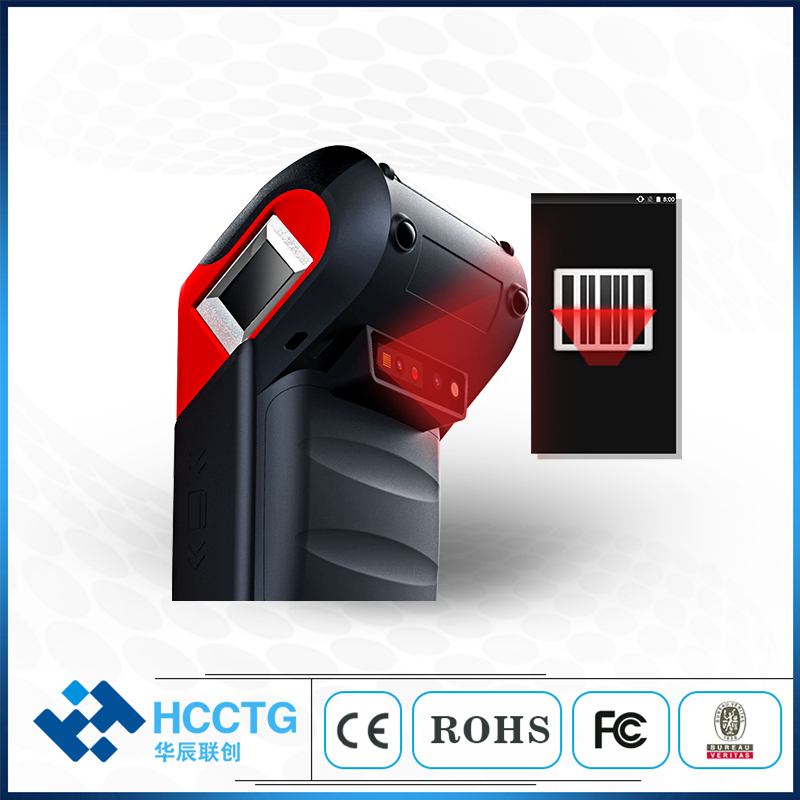

Dual camera for quickly QR code scan & Honeywell 2D scanner as option
Specifications:
Basic Characteristics | OS | Safedroid OS (based on Android 7.0) |
CPU | Quad-Core 1.35GHZ | |
ROM | 8GB ROM EMMC | |
RAM | 1G RAM LPDDR3 | |
Display | 5.5 inch TFT IPS LCD resolution 1280*720 | |
Panel | Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers | |
Dimensions | 206mm*84mm*32mm (max 56mm) | |
Weight | 530g(Battery included) | |
Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys 3 Virtual keys: Menu, Home, Back | |
Input | Chinese/English ,and supports handwriting and soft keyboard | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
Bluetooth | BT 4.0 LE +EDR | |
4G | TD-LTE:Band38, Band39, Band40, Band41 FDD-LTE:Band1,Band3,Band7,Band8,Band20 | |
3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 TD-SCDMA:Band34,Band39 | |
2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ | |
Payment | Magnetic Card reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
Smart Card reader | Supports ISO7816 standard | |
Contactless Card reader | Supports 14443A / 14443B | |
Expansion and peripherals | Printer | High-Speed Thermal Printer 58mm printing paper 40mm paper roll; |
Camera | 5MP camera with LED flash and auto-focus function | |
Satellite Positioning | GPS, Supports A-GPS | |
Audio | Speaker,Microphone, Earphone | |
Interfaces | Micro SD Card Slot | 1 PCS |
SIM Card Slot | 2 PCS MICRO SIM | |
PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
USB Port | 1PCS USB TYPE C | |
Power | Battery | Li-ion battery,2600mAh 7.4V |
Charging Port | USB Type C,5V 2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE,RoHS,FCC |
Payment | PCI PTS 5.X,EMV L1&L2,Paypass, Paywave | |
Anti-tamper | Without Anti-tamper function | |
Optional | Fingerprint | Semiconductor capacitance 18mm x 12.8mm imaging area 256 x 360 pixel array 508dpi |
Front camera | 2 Megapixel Fixed Focal Camera | |
Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies | |
Positioning | GLONASS, Bei-Dou satellite navigation system | |
Fiscal Module | Russian format | |
