Z100 android POS terminal supports Mastercard, Visacard, 4G NFC,GPS, 2D barcode scanner and thermal printer.
| Quantity: | |
|---|---|
HCC-Z100
HCCTG

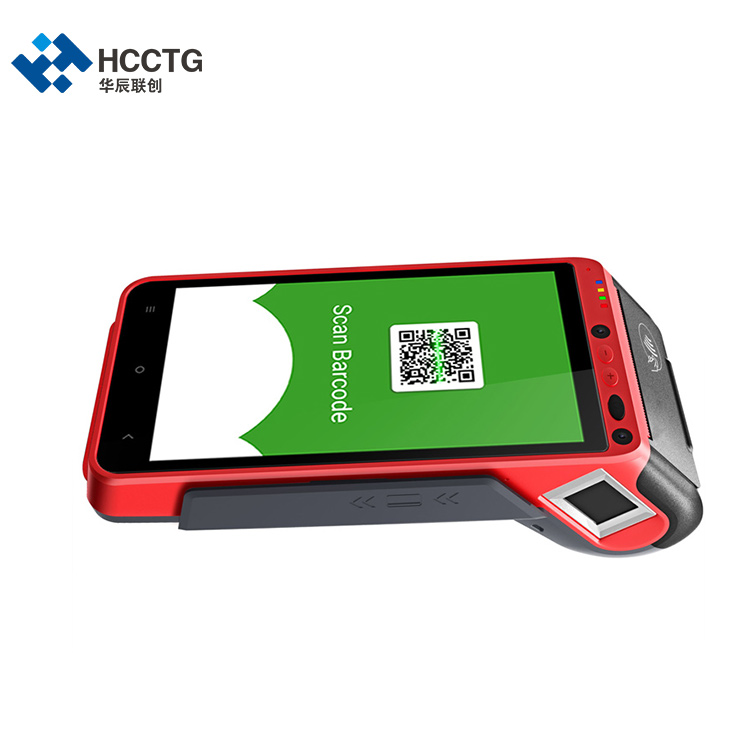

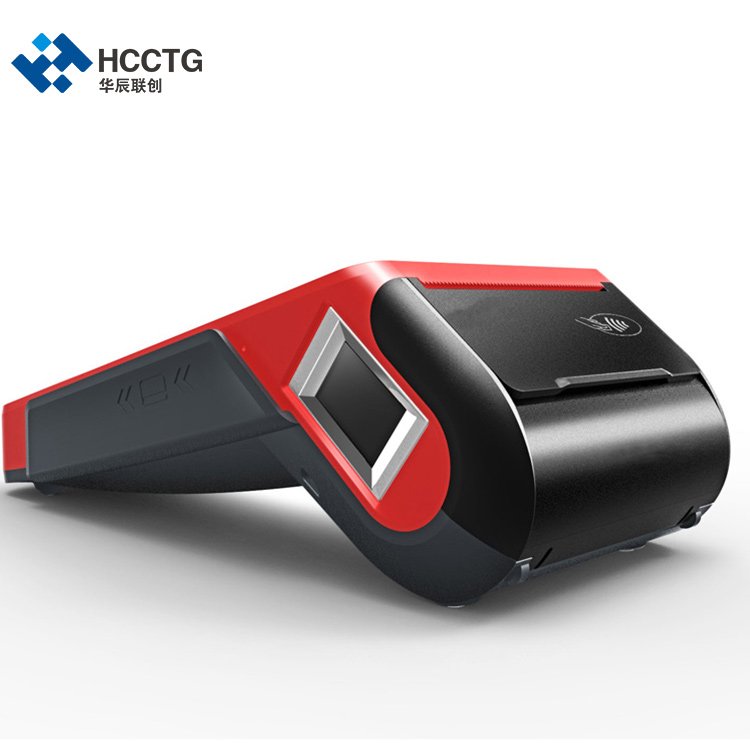

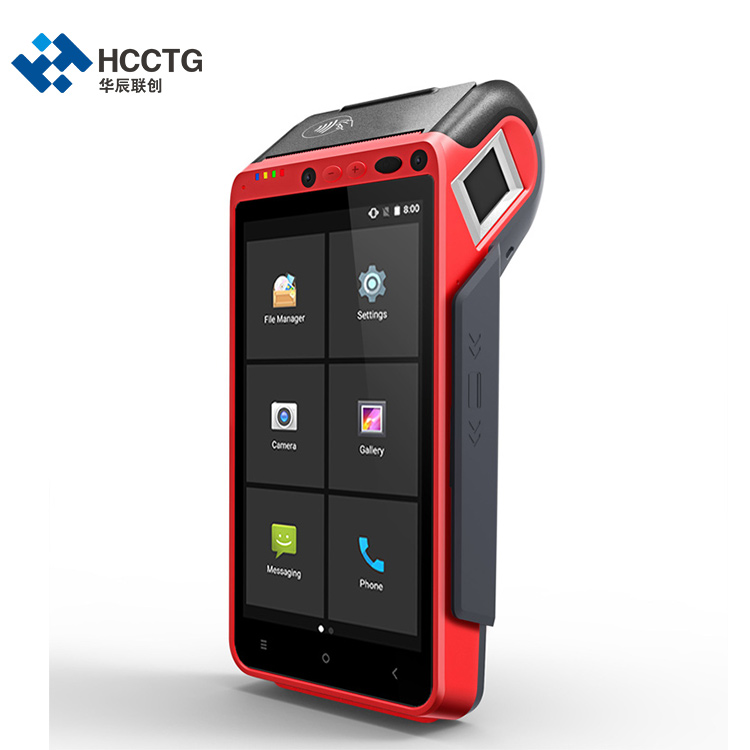

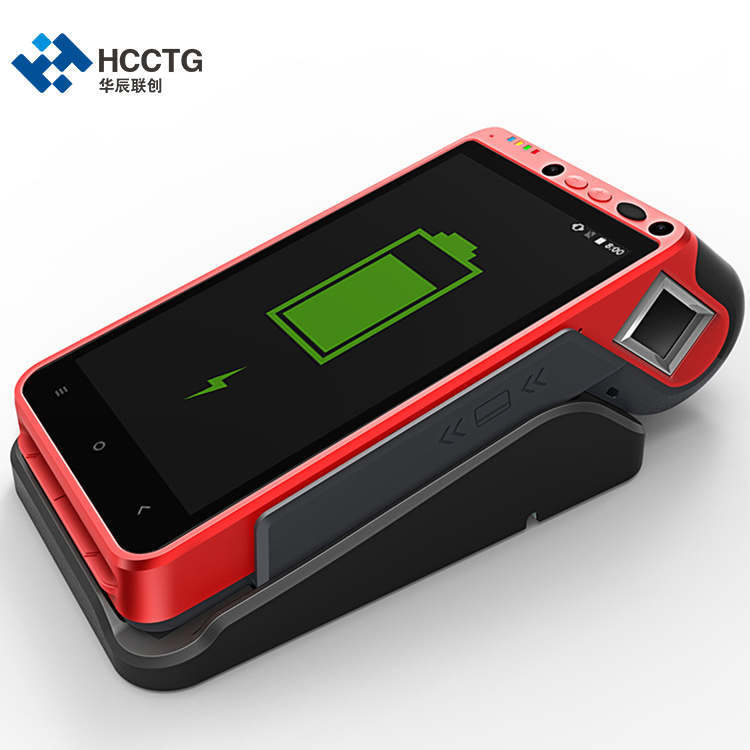

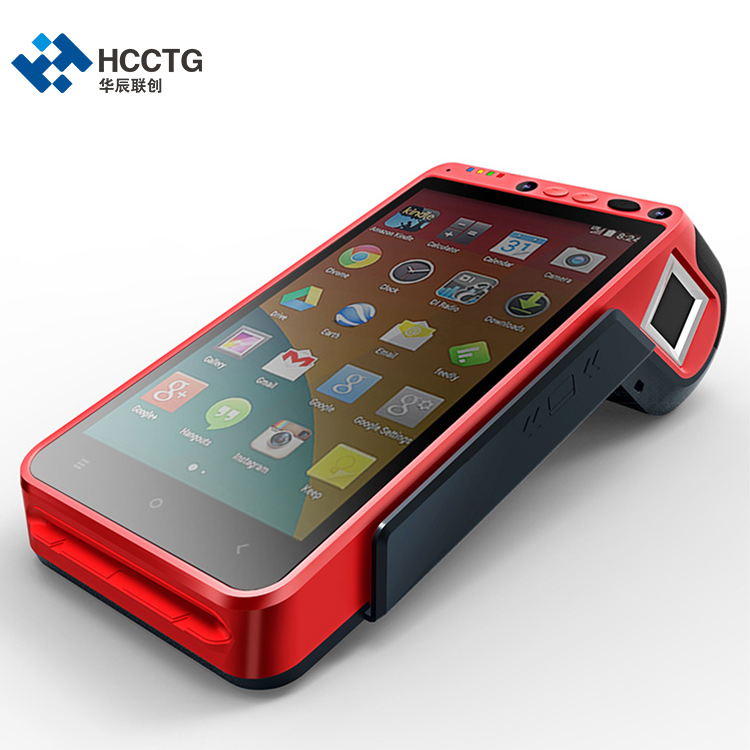

4G Mobile Payment Android POS Terminal With 58mm Thermal Printer HCC-Z100
The HCC-Z100 handheld POS machine supports contactless card, contactless device and chip ic card, and a wide range of advanced connectivity options are supported for global 2G/3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI. It's widely used at retails, banks, convenience store, restaurant and more!
Feature
Safe droid OS, Android 7.0 (5.1 at optional)
5.5 inch TFT IPS LCD, resolution 1280*720;
Built-in high speed 58mmthermal printer , with over 50Km print life
Full bands for global coverage: 4G/3G/2G,WLAN,VPN
Authentec,508dpi fingerprint module for biometric identification
Dual camera for quickly QR code scan & Symbol 2D scanner as option
Specifications
Basic Characteristics | OS | Safedroid OS (based on Android 7.0) |
CPU | Quad-Core 1.35GHZ | |
ROM | 8GB ROM EMMC | |
RAM | 1G RAM LPDDR3 | |
Display | 5.5 inch TFT IPS LCD resolution 1280*720 | |
Panel | Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers | |
Dimensions | 206mm*84mm*32mm (max 56mm) | |
Weight | 530g(Battery included) | |
Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys 3 Virtual keys: Menu, Home, Back | |
Input | Chinese/English ,and supports handwriting and soft keyboard | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
Bluetooth | BT 4.0 LE +EDR | |
4G | TD-LTE:Band38, Band39, Band40, Band41 FDD-LTE:Band1,Band3,Band7,Band8,Band20 | |
3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 TD-SCDMA:Band34,Band39 | |
2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ | |
Payment | Magnetic Card reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
Smart Card reader | Supports ISO7816 standard | |
Contactless Card reader | Supports 14443A / 14443B | |
Expansion and peripherals | Printer | High-Speed Thermal Printer 58mm printing paper 40mm paper roll; |
Camera | 5MP camera with LED flash and auto-focus function | |
Satellite Positioning | GPS, Supports A-GPS | |
Audio | Speaker,Microphone, Earphone | |
Interfaces | Micro SD Card Slot | 1 PCS |
SIM Card Slot | 2 PCS MICRO SIM | |
PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
USB Port | 1PCS USB TYPE C | |
Power | Battery | Li-ion battery, 2600mAh 7.4V |
Charging Port | USB Type C,5V 2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE,RoHS,FCC |
Payment | PCI PTS 5.X,EMV L1&L2,Paypass, Paywave | |
Anti-tamper | Without Anti-tamper function | |
Optional | Fingerprint | Semiconductor capacitance 18mm x 12.8mm imaging area 256 x 360 pixel array 508dpi |
Front camera | 2 Megapixel Fixed Focal Camera | |
Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies | |
Positioning | GLONASS, Bei-Dou satellite navigation system | |
Fiscal Module | Russian format | |
