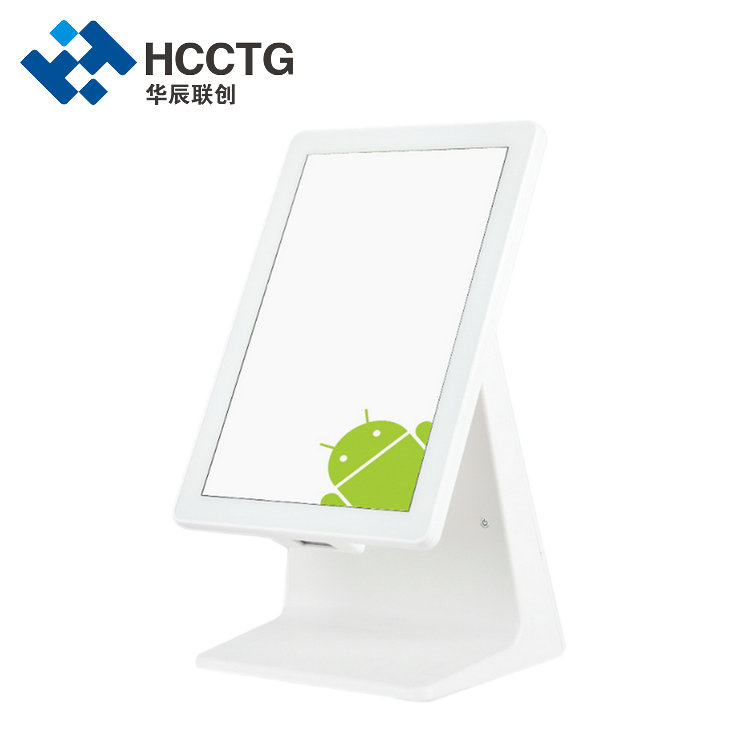

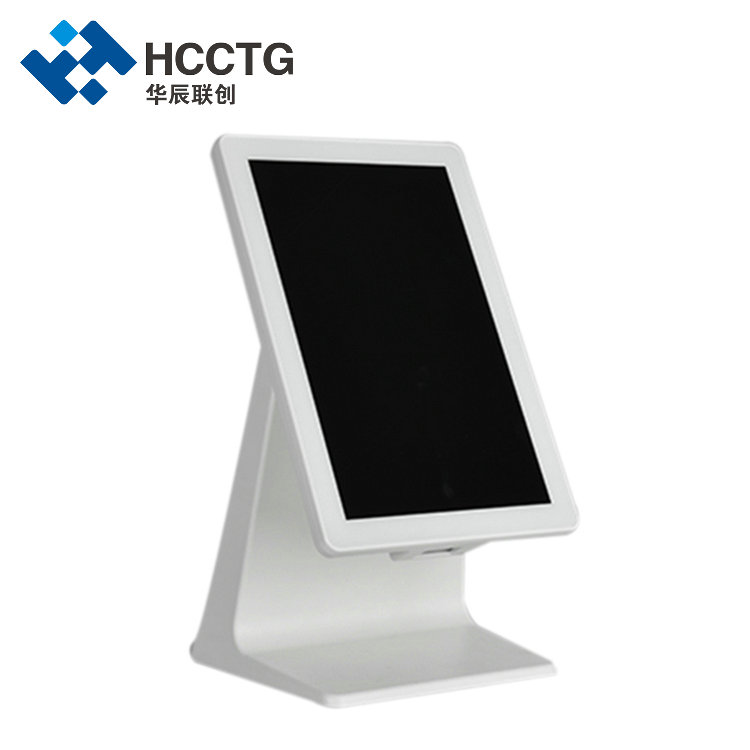

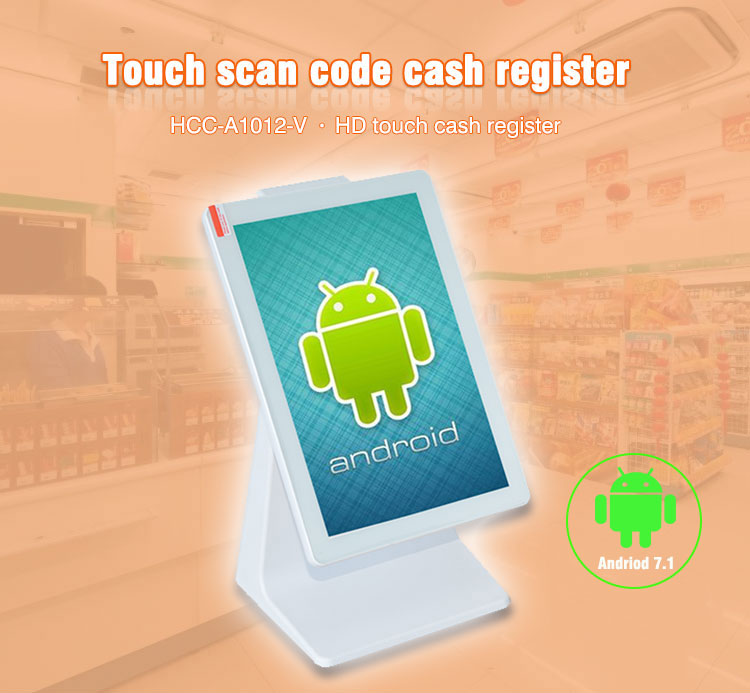

HCC-A1012-V is the perfect all in one POS terminal for you to use at supermarket, retail store, restaurant, etc
| Quantity: | |
|---|---|
HCC-A1012-V
HCCTG

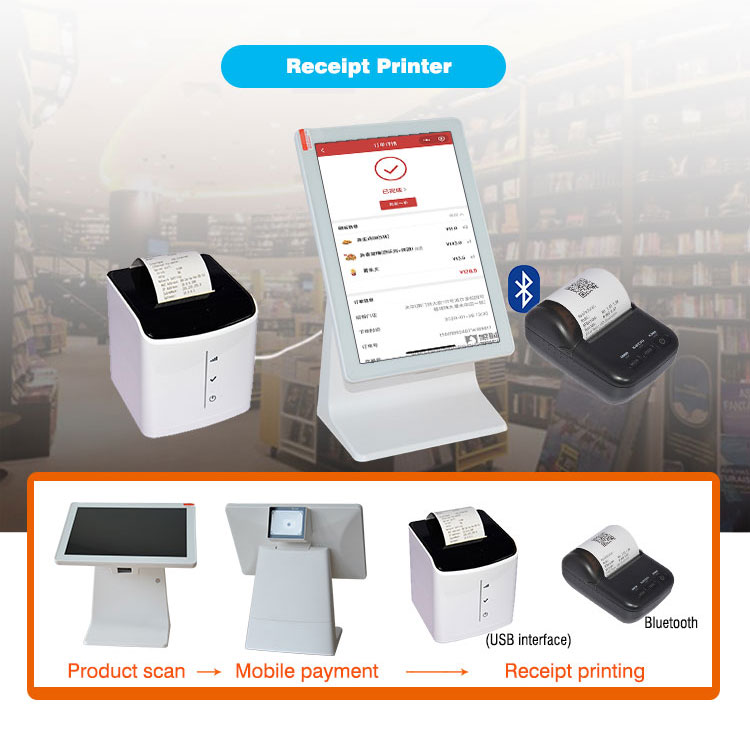

HCC-A1012 can provide a wide range of peripheral equipment, so as to have flexibility. Peripheral device options include: MSR/card reader, fingerprint/biometric card reader, RFID card reader, printer, cash drawer, etc. Through the external connection, small ticket printing, barcode scanning, payment card reading, and a full set of cashier tasks can be realized.
Features

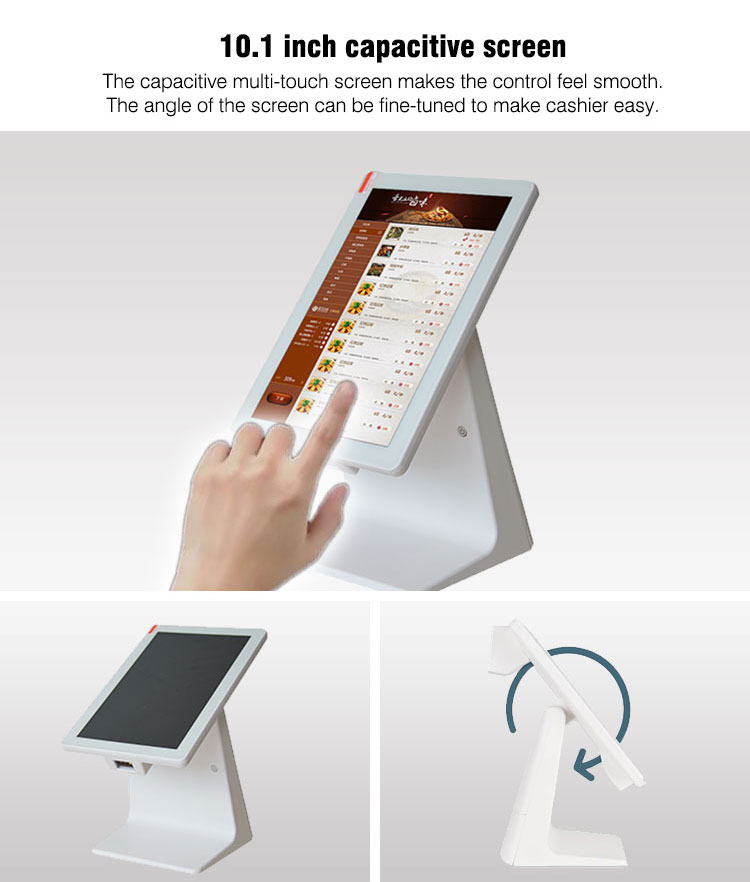

10.1 inch Capacitive screen 1280*800 Resolution

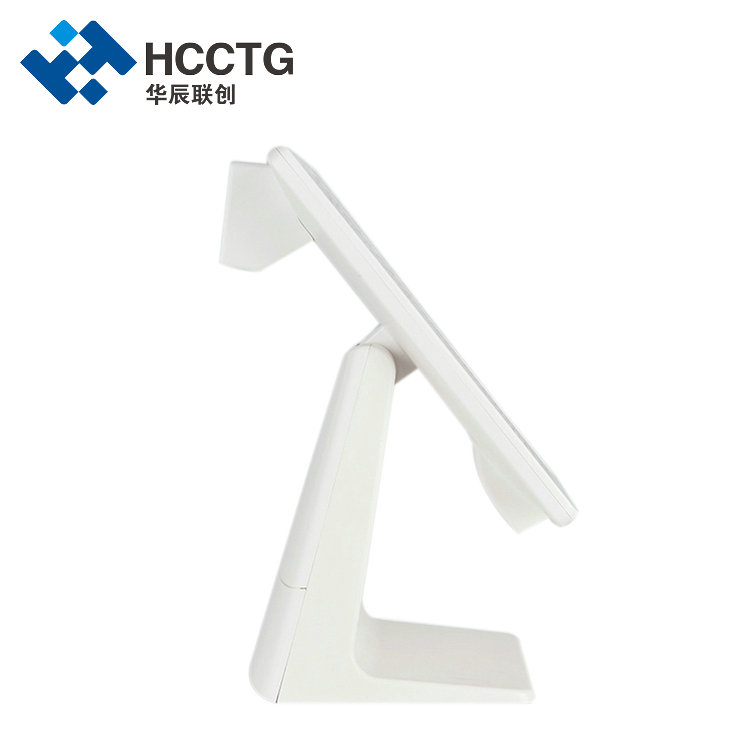

Adjustable screen angle, flexible operation and more comfortable
RK3288, 4x ARM Cortex-A17 @ 1.8 GHz CPU
2G RAM + 8G Storage
Specifications
System | Andriod 7.1 |
CPU | RK3288, 4x ARM Cortex-A17 @ 1.8 GHz |
GPU | ARM Mali-T760 MP4 |
RAM/Storage | 2G/8G |
Display | Size:10.1 inch Resolution:800*1280 Type:Capacitive |
Speaker | Built-in 2W speaker |
Dimension | 169*157*310(L*W*H) |
Environment | Working temperature:-10°C~40°C Storage Temperature: -20°C-55°C Humidity: 20%・90% RH |
Communications | WIFI:IEEE 802.11b/g/n Bluetooth:BT2.1+EDR/3.0/4.0/4.1/4.2 B Ethernet:10/1 OOM adaptive |
Weight | Net Weight:1.2kg Gross Weight:1.9kg |

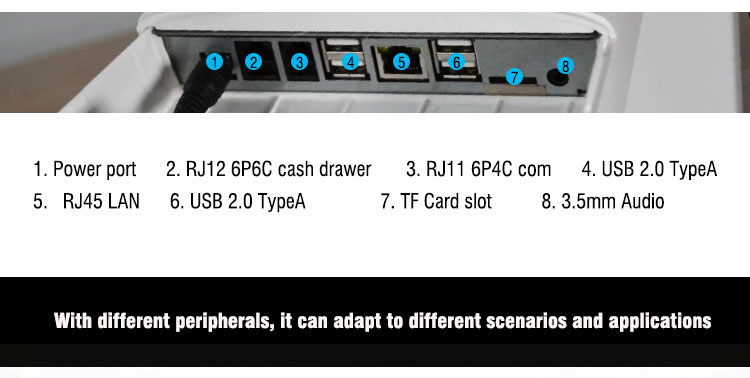

Ports | 1* SIM Card slot(optional) 1* RJ12 6P6C cash drawer |
1*TF Card slot 1* RJ11 6P4C com | |
1* 3.5mm Jack 4* USB 2.0 TypeA | |
1* Power port 1* RJ45 LAN | |

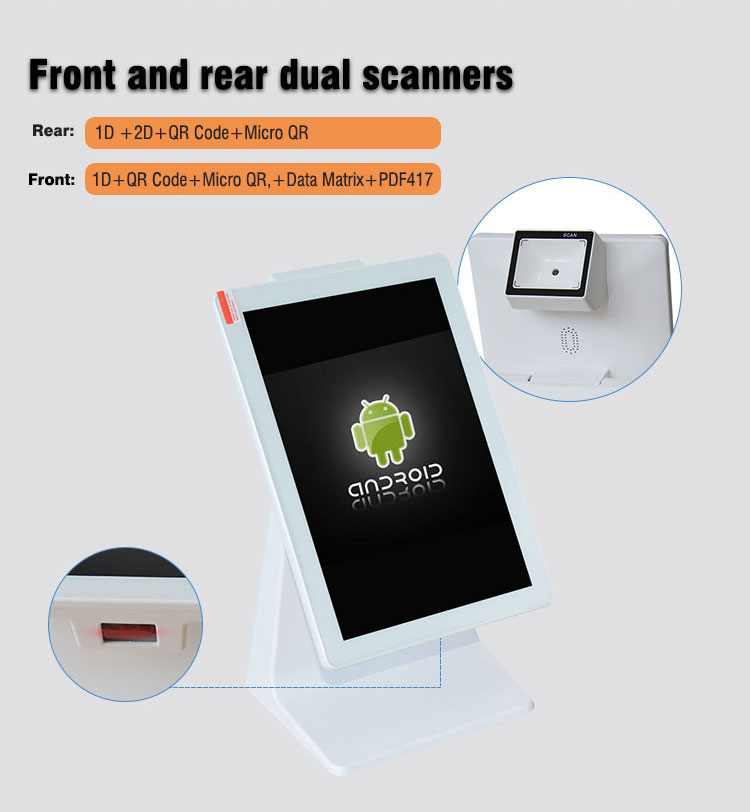

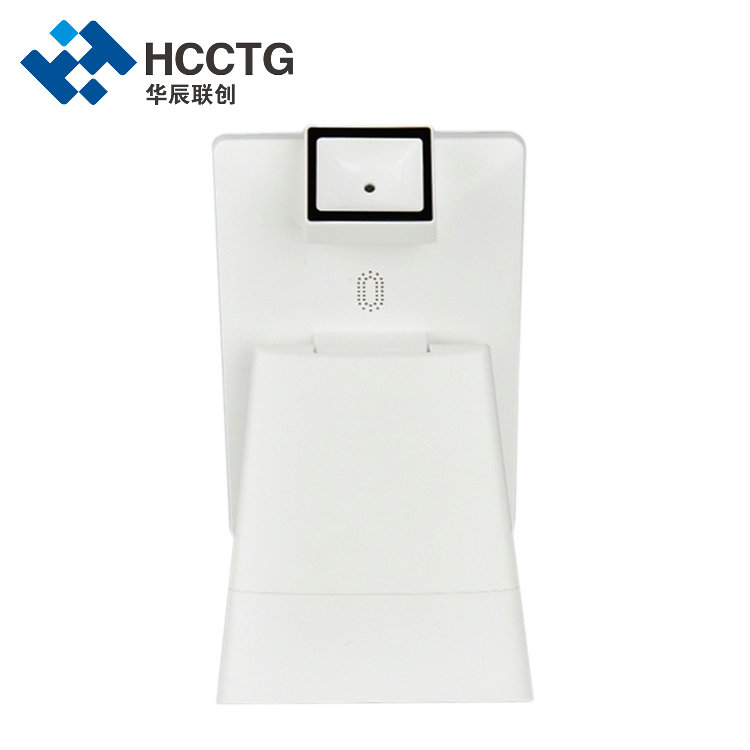

Rear scanner module | |
Prompt mode | Buzzer, LED indicator |
Trigger mode | Command trigger, automatic induction trigger, continuous trigger |
Setting method | Scan code setting, command setting |
Interface | USB HID keyboard |
Recognition angle | Rotation 360°, left and right tilt ±45°, front and back tilt ±45°, recognition accuracy >5mil |
Reading code | 1D: Code128,Code39,EAN,UPC,Code93,ISBN-13,Interleaved 2 of 5 |
2D: QR Code | |
Front Scanner Module | |
Prompt mode | Buzzer, LED indicator |
Trigger mode | Command trigger, automatic induction trigger, continuous trigger |
Setting method | Scan code setting, command setting |
Interface | USB HID keyboard |
Recognition angle | Rotation 360°, left and right tilt ±45°, front and back tilt ±45°, recognition accuracy >5mil |
Reading code | 1D: Code 128, EAN-13, EAN-8、UPC-E,UPC-A,ISBN,ISSN,Code 11,ITF-25 (Interleaved 2 Of 5), Code39,Code93,Code32,Codabar, Matrix 2 of 5, Industrial 25,IATA25,MSI Plessey |
2D: QR Code,Micro QR, Data Matrix,PDF417 | |
