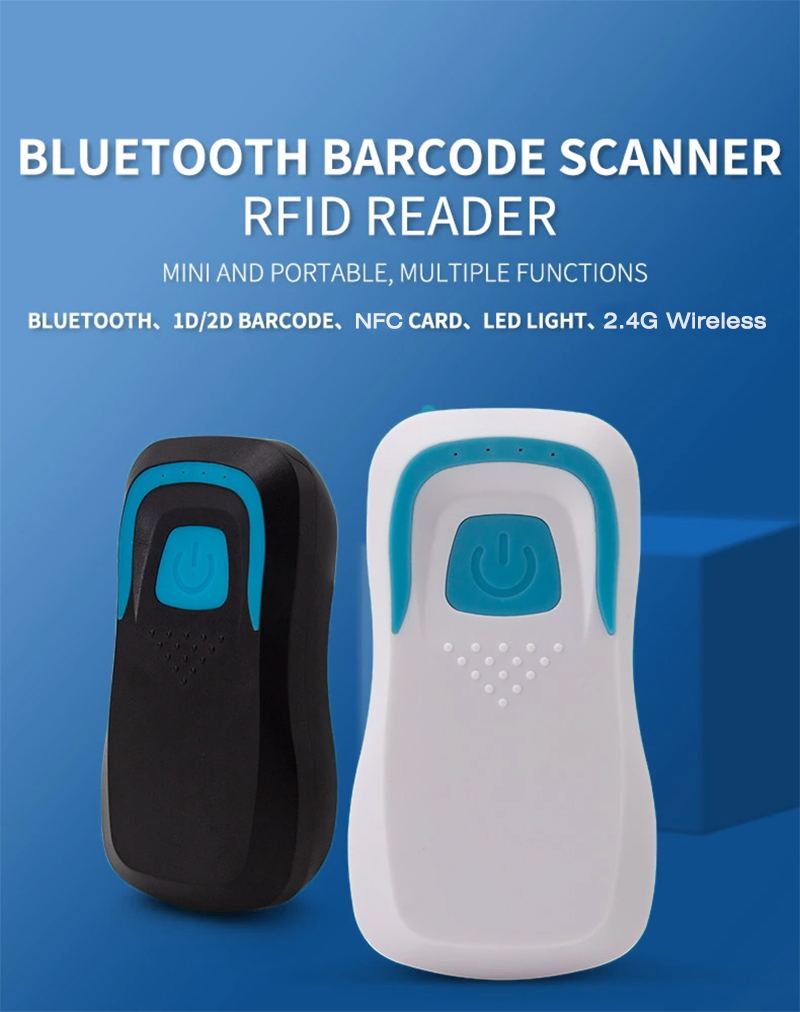

HR58 is 13.56M/125Khz non-contact RF card reader and 1D/2D barcode scanner based on barcode recognition, RFID radio frequency identification technology and Bluetooth communication
| Quantity: | |
|---|---|
HR58
HCCTG
HR58 is 13.56M/125Khz non-contact RF card reader and 1D/2D barcode scanner based on barcode recognition, RFID radio frequency identification technology and Bluetooth communication. Low power consumption, up to 3 days long standby time, no need traditional wired date transmission, also no need additional power supply (built-in Li-battery), just need Bluetooth pairing between receiving device and reader, then it will transmit the UID of RFID card to devices directly.
Features
No need password, easy pairing.
Long distance transmission, stable 10 meters.
Long standby time, when fully charged. (8 hours charging, 3 days standby).
Fast transmission, plug and play.
Easy charging with phone charger.
Default Enter when date output, no need manual click.

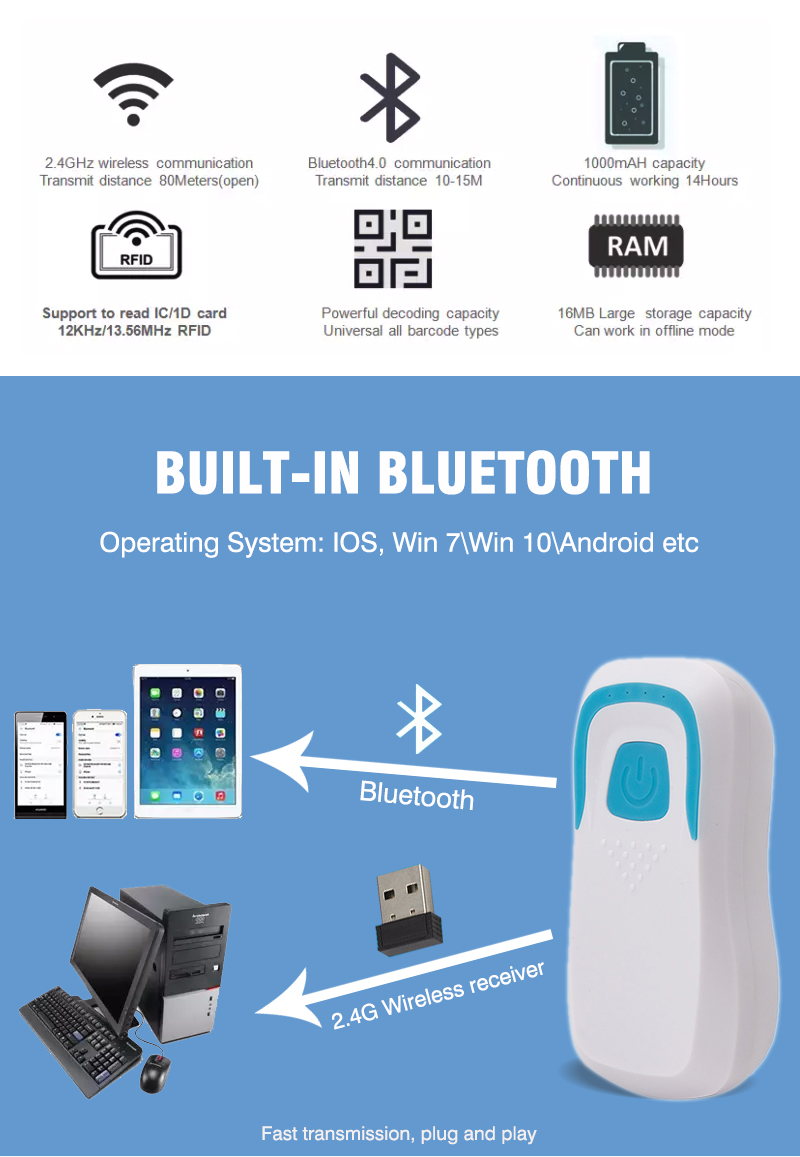

Widely used for Windows, IOS, Android and other Bluetooth enabled devices.
Specification
Model | HR58D:ID(125KHZ) HR58C:IC(13.56MHZ) HR58B:1D/2D Barcode HR58BD:1D/2D Barcode + ID HR58BC:1D/2D Barcode + IC |
Frequency | 125KHZ/13.56MHz |
Card Type | S50/S70/Ntag203/Ntag213 |

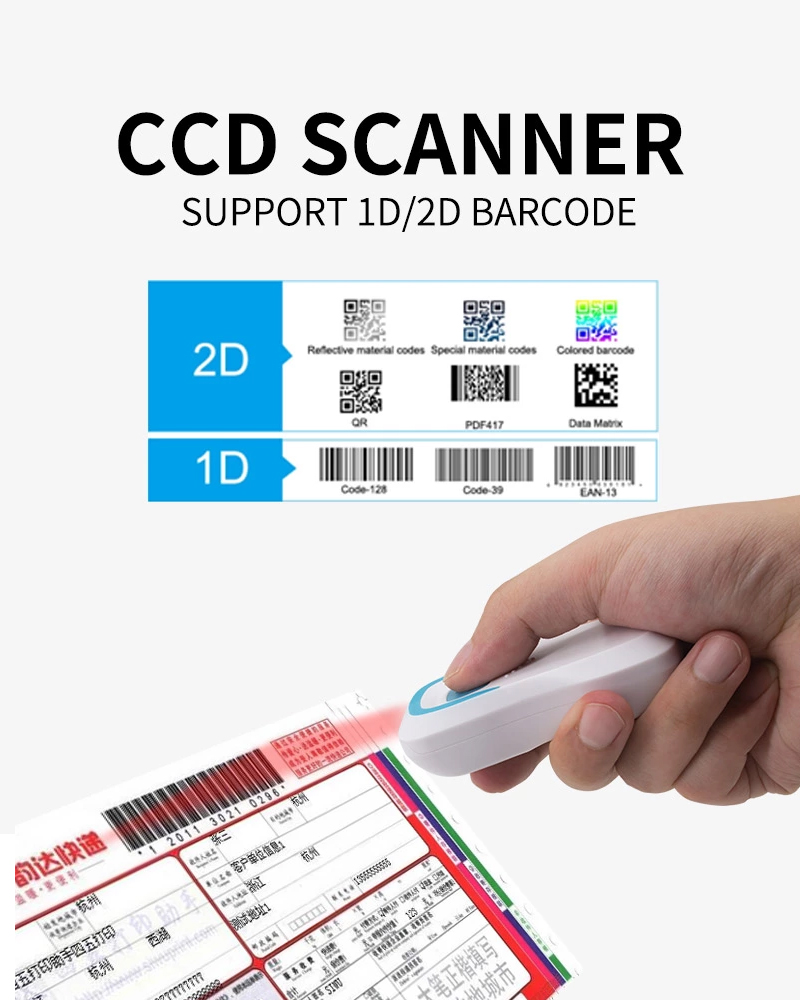

Decode Capability: | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, China post etc. 2D: QR Code, Data Matrix, etc |
Communication | Bluetooth/2.4G |
Format | Default 8-bit hex system (format customizable, like 10-bit 10 system/10-bit hex system etc) |

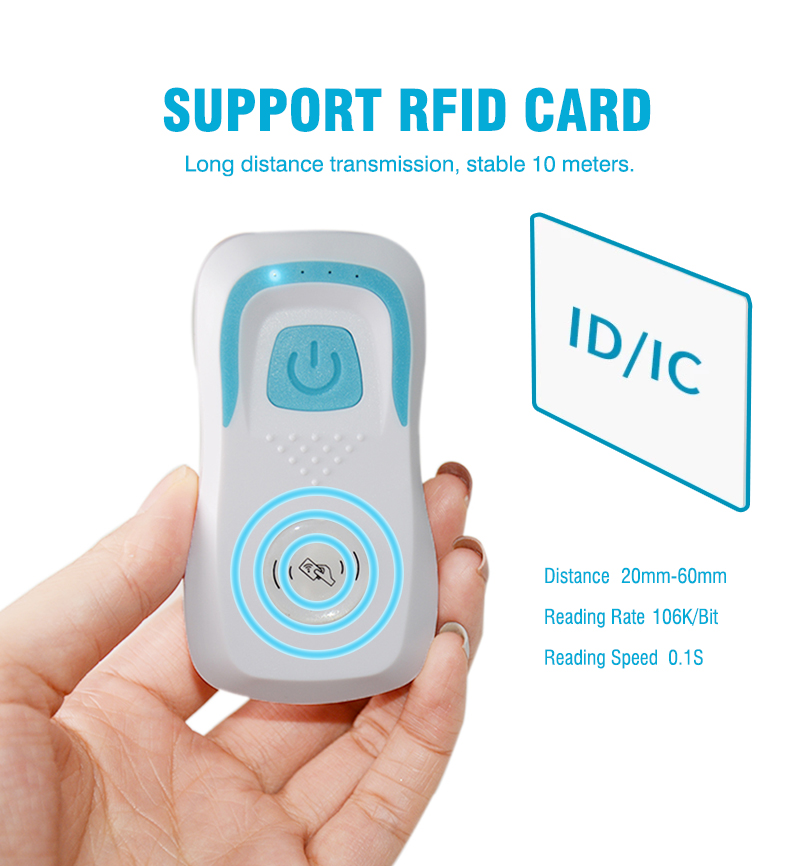

Distance | 20mm-60mm (depend on card type) |
Reading Rate | 106K/Bit |
Reading Speed | 0.1S |
Reading Interval | 0.5S |
Reading Time | ＜100mS |
Working Temperature | -20℃—70℃ |
Working Current | 100mA |
Charge Voltage | 5V |

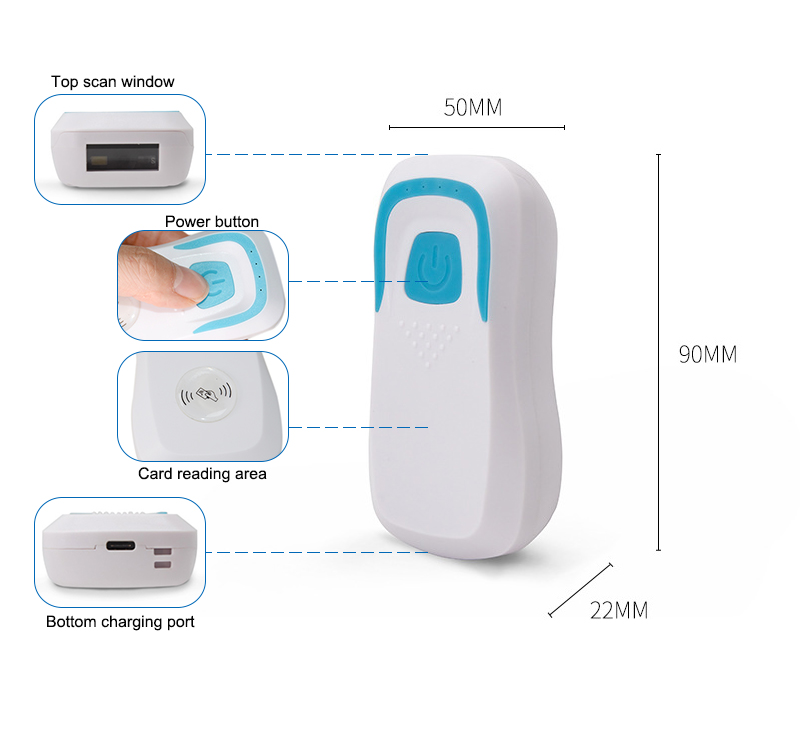

Dimensions | (product)/142mm×90mm×61mm (package) |
Weight | 50G (product)/150G (package) |
Operating System | IOS, Win 7\Win 10\Android, etc |
Others | Status indicator: 4-colors LED (white:connection status, red:scan confirmation, blue: indicator, green:power Built-in buzzer |
