M6 PLUS supports for all types of payment including Magnetic Stripe Card, IC Card (Contact & Contactless) and others
| Quantity: | |
|---|---|
M6 Plus
HCCTG

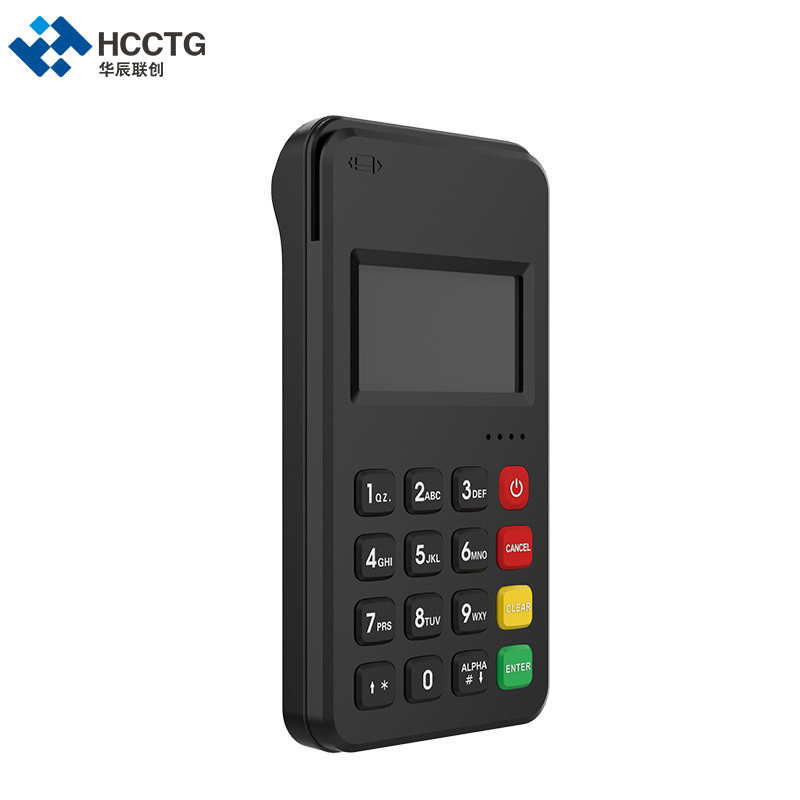

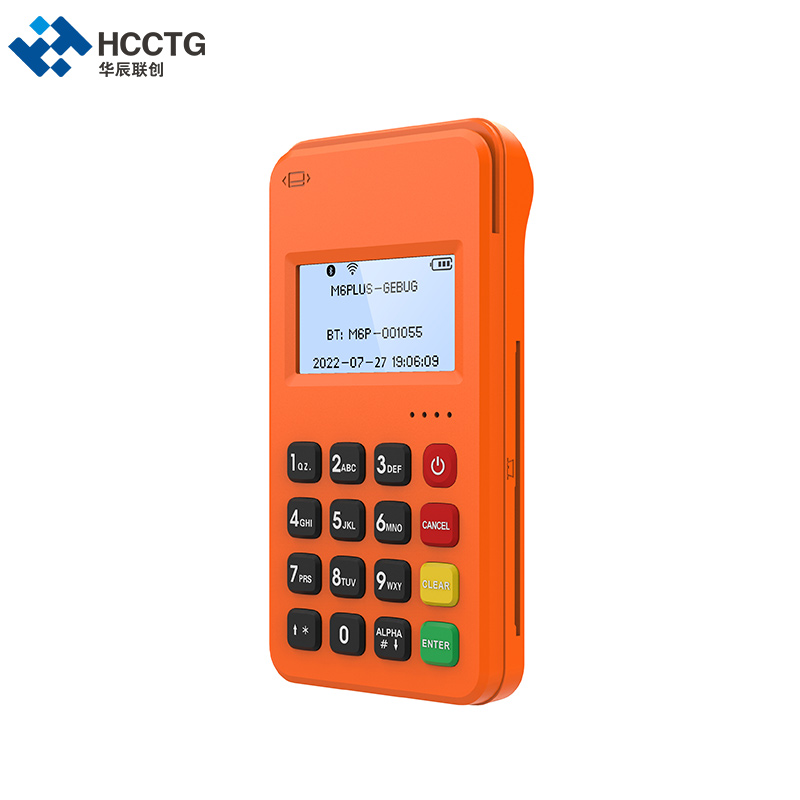

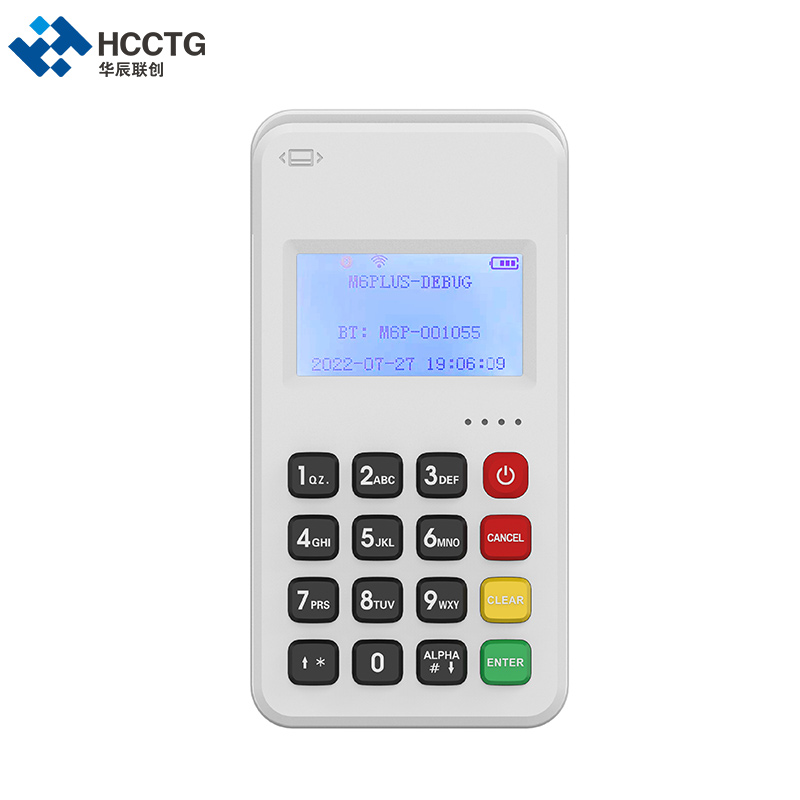

WiFi EMV PCI Magnetic/IC/NFC Card Payment Terminal MPOS M6 PLUS

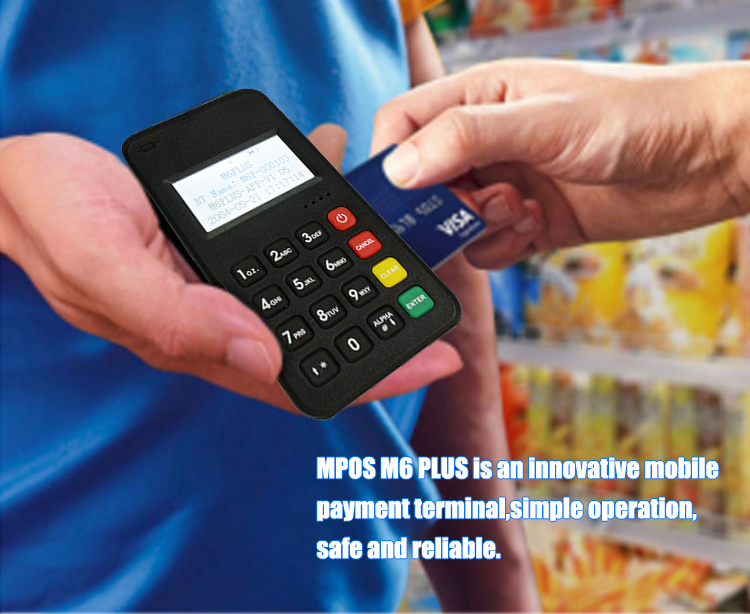

M6 PLUS combined with multiple applications and networks while providing portable intelligent mobile inquiry solution, it is small and portable, simple operation, safe and reliable.
It's well compatible with external access to the Cash register system, Electronic Voucher Distribution, E-Voucher, E-Payment, E-Wallet, Money Transfer, Mobile Money, Mobile Payment, Mobile Recharge in Banks, Securities centers, Retail Stores, Restaurants, Lotteries, Clothing stores.
Features

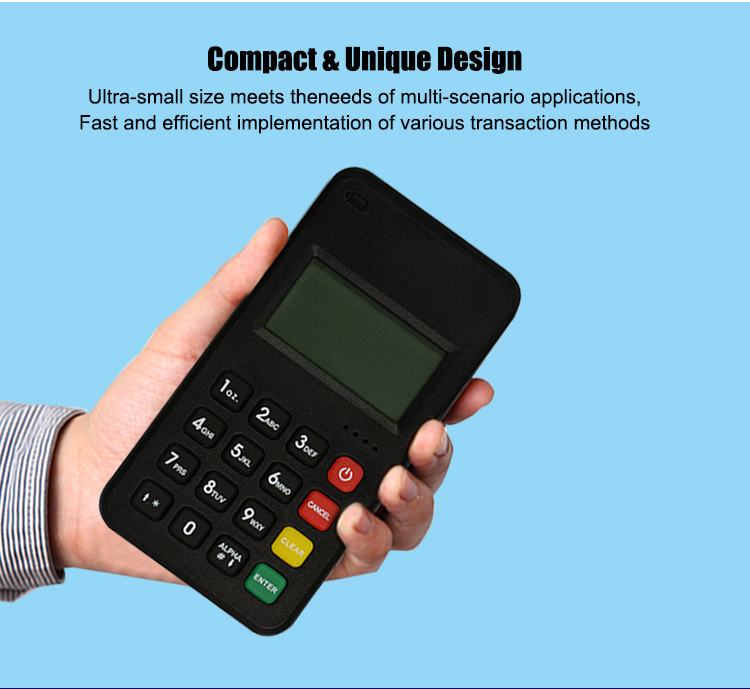

Simple and Practical: Well-Designed, Large Button Design, Convenient Input.
Wireless Connection: Connects with mobile phone via Bluetooth: free from cables and improving payment experience.

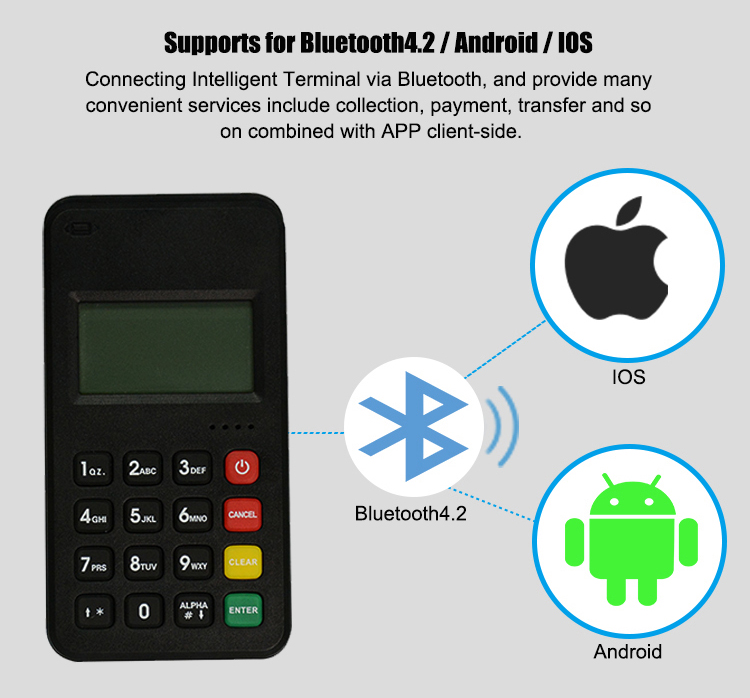

Comprehensive Adaption: Supports for Bluetooth: 4.2, Android, IOS;

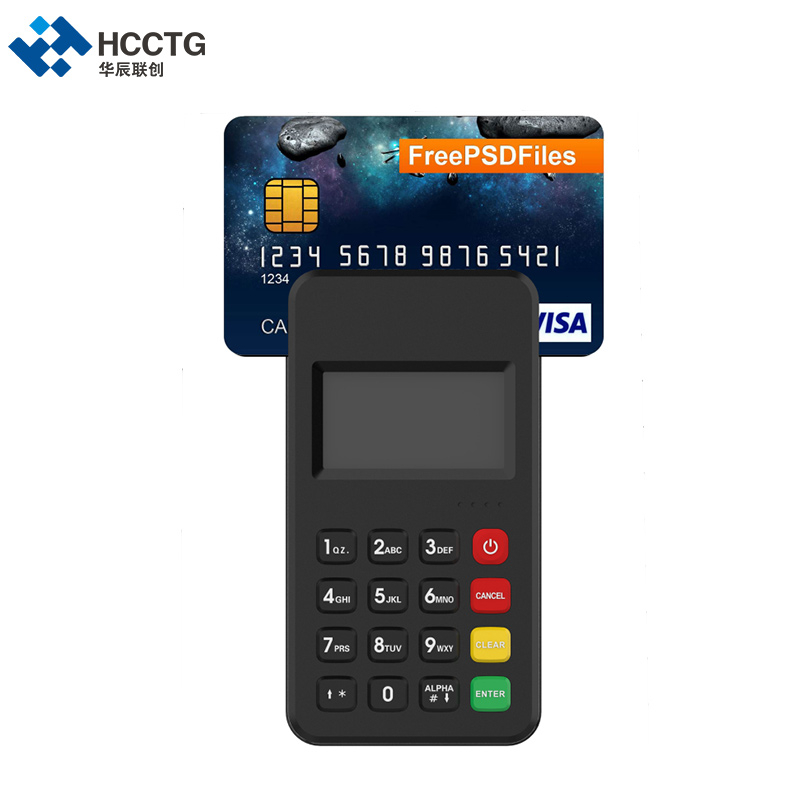

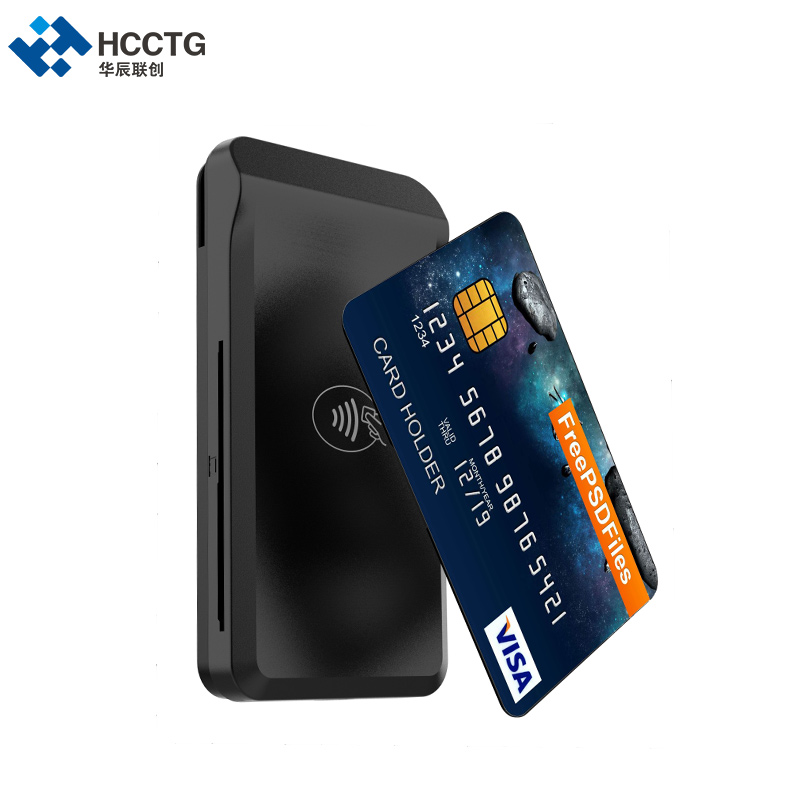

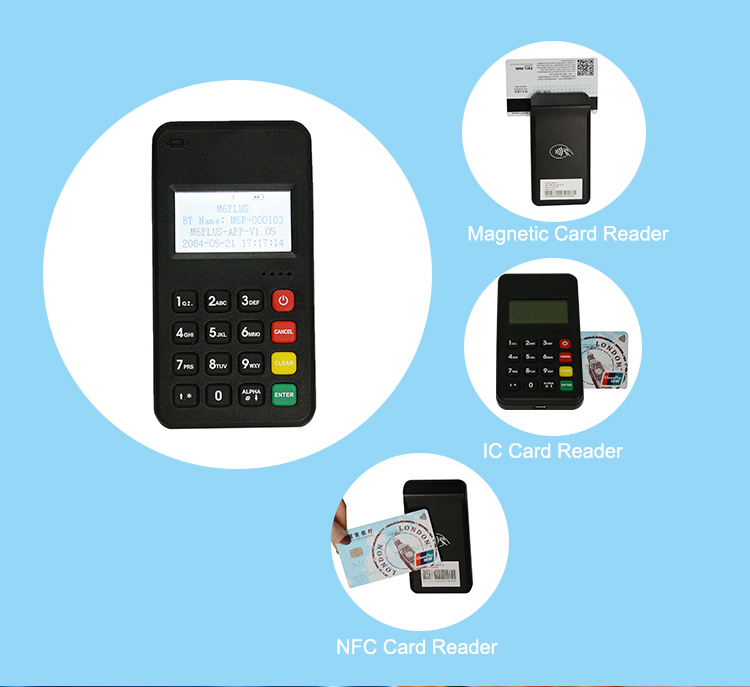

Exceptional Functions: Supports for all types of payment including Magnetic Stripe Card, IC Card (Contact & Contactless) and others.
Security Guarantees: Built-in high-grade security chip, dynamic state PSAM slot configuration to keep safe transaction.
Specification
Processor | 32-bit ARM Processor |
Memory | 256KB SRAM+512KB Flash External Storage: 4MB Flash |
Display | 128*64 lattice LCD display |
Support CardType | IC card (ISO 7816) NFC card (ISO 14443A/B) Magnetic card with track 1/2 (Track1/2/3 at optional) |
Communication | Bluetooth4.2, WiFi(optional) |
Battery | 300mAh,3.7V |
Keys/Buttons | 10 numeric keys,5 function keys,1 power on/off key |
Audio | 1 Buzzer |
Camera | Optional |
Ports | 1 USB Type-C |

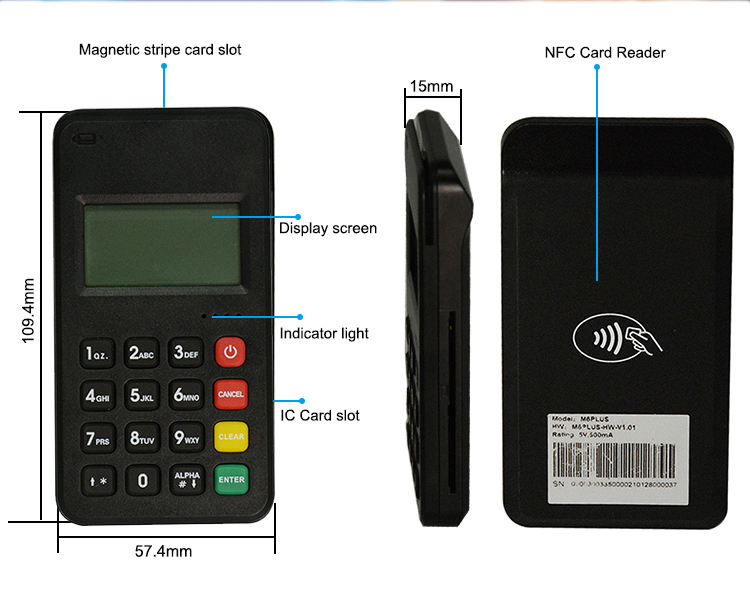

Physical | 109.4*57.4*15mm , 80g(including battery) |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 70°C |
Humidity | 10%~93%Relative Humidity, Non-condensing |
Accessories | 1 USB Cable |

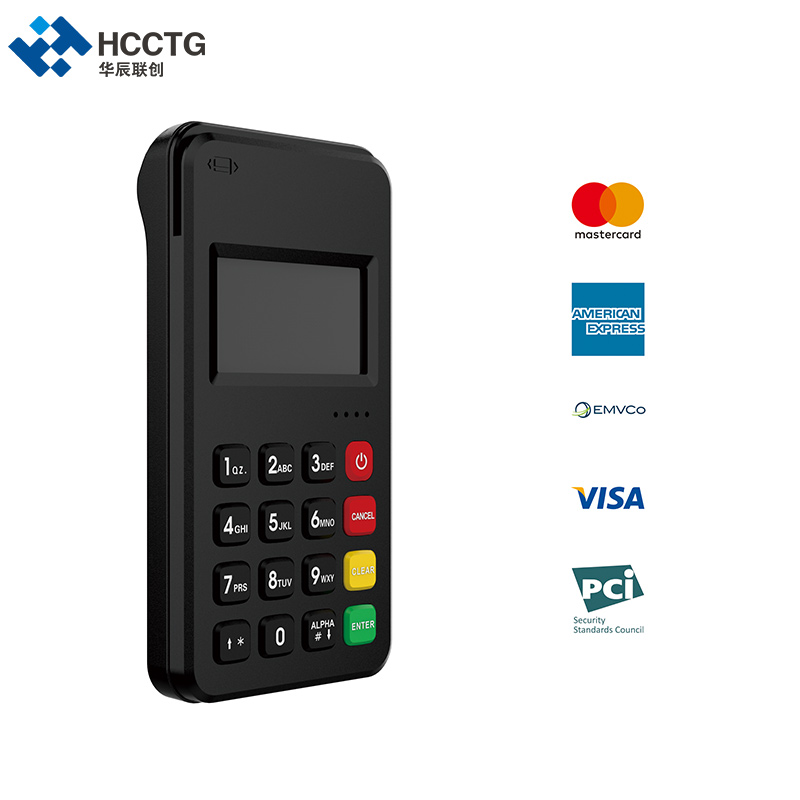

Certifications | PCI PTS 6.x, SRED EMV L1 & L2 EMV Contactless L1 Visa paywave Mastercard contactless Mastercard TQM CE RoHS |
