ACR1311U-N2 combines the latest 13.56 MHz contactless technology with Bluetooth Smart connectivity.
| Quantity: | |
|---|---|
ACR1311U-N2
HCCTG

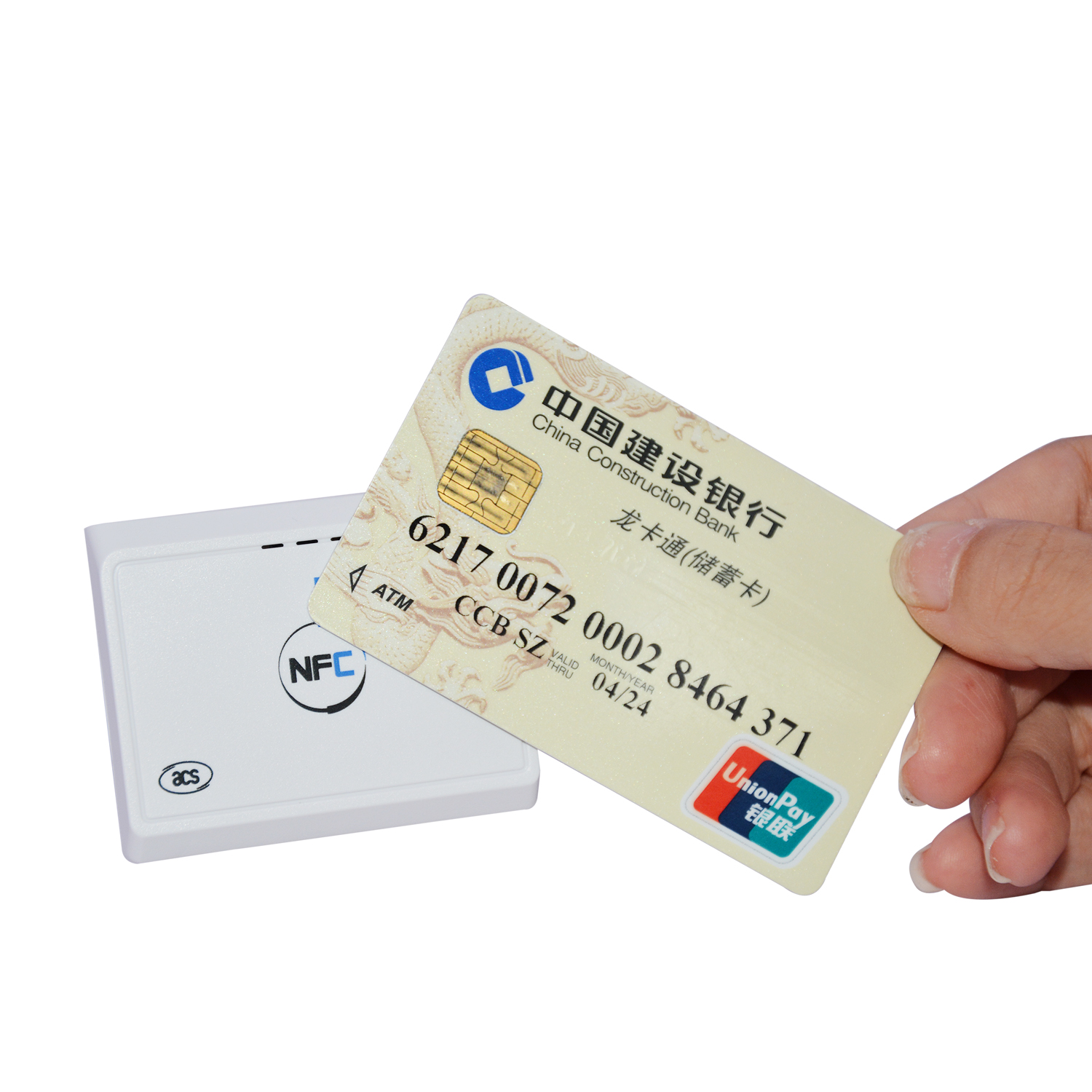

Bluetooth RFID NFC ACS Smart Card Reader MPOS ACR1311U-N2
The ACR1311U-N2 is a versatile NFC reader that supports ISO 14443 Type A and B smart cards, as well as MIFARE, FeliCa, and most NFC tags and devices compliant with the ISO 18092 standard. With its wide range of capabilities, the ACR1311U-N2 is an excellent choice for various applications including hands-free verification for physical and logical access control, as well as inventory tracking.

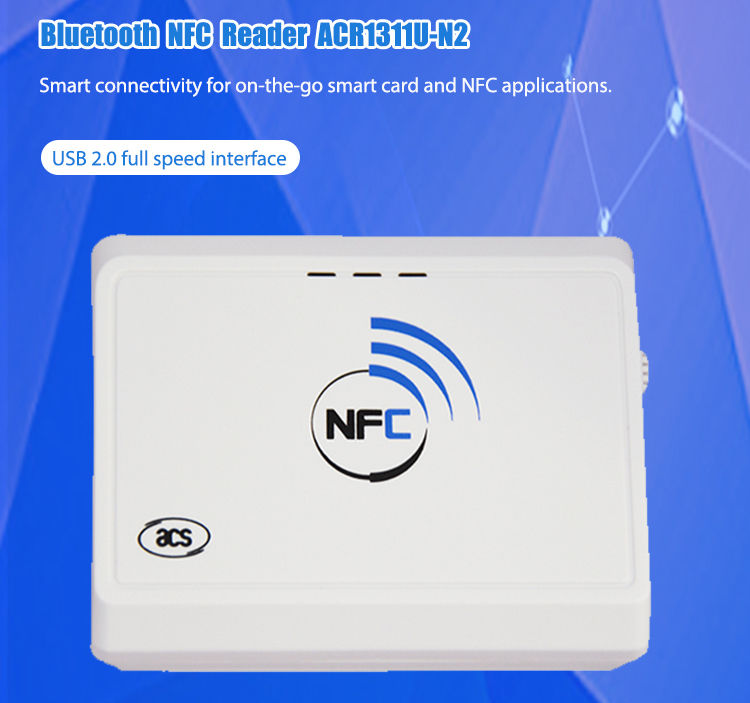

Featuring Bluetooth Smart connectivity, the ACR1311U-N2 Bluetooth NFC Reader combines cutting-edge 13.56 MHz contactless technology with on-the-go smart card and NFC applications. This makes it a convenient solution for mobile point of sale (MPOS) manufacturers and businesses seeking to enhance their NFC and RFID capabilities.
By utilizing the ACR1311U-N2, businesses can benefit from its seamless integration of contactless technology and Bluetooth Smart connectivity, enabling efficient and secure transactions on the move. Its compatibility with various smart cards, NFC tags, and devices compliant with industry standards ensures versatility and ease of use across a wide range of applications.
Technical Specification
Physical characteristics | |

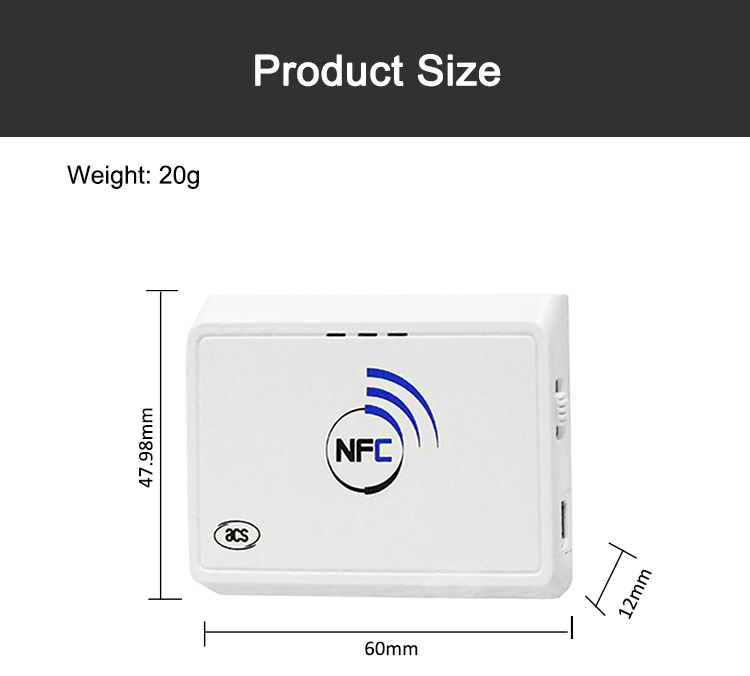

Dimensions | 60mm(L)×47.98mm(W)×12mm(H) |
Weight | 20g |
Color | White |
Bluetooth Interface | |

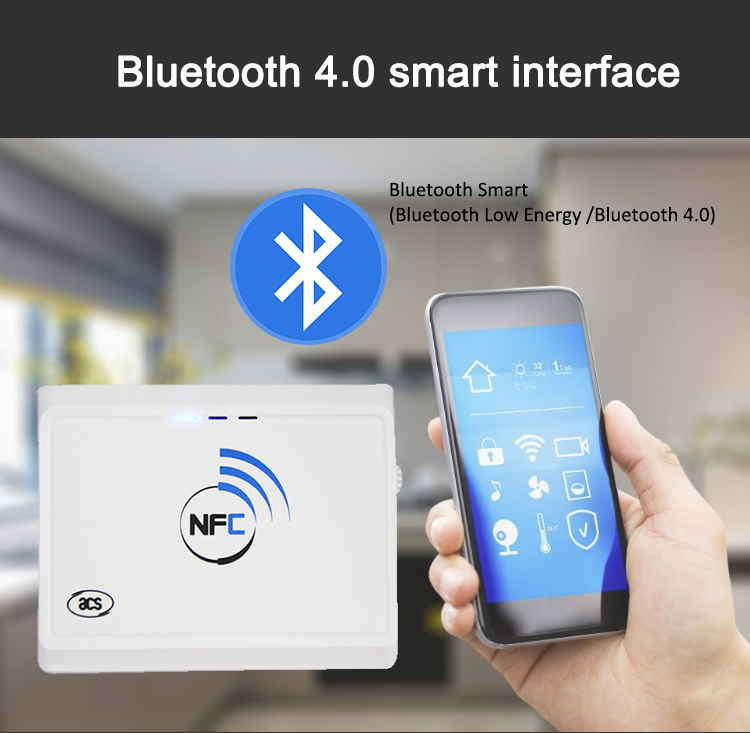

Protocol | Bluetooth Smart (Bluetooth Low Energy /Bluetooth 4.0) |
Power Source | Rechargeable Lithium-ion Battery (Charging through USB) |
Speed | 1Mbps |
USB Host Interface | |
Protocol | USB Full Speed |
Type | Four Line:+5V,GND,D+ and D- |

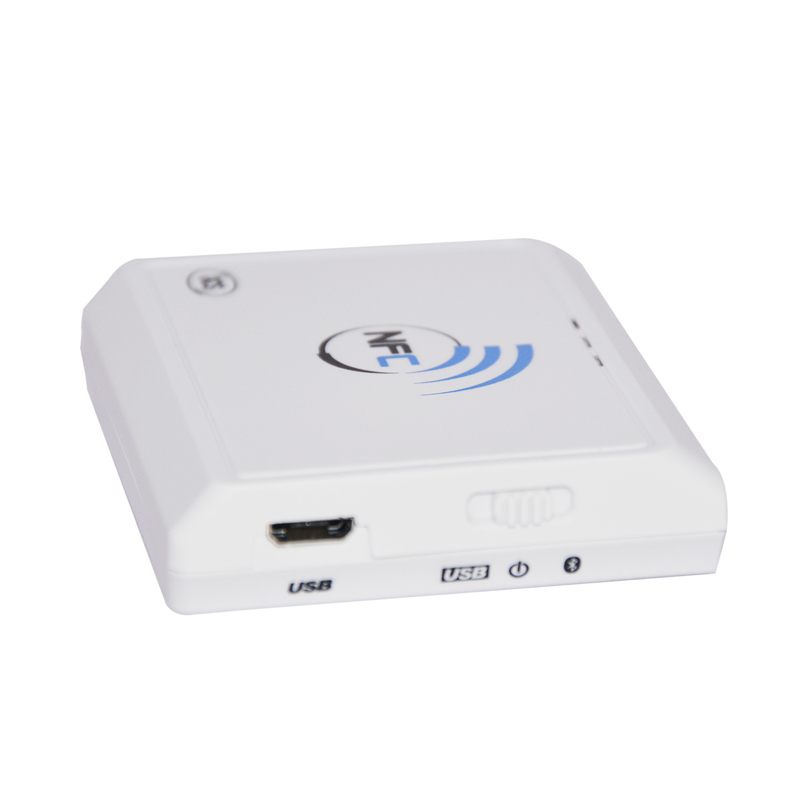

Connector Type | Micro USB |
Power Source | From USB Port |
Speed | USB Full Speed (12 Mbps) |
Cable Length | 1 m (Datachable) |
Firmware | Upgradeable through USB Interface |
Contactless Smart Card Interface | |

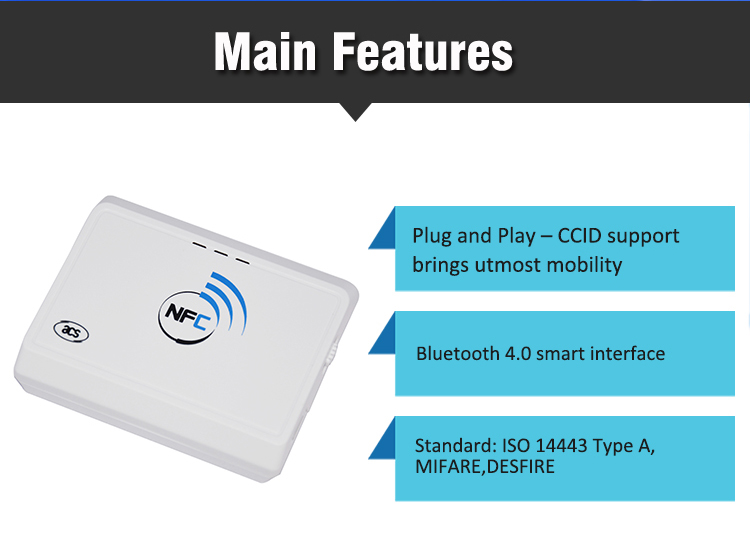

Standard | ISO 14443 Type A,MIFARE,DESFIRE |
Protocol | ISO 14443 T=CL for ISO14443-4 compliant cards, and T+CL Emulation for MIFARE Classic 1k/4k and NFC tags |

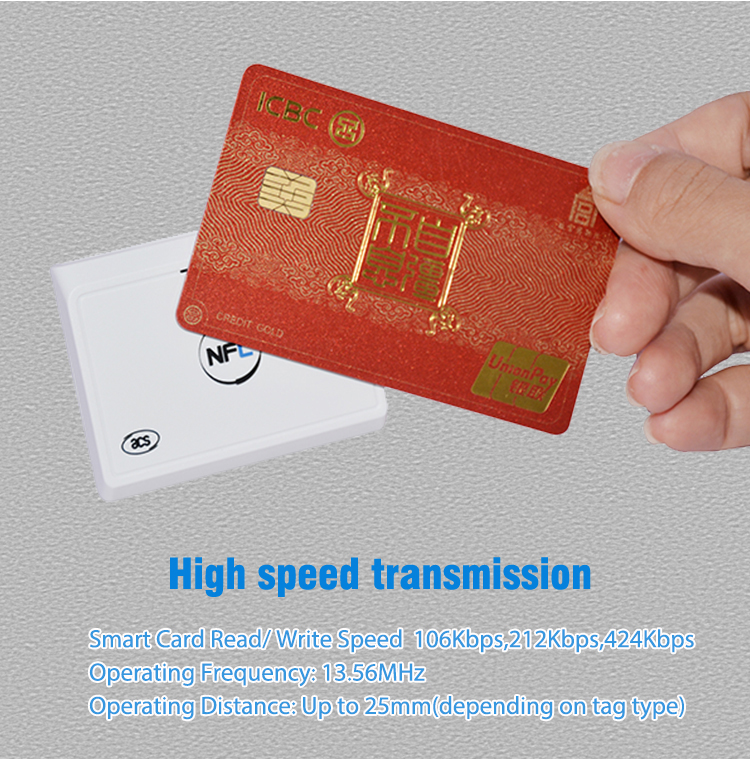

Operating Frequency | 13.56MHz |
Operating Distance | Up to 25mm(depending on tag type) |
Smart Card Read/ Write Speed | 106Kbps,212Kbps,424Kbps |
Antenna Size | 28.00mm×32.00mm |
Built-in Peripherals | |
LED | 2bi-color, Red and Blue,Red and Green |
Buzzer | Monotone |
Operating Conditions | |
Temperature | 0℃-50℃ |
Humidity | Max.90%(non-condensing) |
MTBF | 500,000 hrs |
Application Programming Interface | |
PC-link Mode | PC/SC CT-API(through wrapper on top of PC/SC) |
Certifications/Compliance | EN60950/IEC 60950,ISO 14443,USB Full Speed,Bluetooth Smart, PC/SC,CCID,RoHS 2, REACH, Microsoft WHQL |
Device Driver Operating System Support | WindowsME,Windows98,Windows2000,WindowsXP,WindowsVista,Windows7,Windows8,Windows8.1,Windows10,WindowsServer2003,WindowsSever2008,Windows,Sever2008R2,WindowsSever2012,WindowsSever2012R2,Linux,Mac OS, Android, iOS |
