HCC-EU807 has side-opening method which makes it easier to load and change paper
| Quantity: | |
|---|---|
HCC-EU807
HCCTG

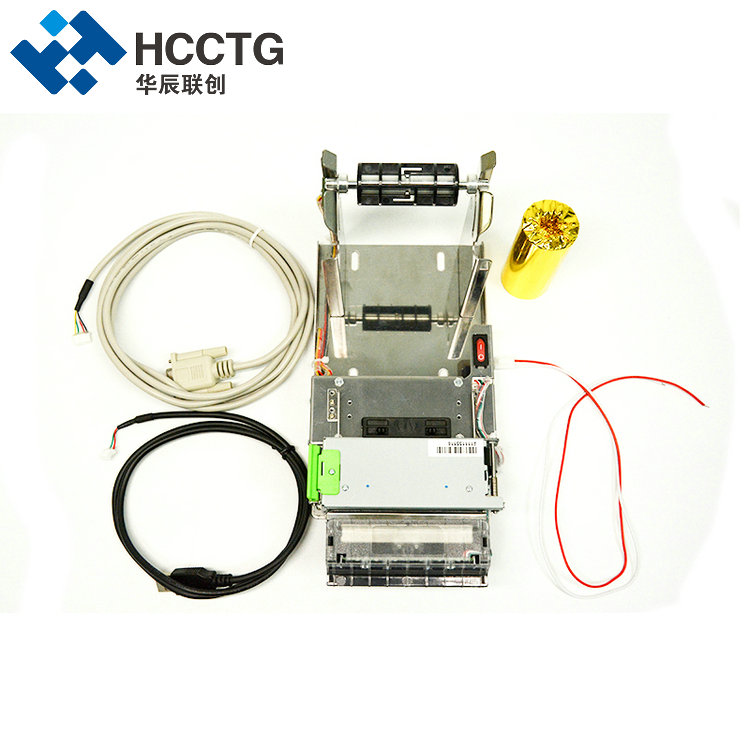

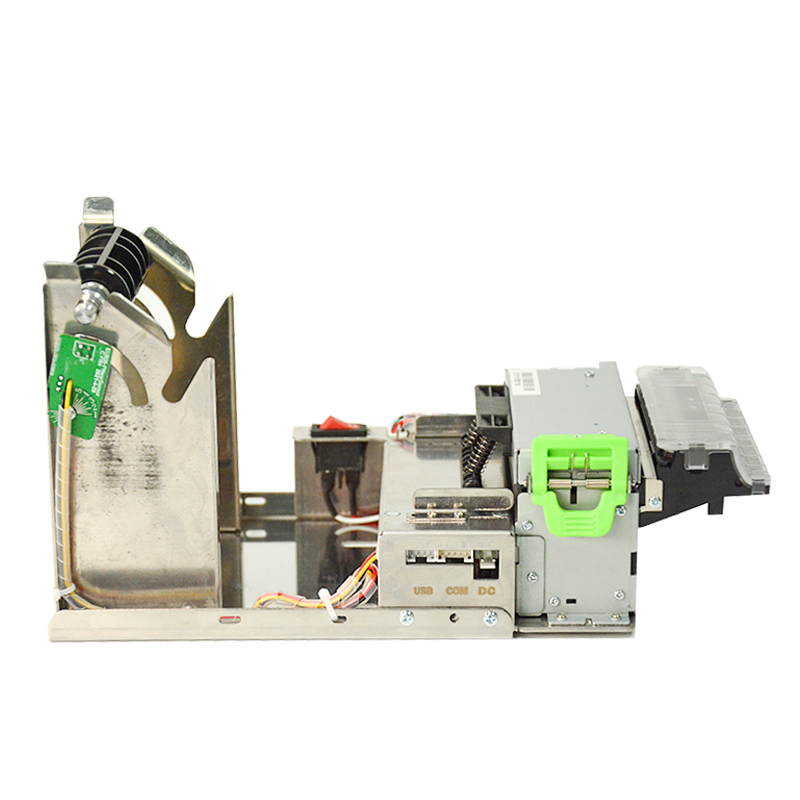

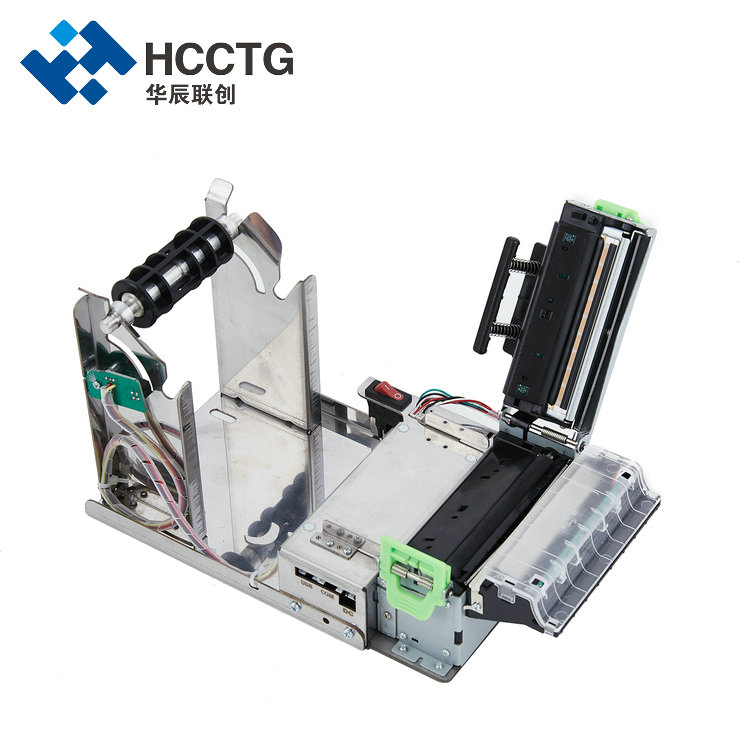

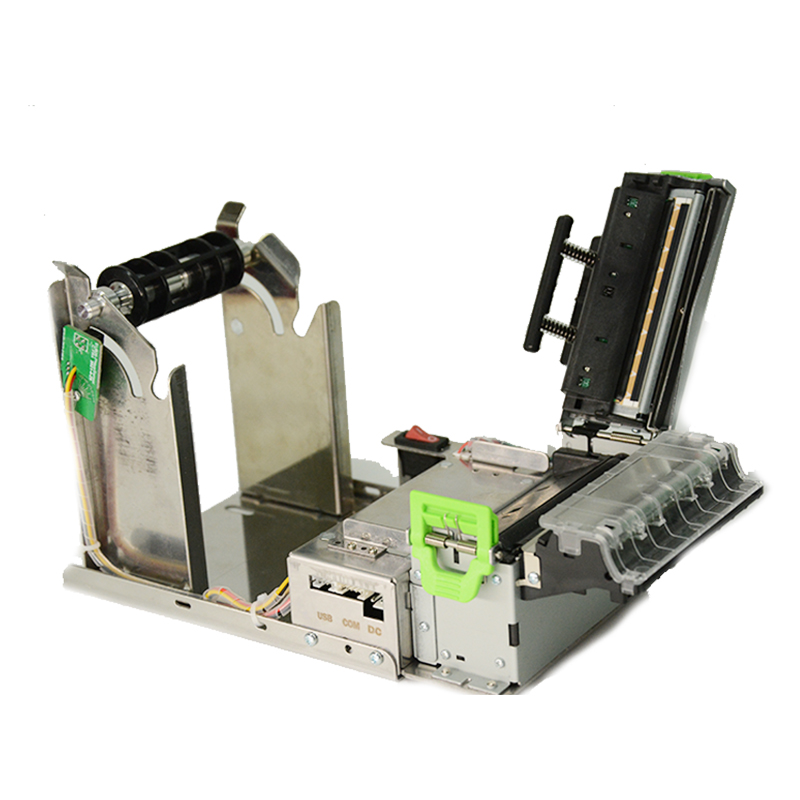

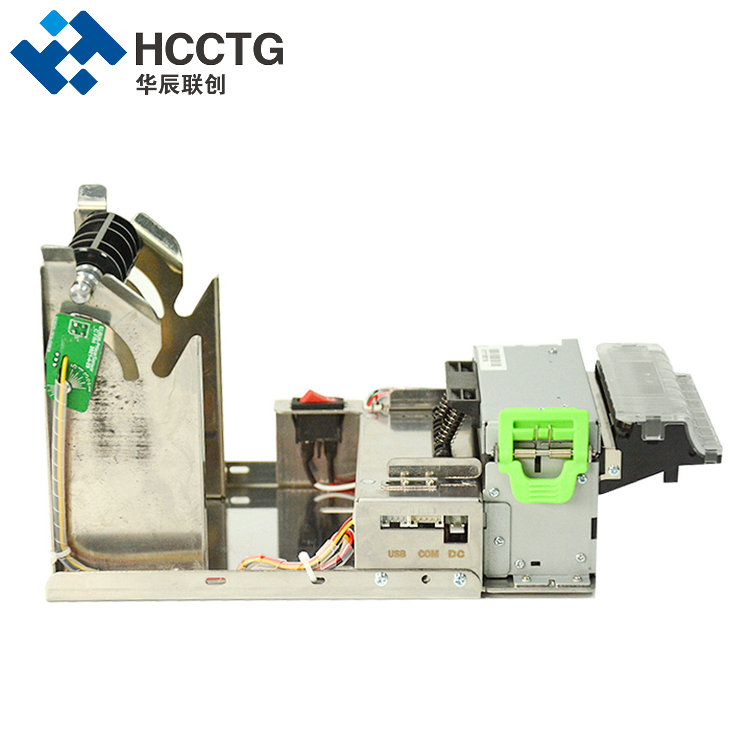

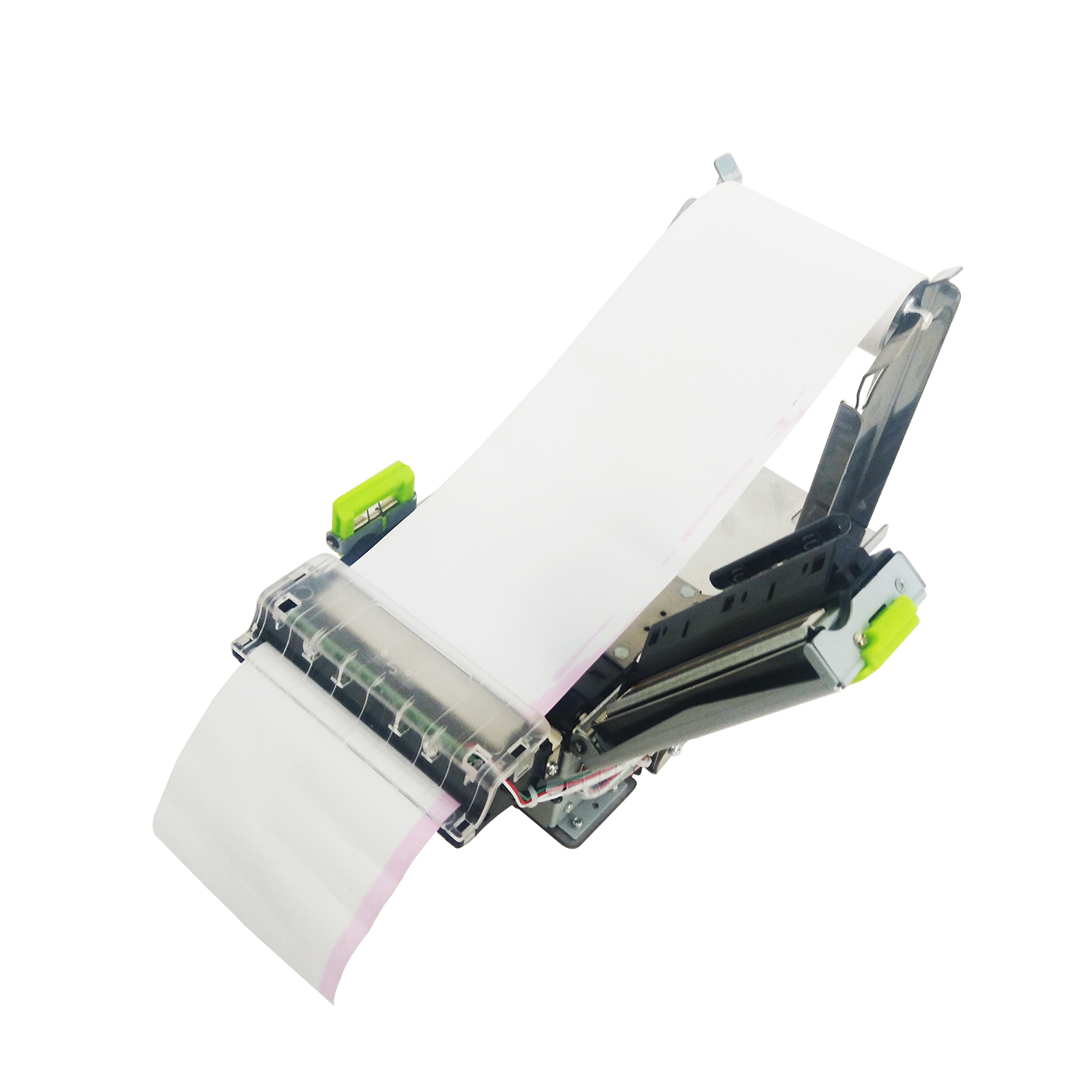

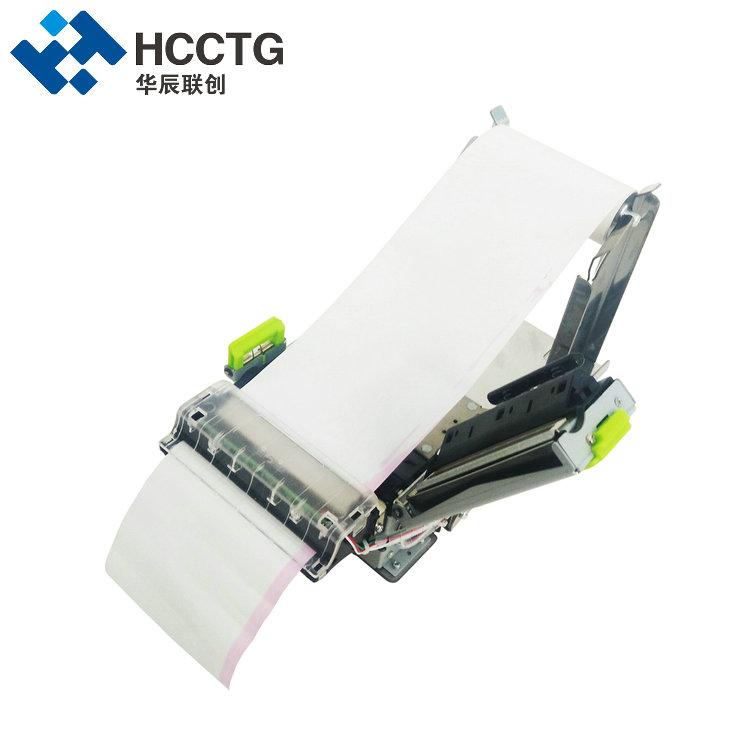

200mm Paper Diameter Embedded Auto Cutter Kiosk Thermal Printer HCC-EU807
HCC-EU807 has Paper feed at 180 degrees, avoid paper jams and Anti-pulling, anti-blocking paper outlet. Besides, it's with buffer component which makes paper output smoother and more stable.
Features:
Thermal Kiosk Printer Range
Multiple fixing points provided - for easy integration
54, 58 or 60mm paper width versions - to suit various applications
Thicker paper version available (KPST) - for ticketing solutions
Auto loading, straight paper path - for easy maintenance and improved reliability
Full or partial cut guillotine - for ticketting, dispensing operations
Front paper exit - printer mounts behand front panel
Paper Roll Holder option (KPSH) - saving development time & production costs
Specification
Printing Method | Thermal Line |
Resolution | 8 dots/mm, 576 dots/line |
Printing Speed | 250 mm/s (25% Print Density) |
Printing Width | 57.5±0.5mm, 79.5±0.5mm, 82.5±0.5mm |
Paper diameter | 200mm (Max) |
TPH | 100km |
Paper supply Method | Manual |
Print Font | ASCII: 9 x17, 12 x 24, 8 x 16 |
Barcode | 1D:UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODABAR, CODE93,CODE128 2D: PDF417,QRCODE,Data Matrix |
Interface | RS232+USB |
Power supply | DC24V±10%, 2A |
Auto Cutter Type | Guillotine |
Cutting Method | Partial Cut / Full Cut |
Auto Cutter Life | 1,500,000 Cut |
Operating Temp/Humidity | 0～50℃/10～80% |
Storage Temp/Humidity | -20～60℃/10～90% |
