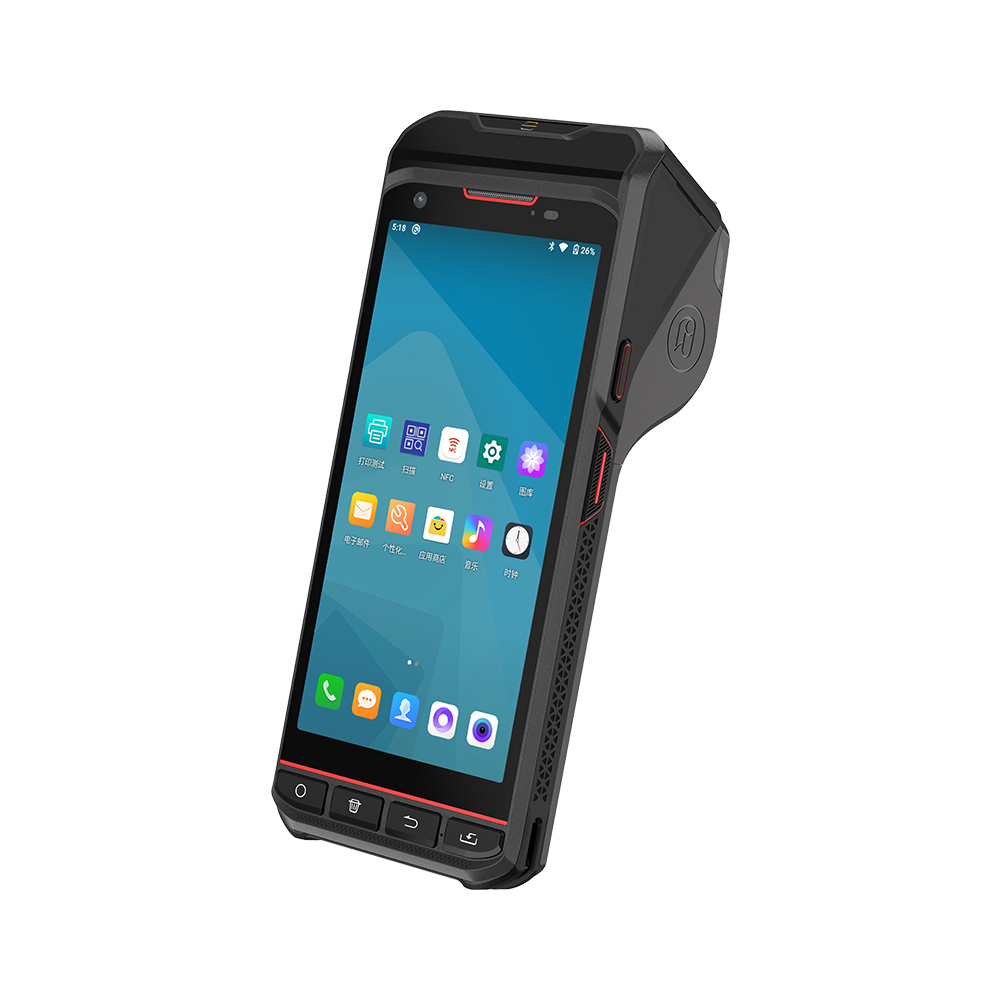

Integrated Handheld Terminal HCC-S70 is a powerful device that combines the functionalities of a label printer and a handheld terminal. It is specifically designed for applications that require mobile printing and data collection, such as inventory management, logistics, retail, and healthcare.
| System: | |
|---|---|
| RAM+ROM: | |
| Communication: | |
| GPS: | |
| Quantity: | |
HCC-S70
HCCTG
HCC-S70 The label printer integrated handheld terminal has 5.5 inch HD durable large display, Wifi and Bluetooth 5.0. The operating system is android 13 and it has 2G, 3G & 4G full-netcom. NFC reader, barcode reader and camera.
Features
Android 13 system
Sticker one-piece printing
5.5-inch HD Durable large Display
Specifications
Performance | |
CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor |
RAM+ROM | 2GB+16GB Supports up to 4GB+64GB |
Expand memory | Micro SD(TF) Supports up to 128GB |
System | Android 13(Android 10 at optional) |
Data communication | |
WLAN | Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol |
WWAN | 2G:GSM (850/900/1800/1900mhz) |
3G:WCDMA (850/900/1900/2100mhz) | |
4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 | |
Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
GNSS | Support Gps, Galileo, Glonass, Beidou |
Data collection | |
Barcodescanning(Optional) | |
2D Imager scanner | Newland E483 Honeywell N5703 N6703, 6602 |
| 2D Symbologies | PDF417, Micro PDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, Maxicode, Hanxin Code,etc. |
| 1D Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc. |
Thermal sticker printer | |
Printing speed | 70mm/s |
Print points | 384 dots |
Paper width | 58mm |
Paper diameter | 35mm |
Paper type | Support for Sticker / label Black mark printing or receipt printing |
Camera | |
Rear camera | 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
Front camera | 2MP color camera |
NFC (optional) | |
Frequency | 13.5MHz±7kHz |
Security module | Radio frequency technology |
Distance | 0-5cm |
Radio frequency technology | Comply with ISO/IEC 14443 type B standard, GA450-2003 General Technical Requirements for desktop ID card Reader, 1GA450-2003 General Technical Requirements for desktop ID Card Reader Amendment No. 1 (draft) |
Language/input method | |
Input | English,Pinyin,Five strokes,Handwriting input,Support soft keypad |
Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc. |
Physical parameter | |
Dimensions | 179mm * 74.5mm * 22.5mm (the thinnest) 49.5mm (the printing part) |
Weight | ＜500g (Depends on device function configuration） |
Display | 5.5 inch IPS color display with resolution 720*1440 |
TP | Corning gorilla glass, Supports multi-touch Supported gloves and wet hands |
Battery capacity | Rechargeable polymer battery 7.6V 2750mAh (equal to 3.8V 5200mAh), removable |
Standby time >350 hours | |
Working time > 12 hours | |
Charging time 3-4H, Using standard power adapter and data cable | |
Expansion Card slot | Nano SIM card * 1 , TF card * 1, PSAM * 2 (optional) |
Communication interface | Type-C USB x 1, OTG |
Audio | Speaker (mono), Microphone, Earpiece |
Keypad | Silicone button: Power button, Volume +/- button, Scan button × 2 |
Sensors | Gravity sensor, Light sensor, Proximity sensor, Vibration motor |
User environment | |
Operating temperature | -20℃ - 55℃ |
Storage temperature | -40℃ - 70℃ |
Environment humidity | 5%RH--95%RH(no condensation) |
Drop specification | 6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature |
Rolling test | 0.5m rolling for 6 sides |
Sealing | IP54 |
Accessories | |
Standard | Adapter, Data cable, Protective film, Instruction manual |
