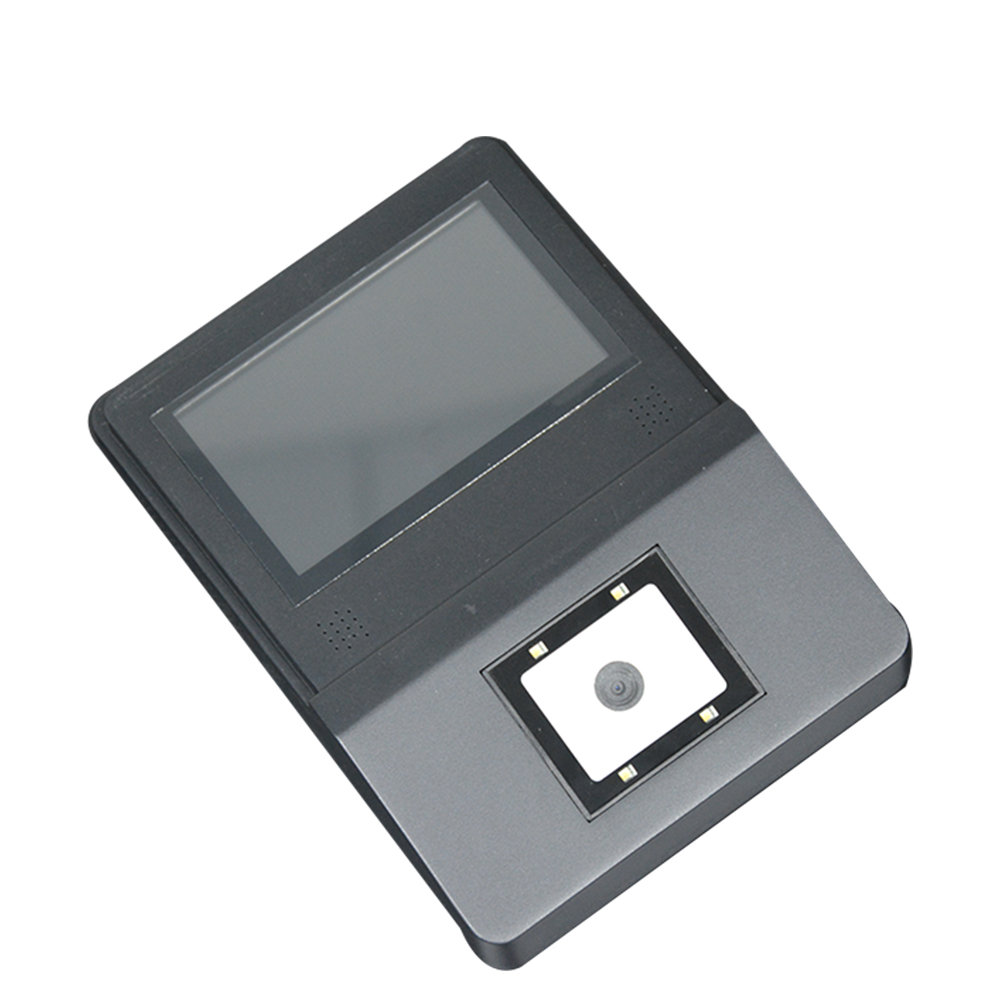

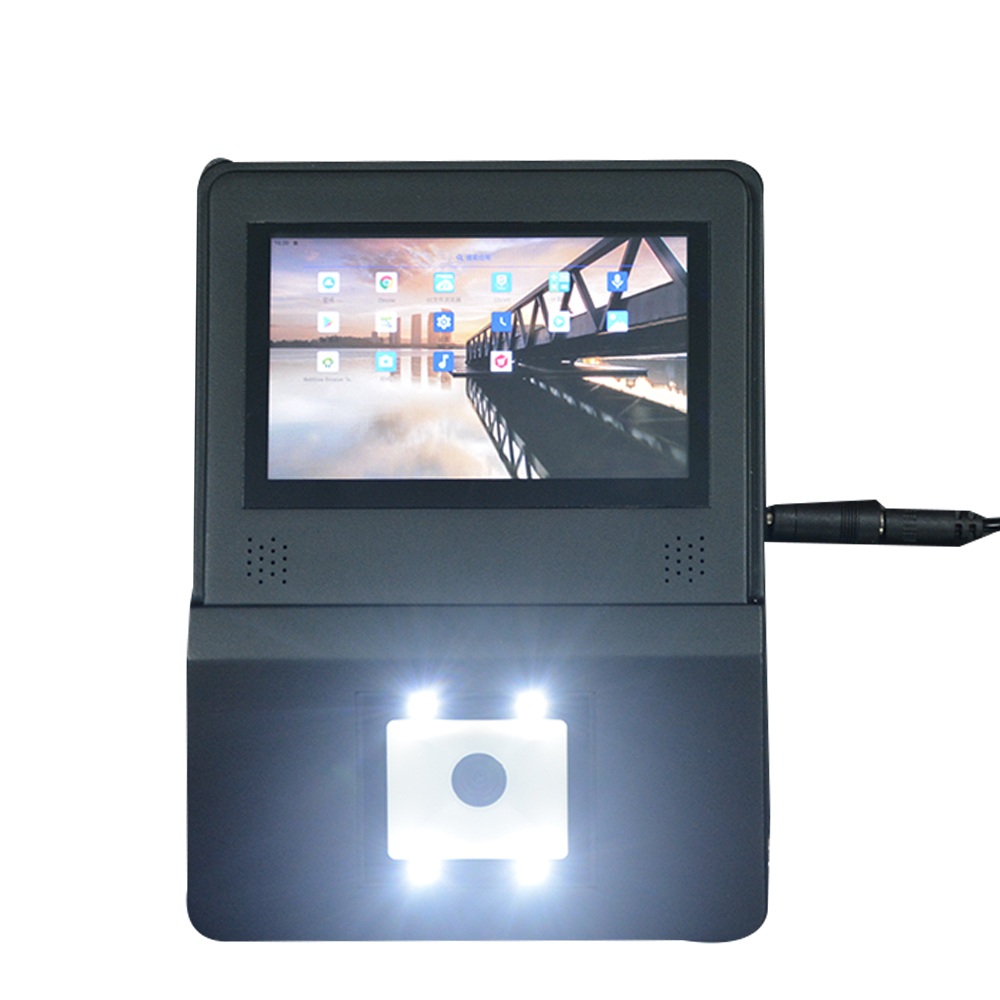

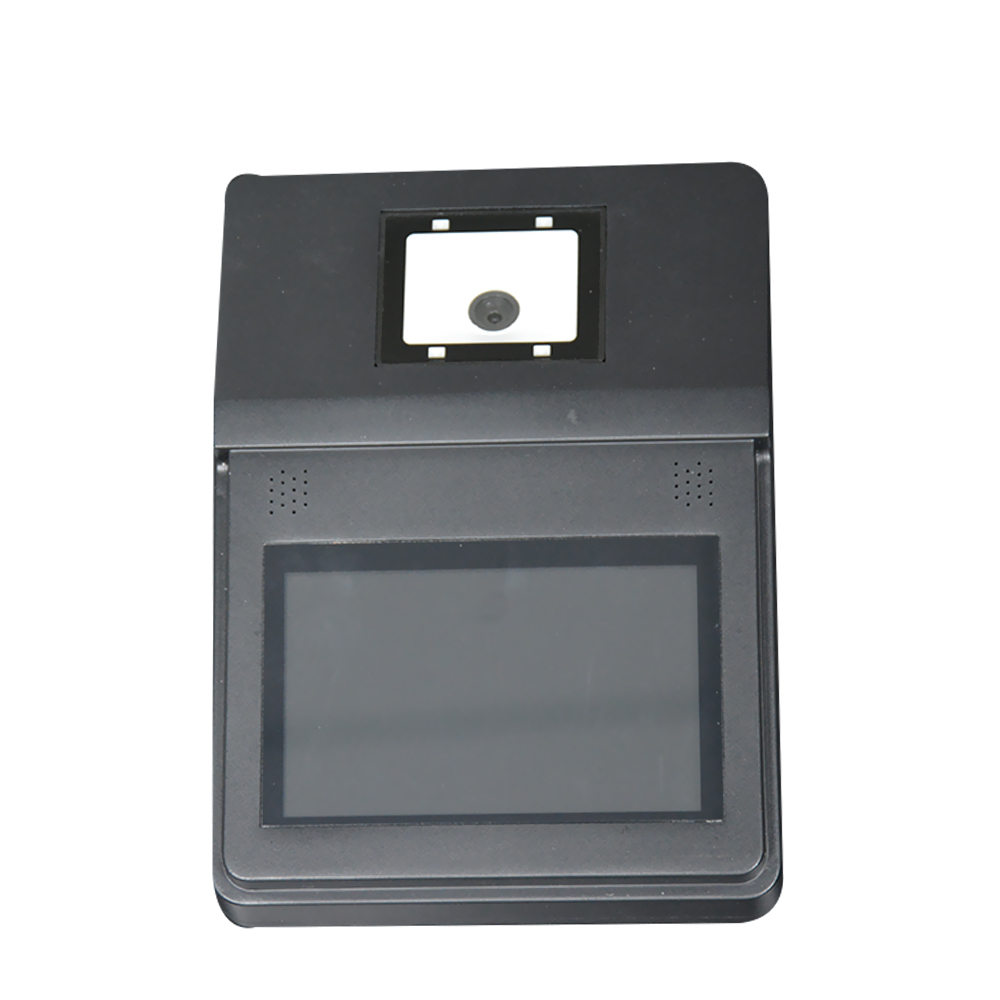

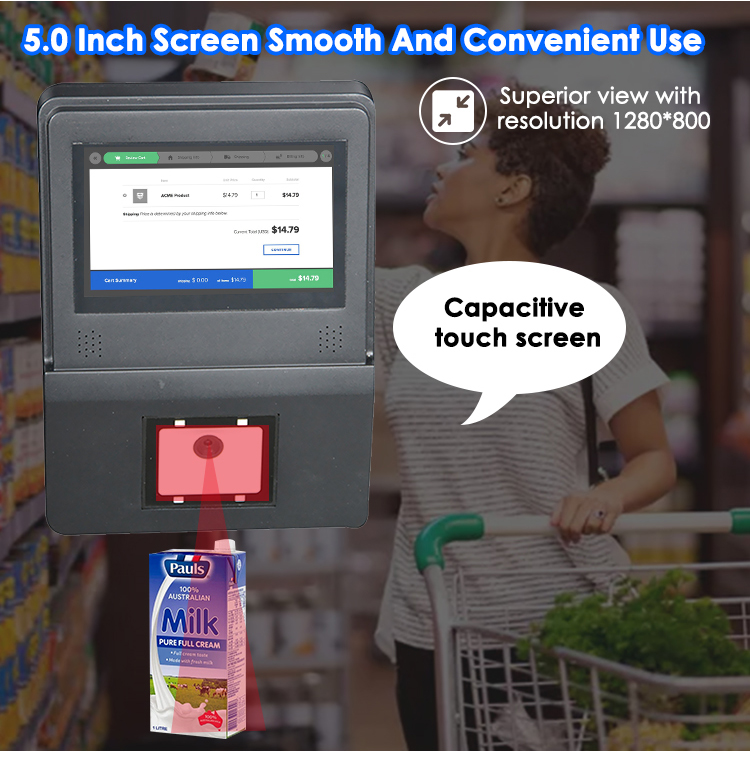

HPC-5 has android 10 Safedroid OS and 5.0 inch TFT IPS LCD, resolution 800*480.
HPC-5
HCCTG
HPC-5 android based price checker wall mount versions, check price while shopping, price checker connect to databse, it supports Lan, WiFi and Bluetooth, massive memory: 1GB RAM + 8GB ROM; 2GB RAM + 16GB ROM ( up to 4GB RAM + 32GB ROM).
Specification
CPU | D133 Quad-Core A53,1.8GHz,28nm |
RAM | 1GB/2GB/4GB optional |
InternalMemory | 8GB/16GB/32GB optional |
OperationSystem | Android 10 |
LCDSize | 5 inch (800x480) |
DriverElemen | a-Si TFT active matrix |
Resolution | 800 × 3(RGB) × 480 |
DotPitch | 0.045(W) ×0.135(H) mm |
ActiveArea | 108.0(W) × 64.8(H) mm |
ModuleSize | 120.7(W) × 76.3(H) × 3.0(D) mm |
SurfaceTreatment | Plant |
ColorArrangement | RGB-stripe |
Panel Power consumption | (0.223 W) |
Backlight Power consumption | (0.868W) |
ViewDirection(Gray Inversion) | 6 O’Clock |
Interface | Digital |
Network | |
WiFi | support |
Ethernet | RJ45 |
Support | RGB/MIPI/EDP/LVDS signal display/MAX 4K |
Bluetooth | support |

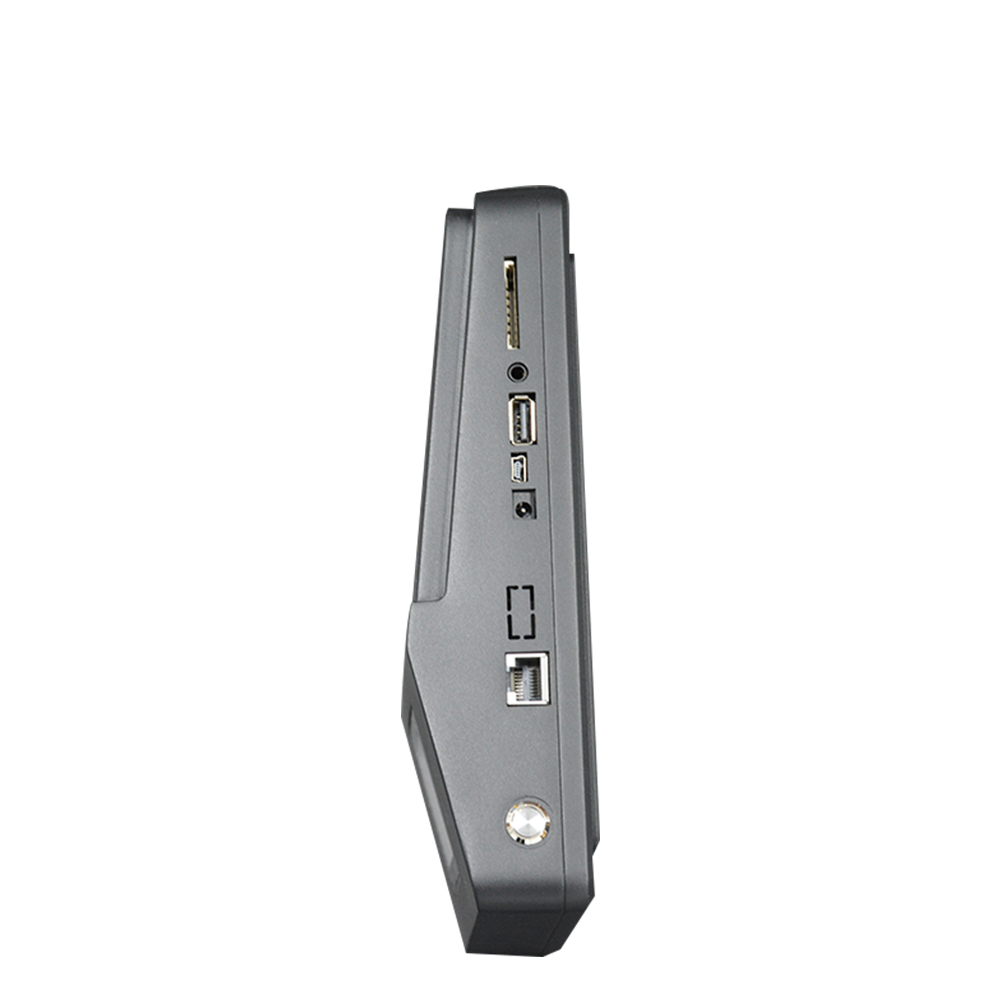

Interfaces | |
USB | USB Host *1 (2.0) |
USB | USB OTG *1 (2.0) |
RJ45 | For connect to Ethernet or POE Power |
POE | Support |
SD slot | Support |
PowerJack | DC power input or POE |

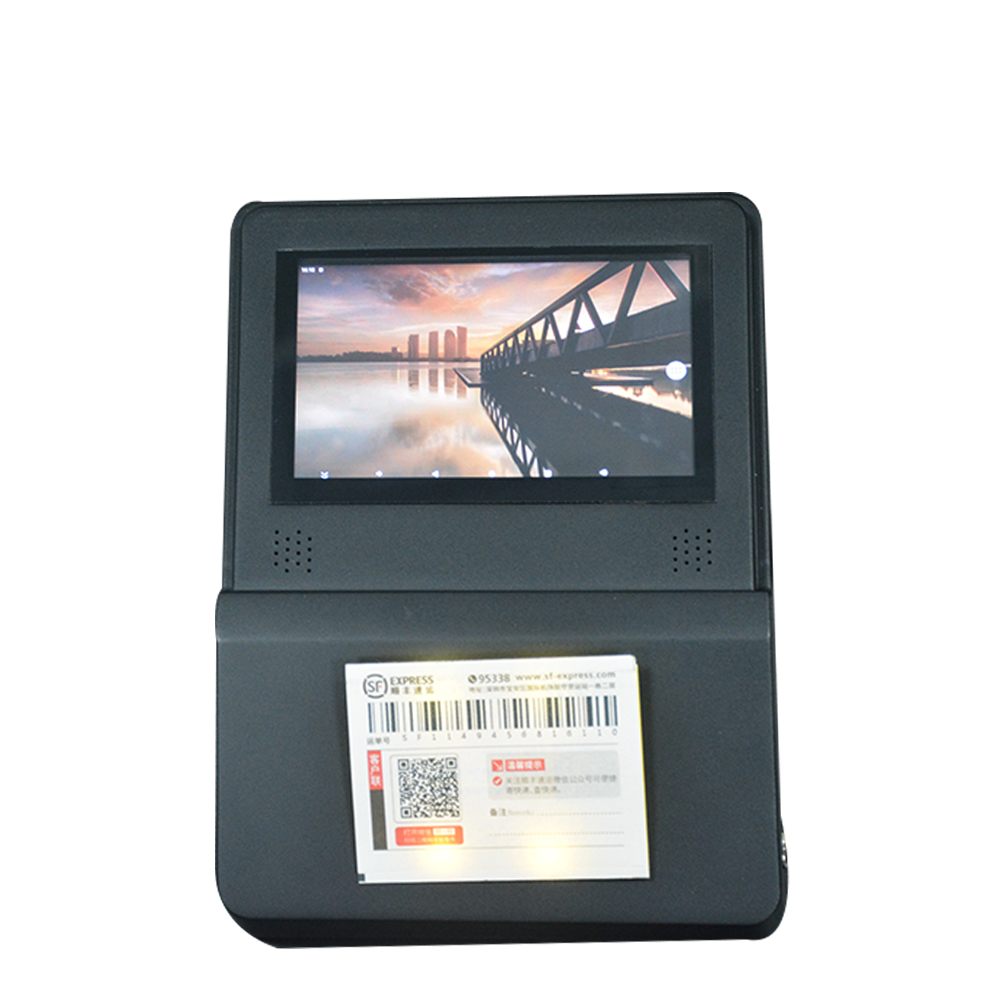

1D/2D Scanner | |
Sensor | 640 x 480 CMOS |
ScanningSpeed | 280 times / sec |
DecodeCapability | 1D: UPC/EAN, Code39, interleaved 2 of 5, Code93, |
MinResolution | 0.1 mm(4mil)@Code 39, PCS=90% |
ScanDistance | 5mil: 5 to 10 cm, max 80 cm |
Others | |

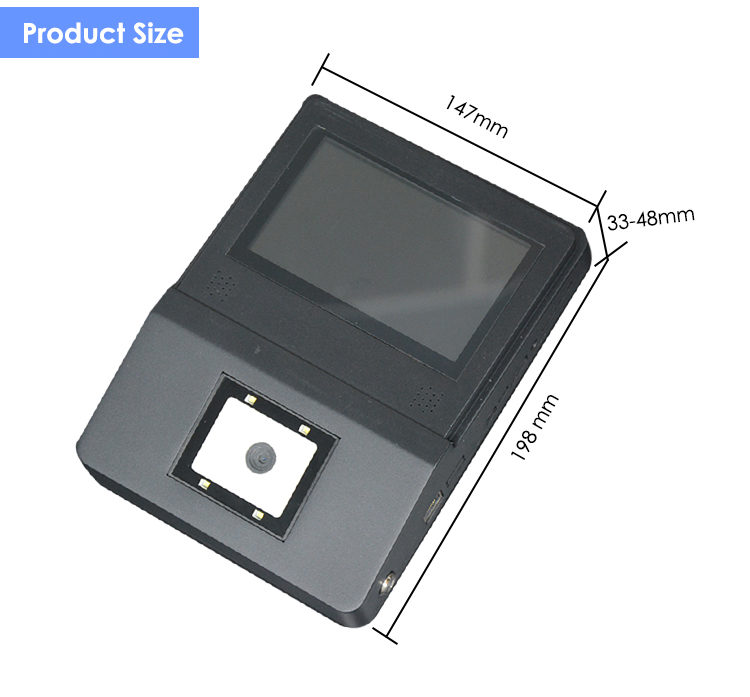

Size | 198x147mm & 33*48mm |

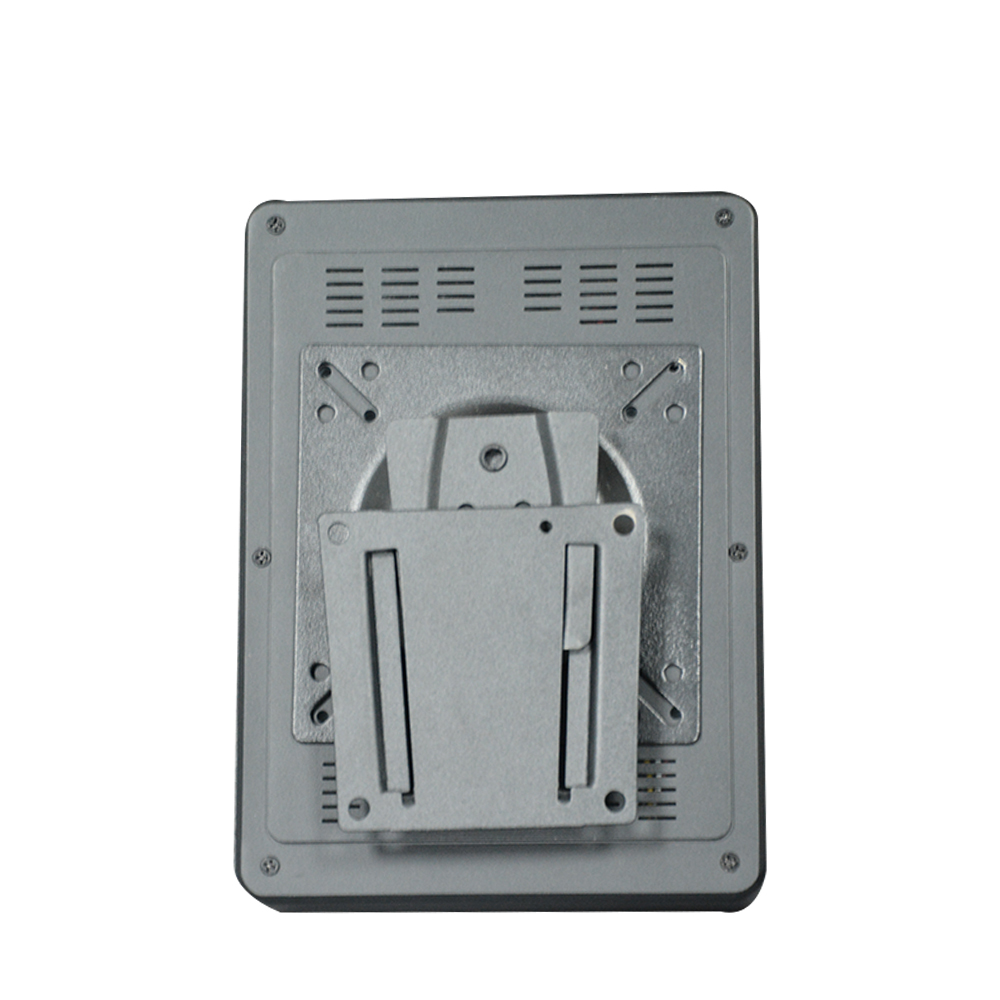

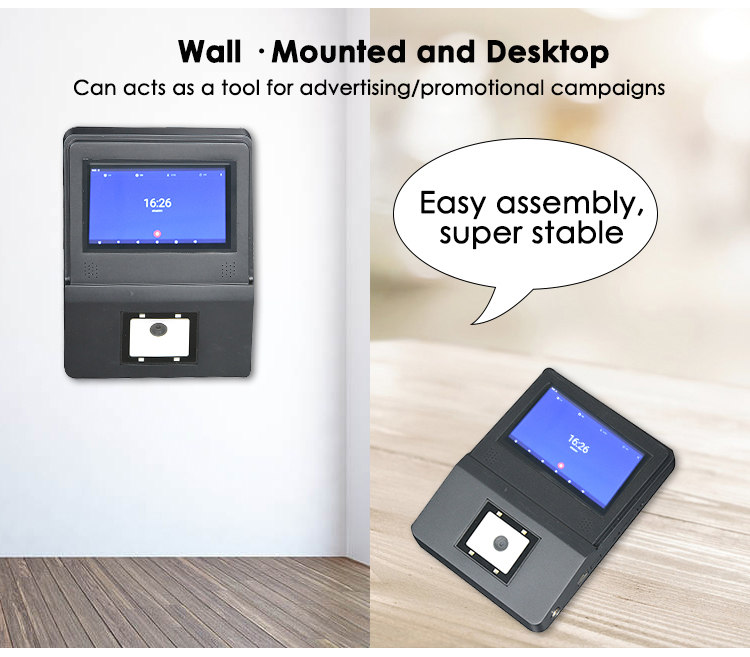

Type | Wall Mounted |
Scanner | Built- in |
StandBase | Optional |
Software | No |
