Wash Care Label Printer HCC-2054TA supports 108mm printing width, 1D and 2D Barcode printing, perfect for clothing industry
| Quantity: | |
|---|---|
HCC-2054TA
HCCTG

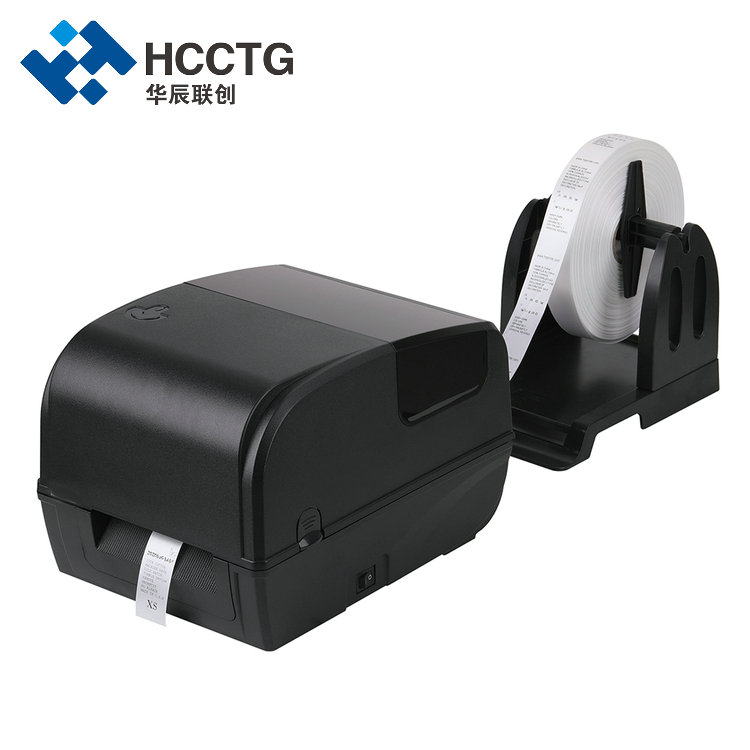

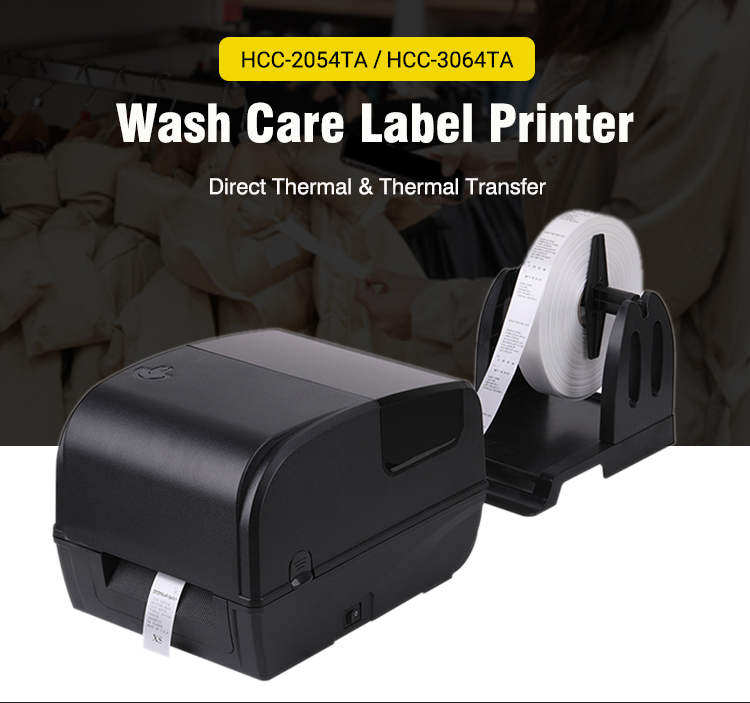

4 Inch Washing Label Thermal Printer With Paper Holder Ribbon HCC-2054TA
HCC-2054TA wash care label printer can Direct Thermal & Thermal Transfer and has 8MB DRAM, 8MB Flash ROM, besides, this 2d barcode printer also supports 1D and 2D Barcodes printing. It suits for commodity name labels, post office labels, shipping logistic labels for transportation, inventory storage adhesive label sticker printing, tiny content or the Jewelry tags.
Function
Compact size and 300m ribbon capacity.
Custom-made washable labels and ribbons, washable without fading.
Multiple communication interfaces.
With Care Label support can support big roller.
Ribbon wound ink-side out or ink-side in available.
Printing speed up to 4 ips, and expanded memory for font, graphic and form storage.

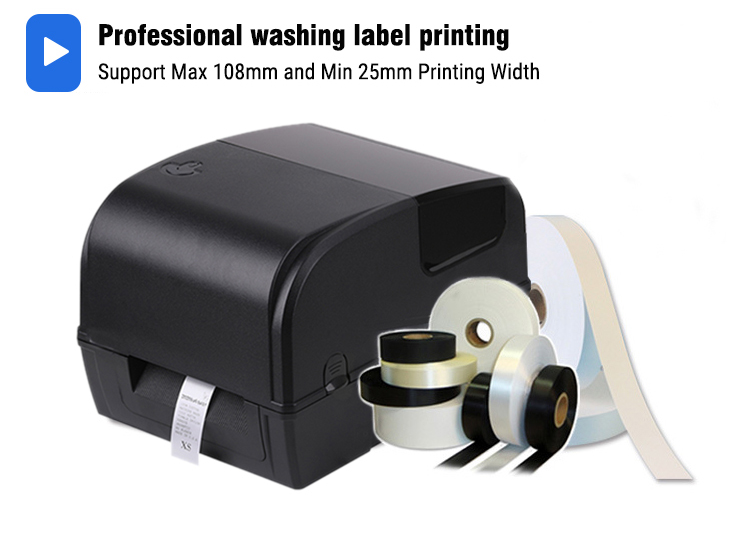

Support Max 108mm and Min 25mm Printing Width
Support bartender barcode design software, clear printi
Specification

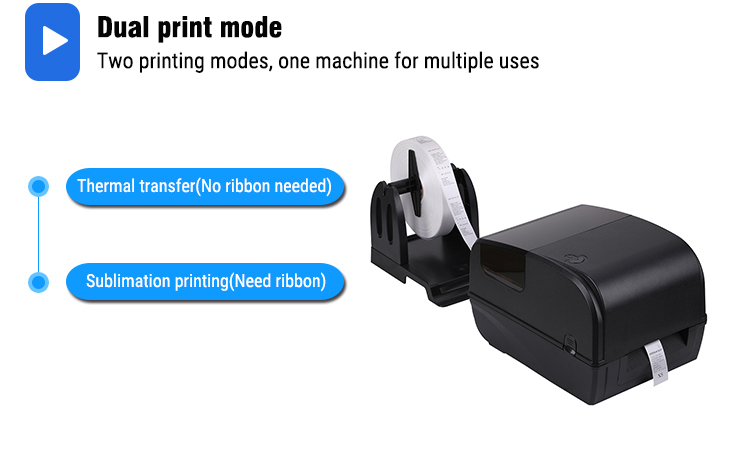

Printing Method | Direct Thermal & Thermal Transfer |

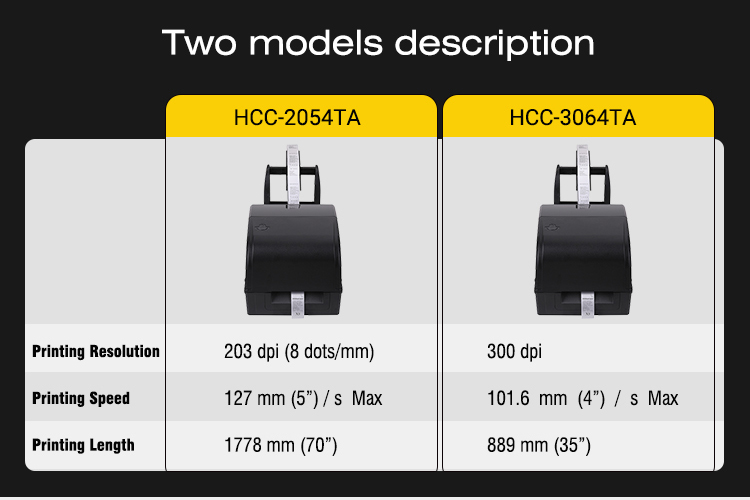

Printing Resolution | 203 dpi (8 dots/mm) |
Printing Speed | 127 mm (5”) / s Max |
Printing Length | 1778 mm (70”) |
Printing Width | 108 mm (4.25") |
Memory | 8MB DRAM, 8MB Flash ROM |
CPU Type | 32 bit RISC microprocessor |
Wash label Supporter | YES |

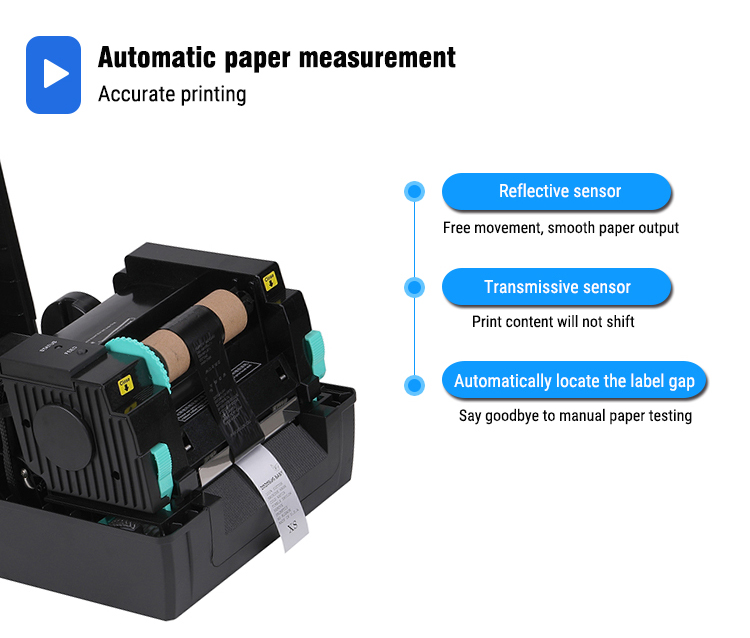

Sensors | Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Center fixed) |

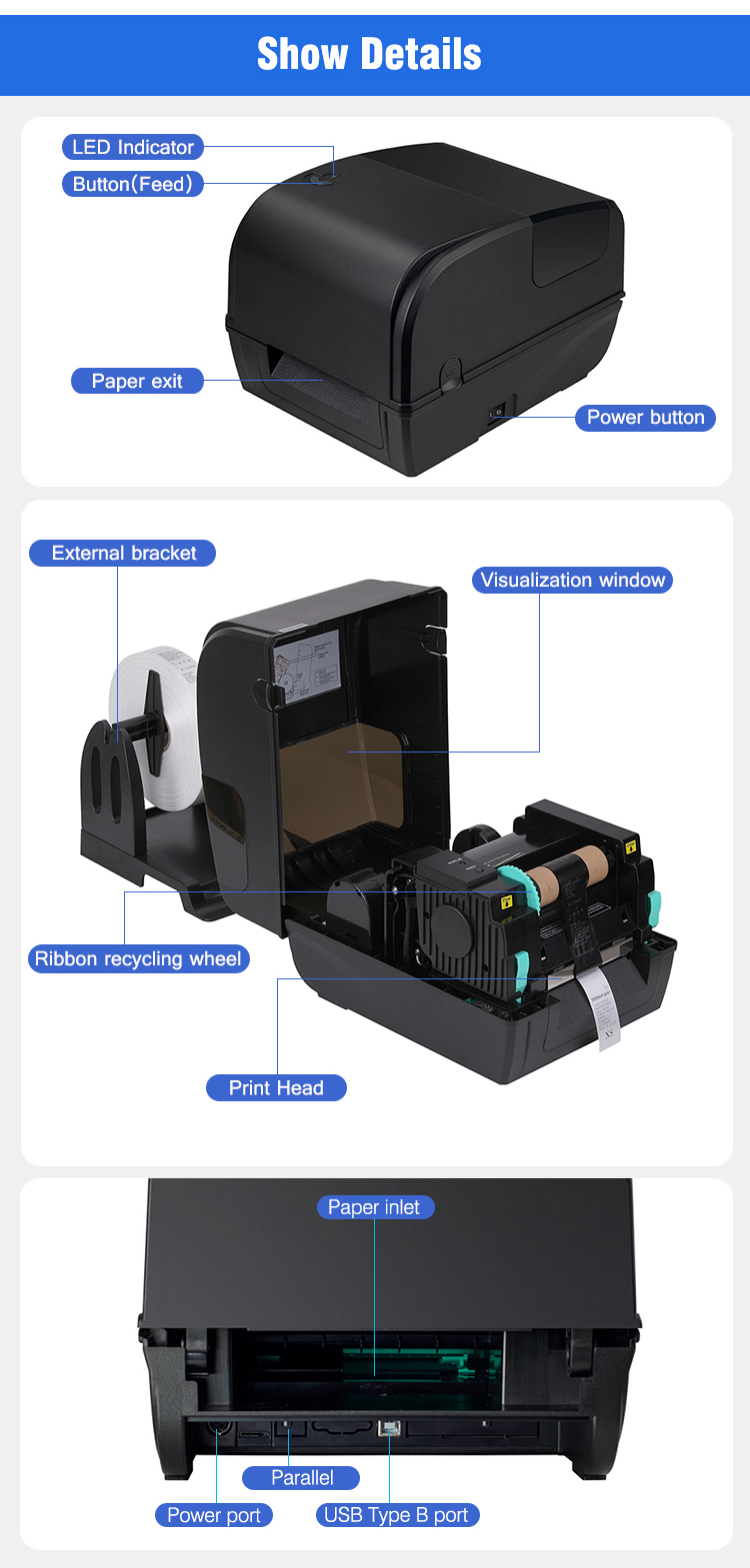

Operation Interface | LED Indicator x 2, Button(Feed) x 1 |
Communication Interface | USB, RS-232, Parallel |
1D Barcodes | PPLA: Code 39,UPC-A,UPC-E,Code 128 subset A/B/C,EAN-13,EAN-8,HBIC,Codabar,Plessey,UPC2,UPC5,Code 93,Postnet,UCC/EAN-128,,UCC/EAN-128 K-MART,UCC/EAN-128 Random weight,Telepen,FIM,Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars),GS1 Data bar (RSS) |
2D Barcodes | PPLA/PPLB: MaxiCode,PDF417,Data Matrix (ECC 200 only),QR code,Composite Codes |
Emulation | TSPL,EPL,ZPL,DPL |
Media Type | Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label |
Media | Max. width 4.3”(110mm) Min. width 1” (25.4 mm) Thickness 0.0025”~0.01” (0.0635mm ~0.254mm) Max. roll capacity (OD): 5"(127 mm) Core size 1”(2.54mm) Max. roll capacity (OD): 4.5"(114.3 mm) Core size 0.5”(12.7mm) Optional Max. roll capacity (OD): 4.7"(120 mm) Core size 1.5”(38.1mm) Optional |
Ribbon | Ribbon roll – OD: 2.6”(67mm) Ribbon Length: Max. 300m Core size – ID: 1”(2.54mm) Ribbon Width:1"~4.33"(25.4mm~110mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) |
Printer Dimensions | 302.5 mm (D) x 234 mm (W) x 195.18 mm (H) |
Printer Weight | 3.2 kg |
Power Source | Universal Switching Power Supply AC Input: 100V~240V, 1.8A, 50~60Hz, DC Output: 24V 2.4A |
