2.4 Inch QR Screen 4G Dynamic Cloud QR Soundbox Payment Terminal with Pinpad Z30

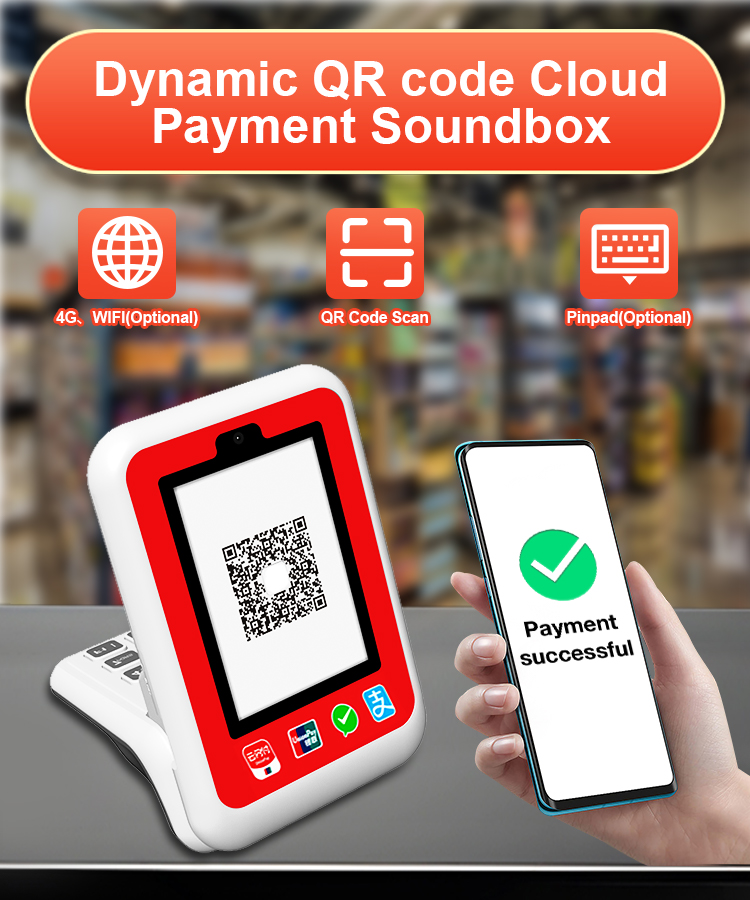

Z30 is featuring a 2.4-inch dual display screen for enhanced visibility, EMV compliance for security, 4G and Bluetooth connectivity for seamless transactions, QR code compatibility for modern payment methods, and an integrated soundbox for clear audio feedback.
Availability:
Quantity:
  • Z30

  • HCCTG

2.4/3.5 Inch Dynamic QR Code Cloud Speaker Soundbox Payment Terminal Z30

Z30 is a cutting-edge solution for seamless transactions. With its dynamic QR code cloud speaker, optional front camera scanner, and dual display screen, this terminal ensures clarity and convenience in every transaction. Stay connected with optional 4G/Wi-Fi/BT connectivity, while optional EMV CL NFC card reader and keyboard dock streamline payments.


Features:

  • 2.4"/3.5" dynamic QR code cloud speaker;

  • 0.3 MP front camera scanner(optional);

  • 4G/WFI/BT connectivity(optional);

  • Dual display screen;

  • EMV CL NFC card reader(optional);

  • With keyboard dock to input amount(optional);

  • Segment code digital screen to show clear amount (optional).

Specifications

OS

RTOS

CPU

Cortex A5 500MHZ

Memory

RAM:16MB

FLASH:24MB/136MB(option)

Display

2.4inch 240x320 pixels;

3.5 inch 320x480 pixel(option);

7-digit segment code digital screen(option)

Contactless card reader

EMV Contactless L1,ISO/IEC 14443 Type A/B(option)

Connectivities

FDD:B1/B3/B5/B7/B8/B20/B28

TDD:B38/B40/B41

GSM: 850/900/1800/1900 MHZ

WIFI 2.4g(802.11 b/g/n)(option)

Bluetooth 5.2(BR/EDR)(option)

Camera

0.3MP (option)

Audio

1*Speaker(2w)

Keypad

5*(Power key, Volume+ key, Volume- key, Function key(M)

10*numeric keys

6*function keys

LED

2 LEDS: RED/GREEN

Peripheral Ports

1*Type-C USB

SIM

1*Micro SIM

Size

96.4*140.6*109.9mm

Battery

Li-ion battery3.7V/2000mAh

Power Supply

Input: 5V/1A

5V/2A(option)

Certificates

CE

ROHS

EMV L1

PCI

Paypass

Paywave

NPCI
