ACR1281U-C1 Dual Boost II, a versatile device designed for seamless integration, combines contactless smart card reader, RFID card reader, and contactless payment reader functionalities into one unified system. This innovative solution allows users to effortlessly merge traditionally distinct and independent applications for contact and contactless technologies, all within a single device and card.
| Quantity: | |
|---|---|
ACR1281U-C1
HCCTG

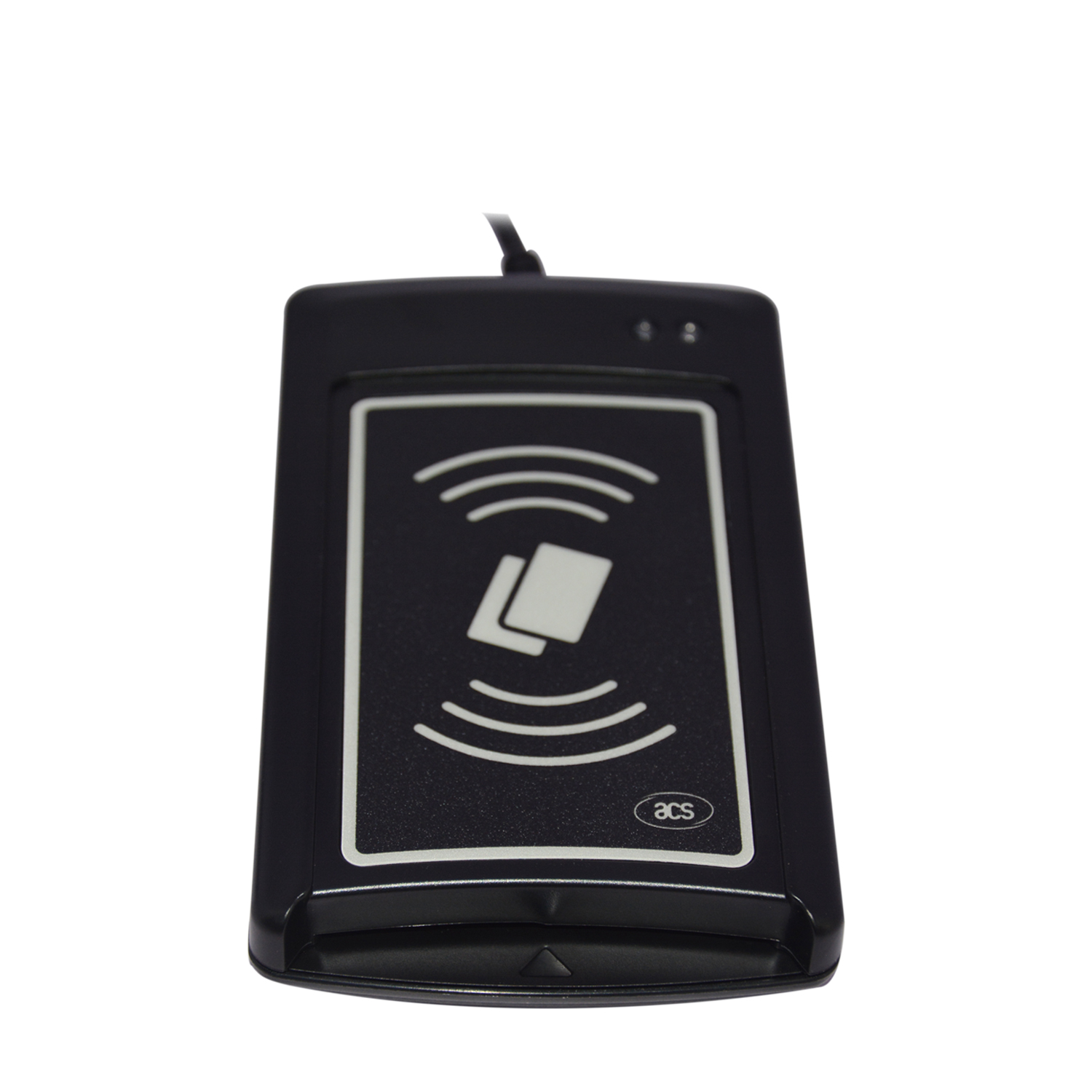

PC/SC Contact & Contactless Smart Card Reader Dual Boost II ACR1281U-C1
ACR1281U-C1 is not only capable of facilitating secure online transactions and credit card payments but also serves as an efficient EMV card reader, ensuring the safety of financial transactions. Moreover, it enables users to conveniently top up their contactless cards through automated fare collection in public transport, making it an ideal solution for various transportation systems. With its USB firmware upgradability and support for contact memory cards and extended APDU, the ACR1281U-C1 Dual Boost II offers unparalleled flexibility and convenience in smart card applications, establishing itself as a reliable USB contactless card reader for diverse needs.
Feature
Compliance with PC/SC for contact, contactless and SAM card interfaces
Compliance with CCID
Supports major contactless smart cards that conform to ISO14443 Type A and B
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Read/write speed of up to 848 kbps for contactless interface
Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
Supports major contact smart cards that conform to ISO7816
Supports memory cards such as SLE5528, SLE5542, etc.
Read/write speed of up to 344 kbps for contact interface
Durable landing type smart card connector
Built-in SAM card slot
intelligent support for hybrid and combine cards
Firmware Upgradable
User-controllable monotone buzzer and LEDs
USB Full Speed (12 Mbps)
Application
e-Government and e-Healthcare
e-Banking and e-Payment
Transportation
Network Security
Access Control
Loyalty Program
Specification
Dimensions | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) |
Weight | 150 g |
Interface | USB Full Speed |
Operating Distance | Up to 50 mm (depends on the tag type) |
Supply Voltage | Regulated 5V DC |
Supply Current | 200mA (operating); 50mA (standby) |
Operating Temperature | 0-50⁰ C |
Operating Frequency | 13.56 MHz |
Smart Card Interface Support | ISO-7816 Class A, B and C (5V, 3V, 1.8V) ISO-14443 Type A & B Mi fare |
Compliance/Certifications | PC/SC, CCID, CE, FCC, ROHS, USB Full Speed Microsoft WHQL: 2000, XP, Vista, 7 |
Operating System Support | Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64 Mac Linux Android |
