ACR39U-NF is capable of supporting demanding smart card applications using full-sized contact smart cards. It supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards, CAC, supports Android™ 3.1 and later amd it's also compliant with the following standards.
| Quantity: | |
|---|---|

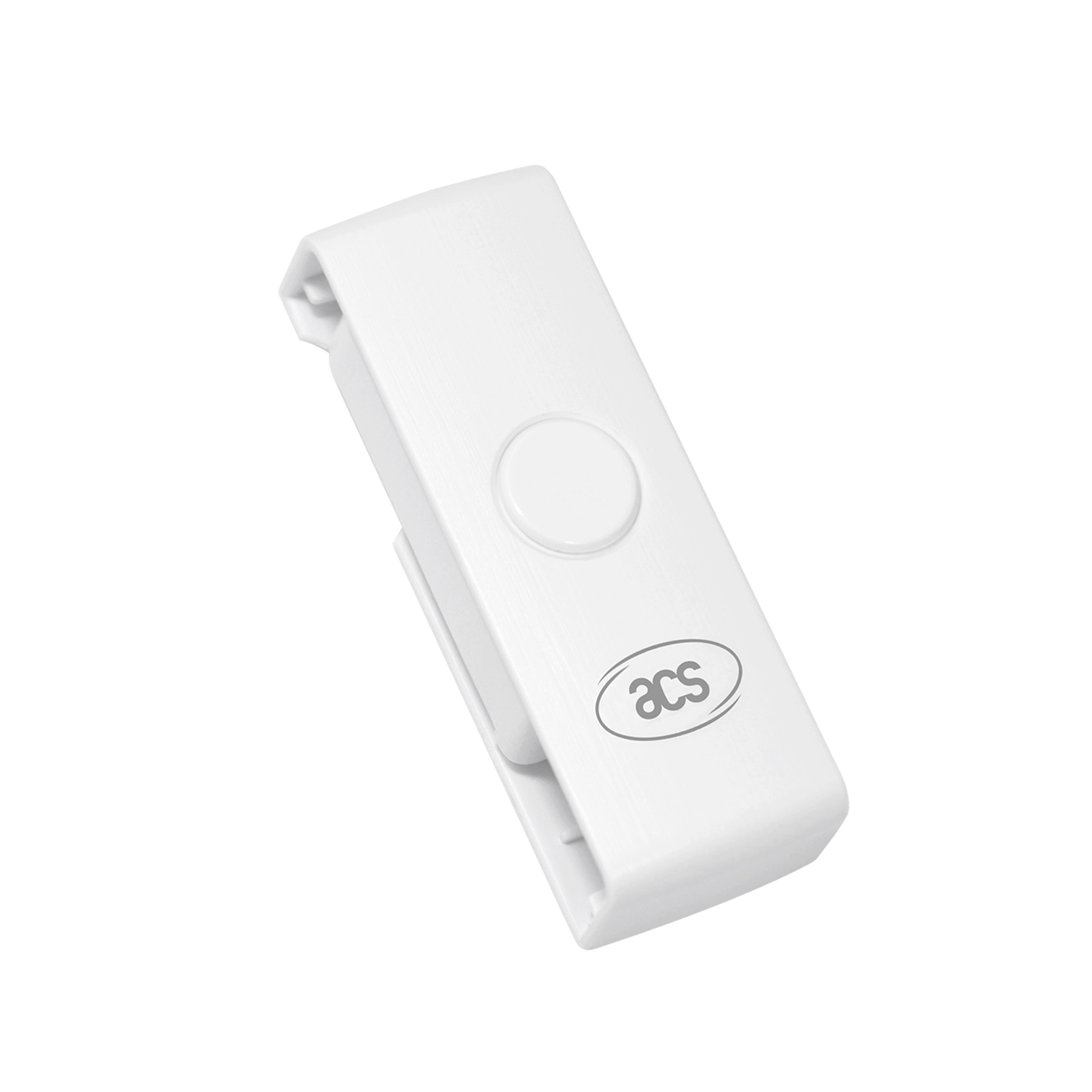

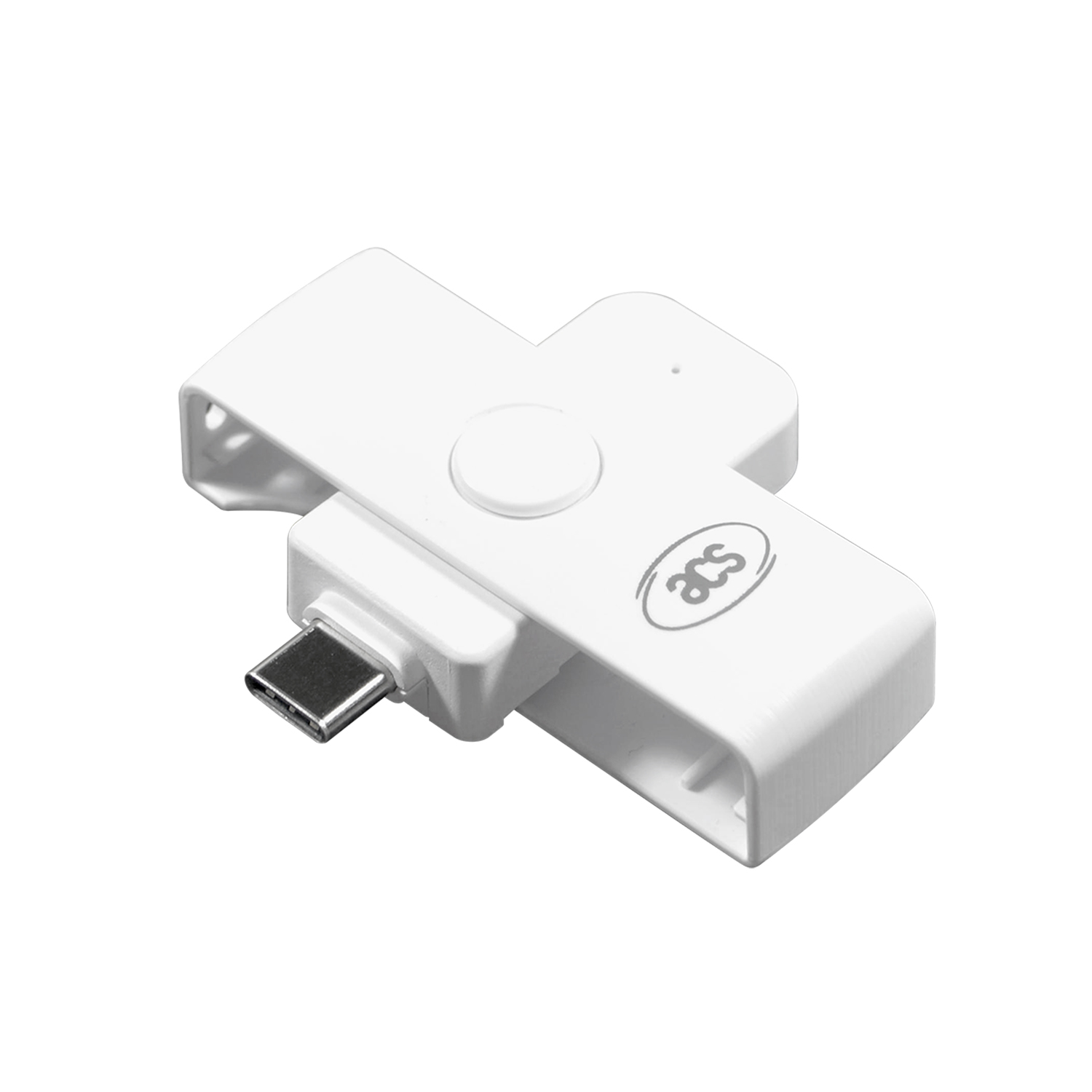

ACR39U-NF
HCCTG
The ACR39U-NF portable smart card reader is an innovative and versatile device that boasts a perfect balance between reliable functionality and sleek design aesthetics. It is specifically designed to address the diverse security needs of various fields, such as e-Banking, e-Payment, and e-Government, ensuring seamless and secure transactions in the digital realm.
This state-of-the-art device incorporates cutting-edge technology to provide users with a seamless and secure experience. Its robust functionality is built to withstand the most stringent security requirements, making it an ideal choice for industries where data protection is of paramount importance.
Feature
USB 2.0 Full Speed Interface
USB Type C Connector
Plug and Play - CCID support brings utmost mobility
Swivel Motion Design
Smart Card Reader:
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
Supports CAC
Supports SIPRNET Card
Supports J-LIS Card
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short-Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API CT- API (through wrapper on top of PC/SC)
Supports Android 3.1 and later
Compliant with the following standards
e-Government
Banking & Payment
e-Healthcare
Network Security
Access Control
Public Key Infrastructure
e-Purse & Loyalty
Specification
Dimensions | 58.0 mm (L) × 20.0 mm (W) × 13.9 mm (H) |
Weight | 10 g |
Color | White |
Protocol | USB CCID |
Connector Type | Standard Type C |
Power Source | From USB por |
Speed | USB Full Speed (12 Mbps) |
Supply Voltage | 5 V |
Number of Slot | 1 Full-sized Card Slot |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50 mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.8 MHz |
Card Connector Type | Contact |
Card Insertion Cycles | Min. 100,000 |
LED | Green |
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
Temperature | 0°C – 60°C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |
Certifications/Compliance
| EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft WHQL |
Device Driver Operating System Support
| Windows XP,Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 Linux, Mac OS, Solaris, Android 3.1 and above |
