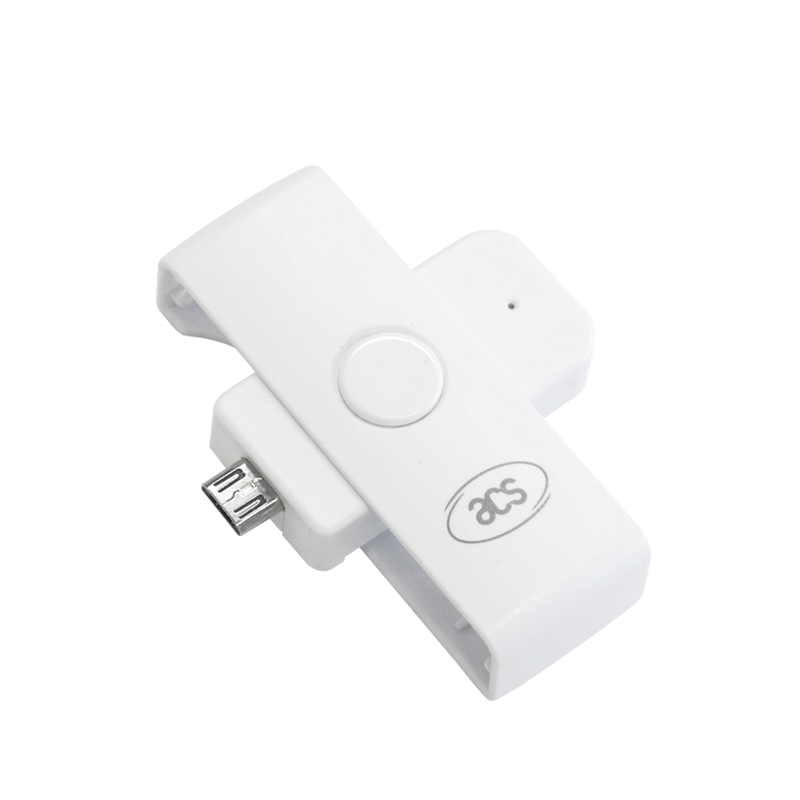

ACR39U-ND is PocketMate II (Micro-USB) Smart Card Reader, it's perfect to meet your security needs in many fields, including e-Banking, e-Payment, and e-Government. Besides, it supports a wide variety of memory cards in the market including the Department of Defense Common Access Card (CAC), and SIPRNET Card. This makes it ideal for a broad range of solutions such as PIV Application, Physical and Logical Access Control, Digital Signature, and Online Banking.
| Quantity: | |
|---|---|
ACR39U-ND
HCCTG
PBOC Micro USB Smart Card Reader for E-Payment ACR39U-ND
ACR39U-ND connects with computers through its USB Full Speed interface and has a smart card read/write speed of 600 Kbps. This small device proves to be a powerful smart card reader as it houses the ACR39 core, which has been proven to support highly demanding smart card applications.
Feature
USB Full Speed Interface
Micro-USB Connector
Plug and Play - CCID support brings utmost mobility
Swivel Motion Design
Application
e-Government
e-Banking and e-Payment
e-Healthcare
Public Key Infrastructure
Network Security
Access Control
Loyalty Program
Specification
Dimensions | 58.0 mm (L) x 20 mm (W) x 13.9 mm (H) |
Weight | 9.7g |
Color | White |
Protocol | USB CCID |
Connector Type | Micro B |
Power Source | From USB port |
Speed | USB Full Speed (12 Mbps) |
Supply Voltage | 5 V |
Number of Slot | 1 Full-sized Card Slot |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.8 MHz |
Card Connector Type | Contact |
Card Insertion Cycles | Min. 100,000 |
LED | Green |
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
Temperature | 0°C – 60°C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |
Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft WHQL |
Device Driver Operating System Support | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 Linux, Mac OS, Solaris, Android 3.1 and above |
