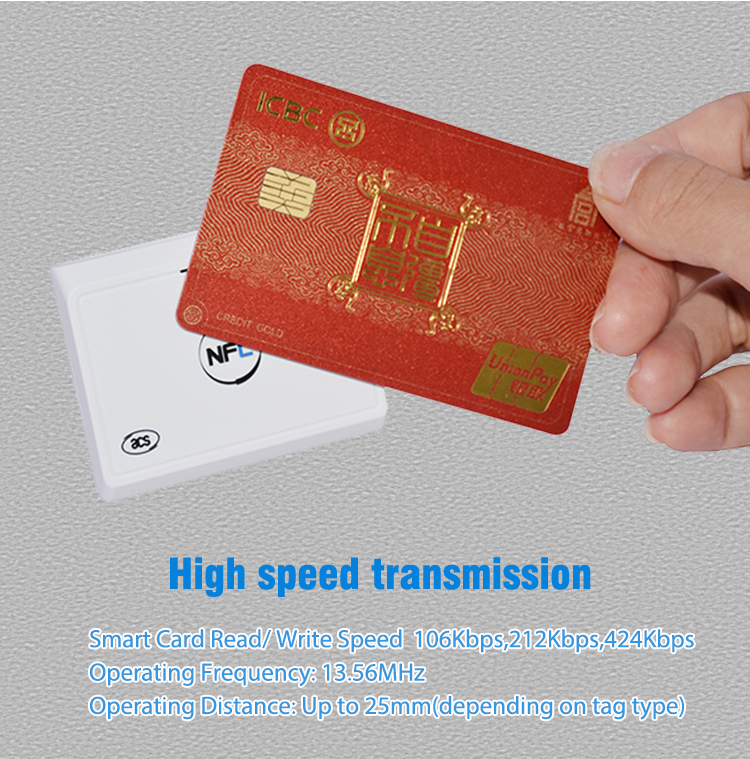

Contactless Bluetooth RFID 13.56 MHz NFC Smart Card Reader Writer ACR1311U-N2

ACR1311U-N2 Bluetooth NFC Reader supports ISO 14443 Type A and B smart cards, compatible with Windows, Linux, IOS, Android system.

Availability:
Quantity:
  • ACR1311U-N2

  • HCCTG

PC/SC Bluetooth Contactless RFID Reader Contactless Card Reader ACR1311U-N2

ACR1311U-N2 supports ISO 14443 Type A and B smart cards, MIFARE, FeliCa, and most NFC labels and devices compliant with ISO 18092, making ACR1311U-N2 ideal for a wide range of solutions. Examples include hands-free verification for physical and logical access control and inventory tracking.

ACR1311U-N2 firmware can be easily upgraded in the field, which allows users to respond to rapidly changing technologies for their applications and adapt to different use scenarios.










Technical Specification

Physical characteristics

Dimensions

60mm(L)×47.98mm(W)×12mm(H)

Weight

20g

Color

White

Bluetooth Interface

Protocol

Bluetooth Smart (Bluetooth Low Energy /Bluetooth 4.0)

Power Source

Rechargeable Lithium-ion Battery (Charging through USB)

Speed

1Mbps

USB Host Interface

Protocol

USB Full Speed

Type

Four Line:+5V,GND,D+ and D-

Connector Type

Micro USB

Power Source

From USB Port

Speed

USB Full Speed (12 Mbps)

Cable Length

1 m (Datachable)

Firmware

Upgradeable through USB Interface

Contactless Smart Card Interface

Standard

ISO 14443 Type A,MIFARE,DESFIRE

Protocol

ISO 14443 T=CL for ISO14443-4 compliant cards, and T+CL Emulation for MIFARE Classic 1k/4k and NFC tags

Operating Frequency

13.56MHz

Operating Distance

Up to 25mm(depending on tag type)

Smart Card Read/ Write Speed

106Kbps,212Kbps,424Kbps

Antenna Size

28.00mm×32.00mm

Built-in Peripherals

LED

2bi-color, Red and Blue,Red and Green

Buzzer

Monotone

Operating Conditions

Temperature

0℃-50℃

Humidity

Max.90%(non-condensing)

MTBF

500,000 hrs

Application Programming Interface

PC-link Mode

PC/SC

CT-API(through wrapper on top of PC/SC)

Certifications/Compliance

 EN60950/IEC 60950,ISO 14443,USB Full Speed,Bluetooth Smart, PC/SC,CCID,RoHS 2, REACH, Microsoft WHQL

Device Driver Operating System Support

WindowsME,Windows98,Windows2000,WindowsXP,WindowsVista,Windows7,Windows8,Windows8.1,Windows10,WindowsServer2003,WindowsSever2008,Windows,Sever2008R2,WindowsSever2012,WindowsSever2012R2,Linux,Mac OS, Android, iOS
