ACR1581U-C1
HCCTG

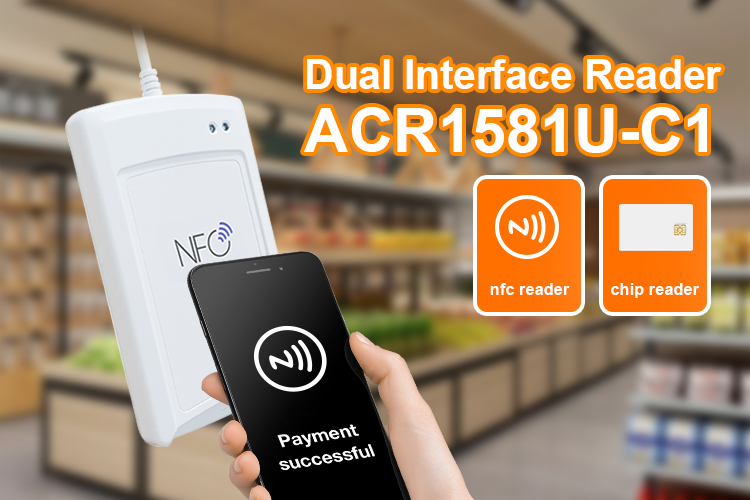

The ACR1581U-C1 DualBoost III is a highly advanced smart card reader that can work with both contact and contactless smart cards following ISO standards. Its high-speed communication capability of up to 848 kbps and built-in SAM slot provide added security and reliability for demanding smart card applications. The DualBoost III also has intelligent support for keyboard emulation and card emulation, making it versatile and useful for a broad range of smart card applications.
Additionally, it has intelligent support for hybrid and combi cards, which can detect when a contactless card has been incorrectly placed in the contact card slot. The device also has USB firmware upgradability, contact memory card support, and extended APDU support, making it flexible and cost-effective for various smart card applications. It is compliant with PC/SC standards, ensuring compatibility with a wide range of smart card systems and applications.
Features:
Support various type of card type
Contact Card:
ISO 7816 Class A, B and C (5V, 3V and 1.8V)
Memory Card, Microprocessor Card (T=0 or 1)
Contactless Card:
ISO 14443 Type A & B (T=CL)
ISO 15693
MIFARE® (T=CL), FeliCa, NFC Tags
SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
Performance

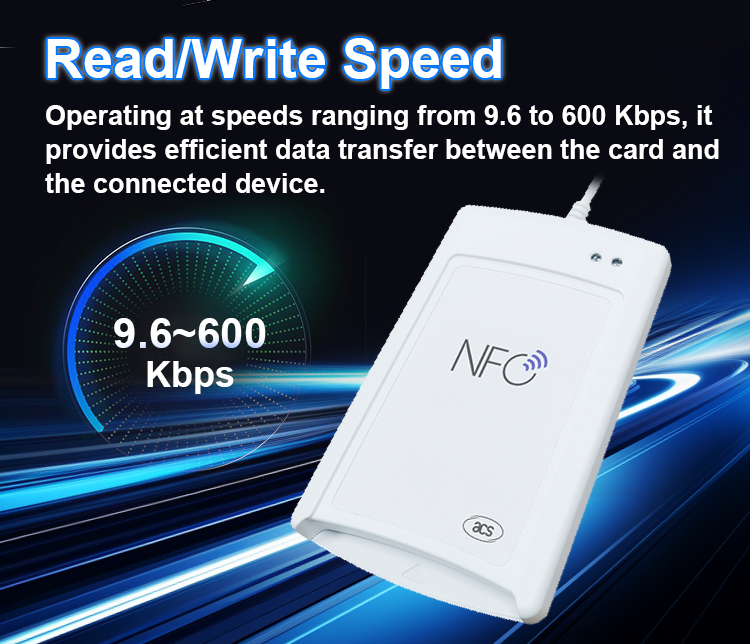

Read/Write ISO 14443A & B speed of up to 848 kbps
Read/Write ISO 15693 speed of up to 26 kbps
Security
1 x ISO 7816 Standard SAM slot for improved security
Support keyboard emulation and card emulation
Implement without the need of additional application
Support USB Firmware Upgrade
Reliable
Certified for international regulations
Mean time between failures (MTBF) up to 500k Hours
Short Circuit Protection
Compatibility
Support for all major operating systems
Specifications
Contact Smart Card Interface | |

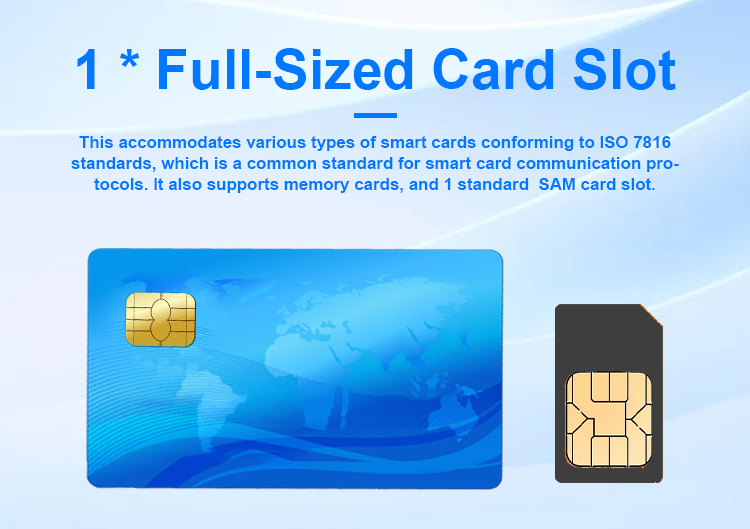

Number of Slot(s) | 1 Full-sized Card Slot |
Supported Card Types | ISO 7816 Class A, B, C (5V, 3V, 1.8V),Memory Cards, Microprocessor Cards(T=0, T=1) |
Supply Current | Max. 60 mA |
Read/Write Speed | 13.4 – 1,250 kbps |
Clock Frequency | 5 MHz, up to 10 MHz (upon request) |
Card Connector | ICC Slot: Landing |
Card Insertion Cycles | Min. 300,000 |
Contactless Smart Card Interface | |

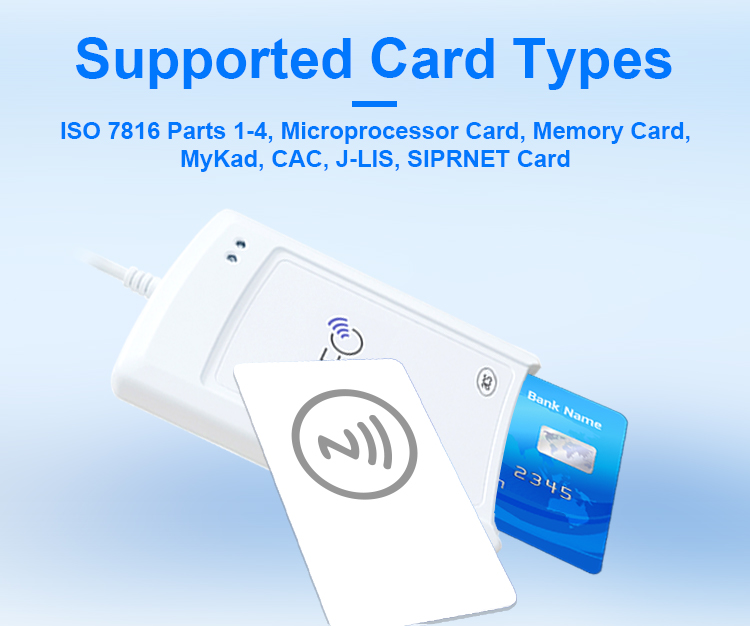

Supported Card Types | ISO 14443 Type A & B Parts 1-4,ISO 15693, MIFARE®, FeliCa, NFC Tags,SRI/SRIX, CTS, Innovatron, Picopass,Topaz Card |
Operating Frequency | 13.56 MHz |
Reading Distance | Up to 70 mm (Depending on tag type) |
Read/Write Speed | 106/212/424/848 kbps (ISO14443)26 kbps (ISO15693) |
Other NFC Features | Keyboard Emulation, Card Emulation |
SAM Card Interface | |
Standard | 1 x ISO 7816 Class A (5V) Standard SIM size slot |
Read/Write Speed | 3.4 kbps – 1,250 kbps |
Clock Frequency | 5 MHz, up to 10 MHz (upon request) |
Protocol | T=0, T=1 |
Host Interface | |
Protocol | USB CCID |

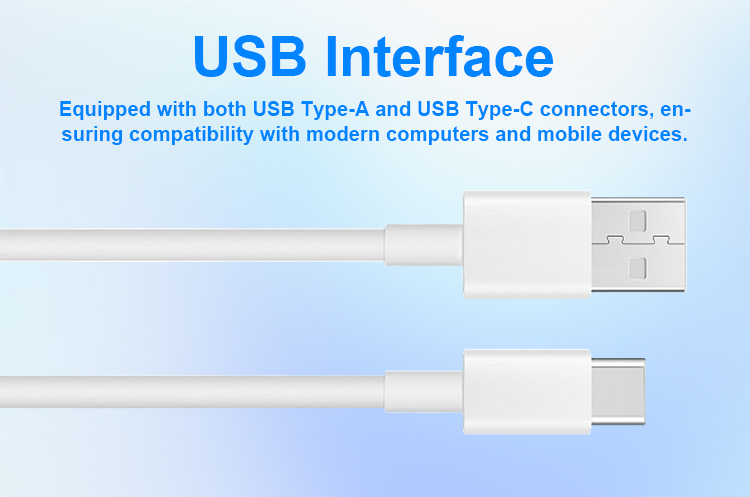

Connector Type | USB Type-A |
Speed | USB 2.0 Full Speed (12 Mbps)compatible with USB 3.0 |
Supply Voltage | 5VDC |
Current Consumption | Max. 300mA |
USB Firmware Upgrade | Supported |
Physical Characteristics | |
Dimension(L x W x H) | Main Body: 120.5 x 72.0 x 20.4 mm Antenna size: 63 x 54 mm |
Weight | 143 g |
Available Colour | Matte White |
USB Cable Length | 2 m (Non-detachable) |
Peripherals | |
Buzzer | 1 x Programmable Buzzer (Mono-tone) |
LED | 2 x Programmable LED (Blue & Green) |
Operating Condition | |
Temperature | 0 - 60°C |
Humidity | 90% (Non-condensing) |
MTBF | 500,000 Hours |
Certifications & Compliances | |
Certifications | EN 62368, CE, UKCA, FCC, RoHS, REACH, Microsoft® WHQL |
Compliances | USB CCID, PC/SC |
Libraries & Tools | |
Libraries | CT-API |
Tools | Software Development Kit |
Supported OS | Windows®, Linux®, macOS, Android |
Warranty | 1 Year |
