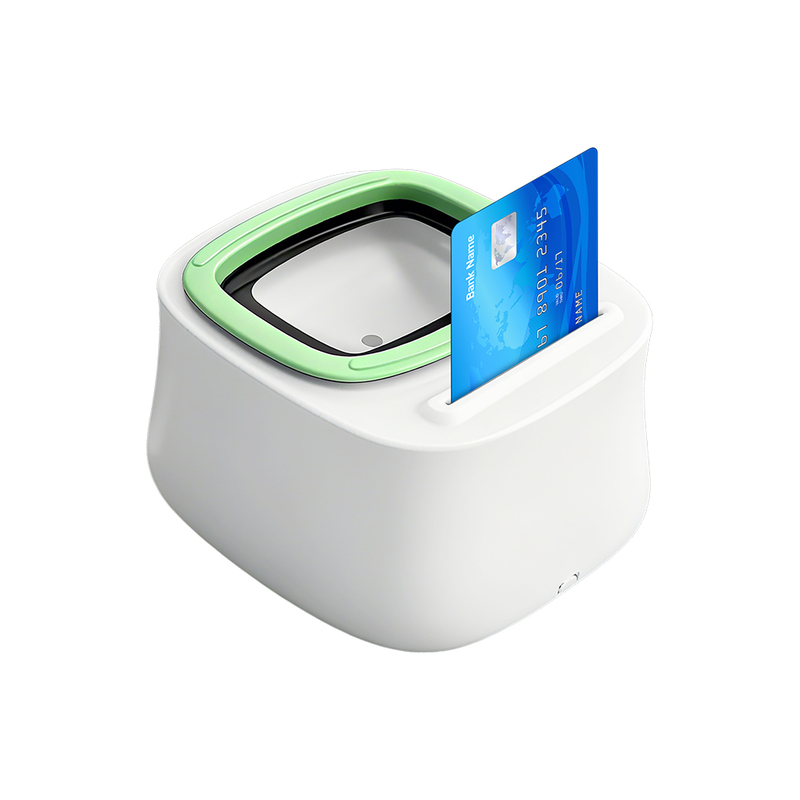

USB/RS232 Unionpay EMV 2D Barcode Scanner With Contactless Card Reader HCC3300

HCC3300 supports ISO7816/ISO14443 A/B, EMV2000 and PBOC2.0 specifications two SAM card socket can be extended.

Availability:
Quantity:
  • HCC3300

  • HCCTG

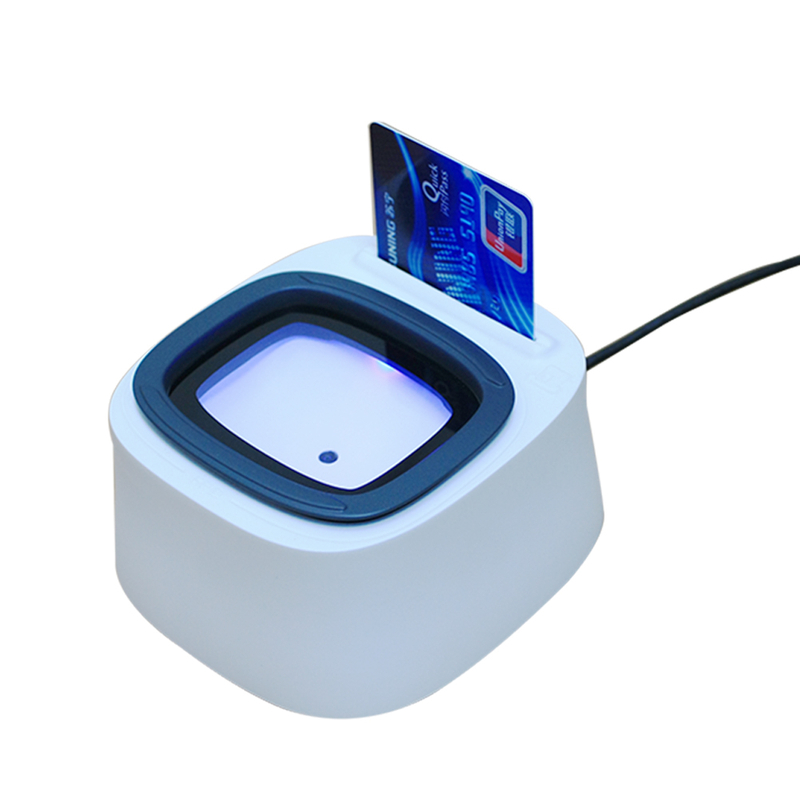

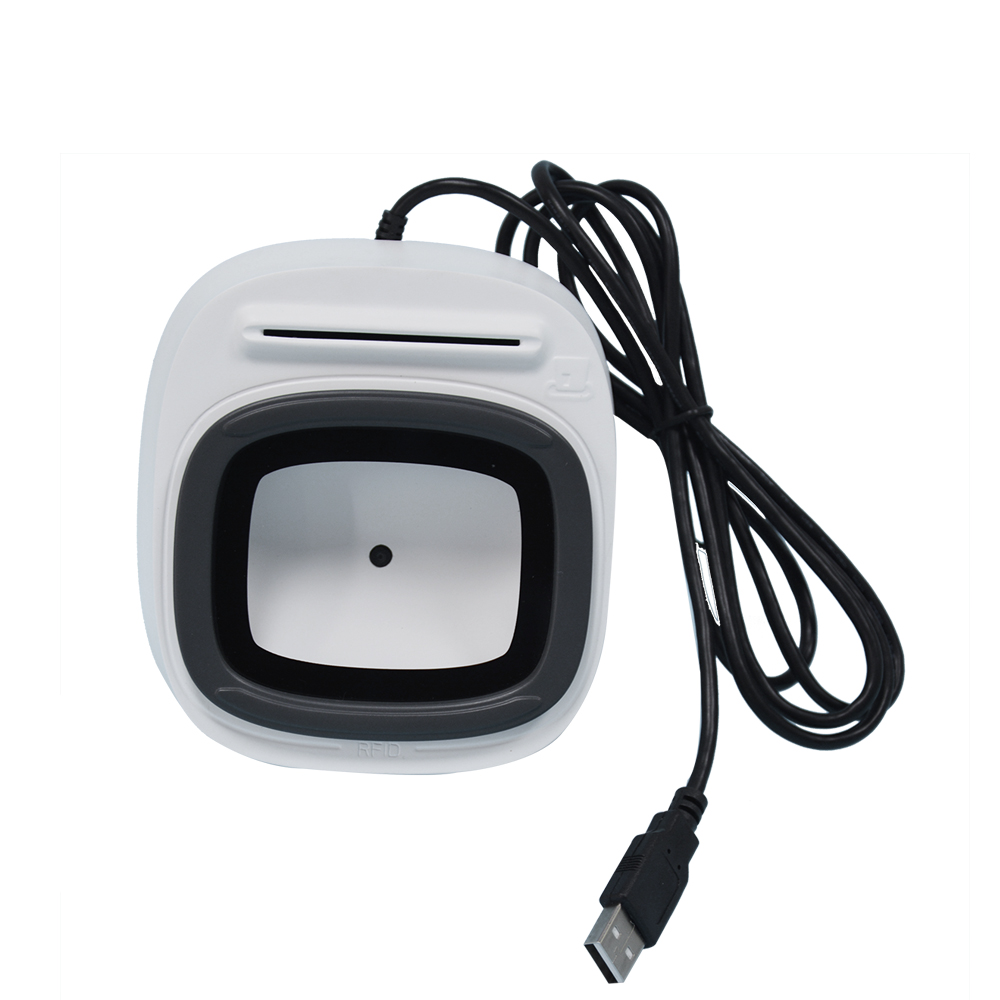

Desktop Payment Box 2D Barcode Scanner With NFC Card Reader HCC3300

HCC3300 desktop payment box is a multi-functional intelligent identification device that integrates one-dimensional code / two-dimensional code scanning and dual-interface IC card and NFC reading and writing functions.

Besides, it can be widely used in industries such as finance, social security, industrial and commercial taxation, transportation, securities, post and telecommunications. It also supports contactless mobile payment applications.



Specification

Main Technical Feature

Power Supply

USB Bus / DC: +5V±10% 300mA.

Consumption

Current / operating Typical 250mA Max

150mA Standby

Outline

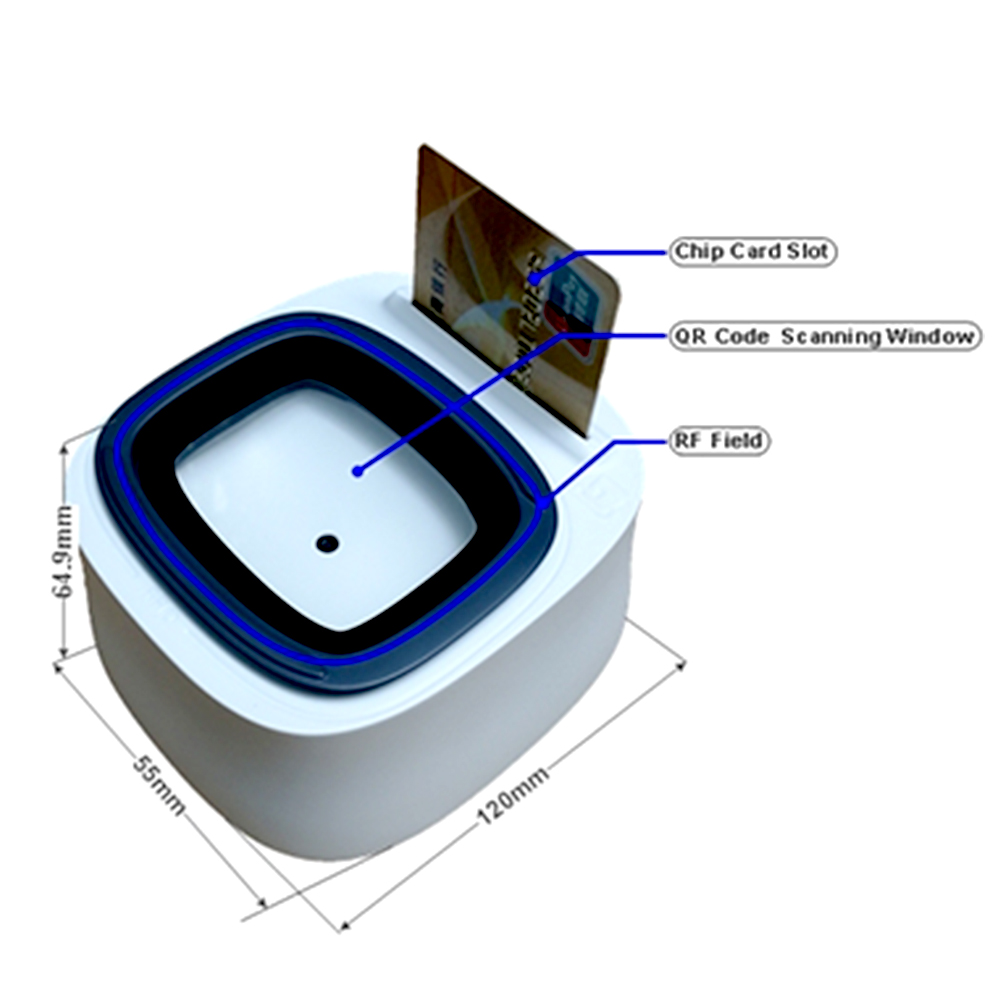

120* 55* 64.9(L*W*H)mm

Temperature

Operation: -10ºC to 60ºC; Storage: -30ºC to 70ºC

Humidity

Operation: 10 to 85%; Storage: 10 to 90%, Non-Condensing.

QR Code Scanning Feature

Image sensor

640H * 480V 30fps

Field of view angle

Horizontal: 65° Diagonal: 81° Vertical: 61°

Deflection angle

Horizontal: ±50° Vertical: ±50°Whirling: 360°

Motion tolerance

3m/s

Code system support

1D: Code128 / Code32 / Code 39 / Code 93 / EAN 13 / EAN 8 / EAN / UCC128 / ISBN13 / ISMN / ISSN / Logmars / NVE18 / PZN7 / PZN8 / service-id / SSCC 18 / UPC 12 / UPCA / DPD / UPU S10 / Swedish Postal Shipment ItemID

2D: PDF417 / QR Code / Data Matrix / Royal Mail Cmdm Mailmark / PPN / Swiss QR Code

Read Rate

50ms

Recognition Accuracy

5mil

Contrast

≥25%

Reading mode

Trigger / Sensing / Continuous

Reading material

Screen / Paper / Metal / PVC film

Ambient light

0~100,000LUX

Interface

Mode 1:RS232:9600 Baud, None Parity, 8 bits

Mode 2:USB HID Keyboard (default).

Mode 3:USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits

IC Technical Feature

Interface

Mode 1:RS232:9600 Baud, None Parity, 8 bits

Mode 2:CCID - PC/SC on USB (default).

Mode 3:USB Virtual Serial COM - 9600 Baud, None Parity, 8 bits

Contact IC

Standard

ISO7816 / EMV2000 Level 1 / PBOC 3.0

Card Voltage

5V / 3.3V / 1.8V.selecting the nominal card supply voltage according to ISO / IEC7816-3.

Protocol

T=0 / T=1

IC Holder

8 contacts, short circuit protection, pressure: 0.4n ± 0.1n.

Holder life: > 200,000 times

Communication rate

9600bps~38400bps, support PPS

Protection

Short-circuit protection

Contactless IC

Standard

ISO14443 A&B / EMV2000 Level 1 / PBOC 3.0

Support Card

SmartCPU Card / Mifare one 1K / 4K

Protocol

T = CL

Frequency

13.56MHz

Effective range

0~30mm

Communication rate

106K / 212K / 424K bps, support PPS
