Z500 supports EMV L1, L2 and PCI certification andsupport MSR, smart card and NFC card, and this product is intended for customers who possess development capabilities.
| Quantity: | |
|---|---|

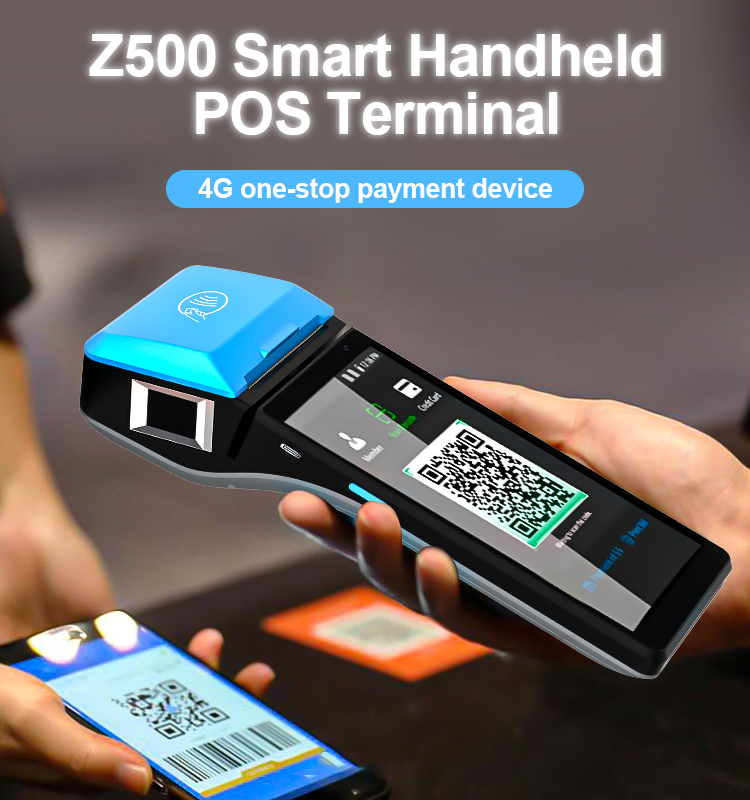

Z500
HCCTG
Z500 is equipped with a Quad-core CPU and ample memory, this EMV POS terminal ensures exceptional speed and processing power, enabling busy merchants to swiftly and efficiently handle transactions.
One standout feature of the Z500 is its flexibility, allowing for customization to cater to the unique needs of local businesses. It offers support for additional features such as a fingerprint scanner and fiscal module, crucial for businesses seeking compliance with local regulations and tax requirements.
Combining its impressive speed, customizable options, and reliable performance, the Z500 emerges as the ultimate payment solution for businesses that strive for excellence. As a result, it has become the preferred choice for merchants who value efficiency and effectiveness.
Features
1.8GHz Quad-Core ARM Cortex-A53;
GMS certified Android 11.0 Safedroid OS;
Massive memory: 2GB RAM + 16GB ROM ( up to 4GB RAM + 64GB ROM);
6.0 inch TFT IPS LCD, resolution 1440*720;
Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth 5.0, VPN;
Dual cameras & Symbol 2D scanner for comprehensive scanning scenarios;
58mm thermal receipt printing;
One-stop payment of MSR/ICCR/NFC, with PCI PTS 6.X, EMV L1&L2, Paypass, Paywave, Amex and TQM certified
Specifications
Basic Characteristics | OS | Safedroid OS (based on Android 11.0) GMS certified |
CPU | 1.8GHz Quad-Core ARM Cortex-A53 | |
ROM | 16GB ROM EMMC | |
RAM | 2GB RAM LPDDR | |
Display | 6.0 inch TFT IPS LCD, resolution 1440*720 | |
Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
Dimensions | 224mm X 84mm X 18mm (max 51mm) | |
Weight | 410g (Battery included) | |
Keys | Physical keys: Power on/off, Volume + /-, Scan | |
Input | Chinese/English, and supports handwriting and soft keyboard | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz |
Bluetooth | BT 5.0 and earlier | |
4G | European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 | |
3G | European version(Default): WCDMA: B1/B8 | |
2G | European version(Default): GSM/GPRS/EDGE: 900/1800MHz | |
Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
Smart Card reader | Supports ISO7816 standard | |
Contactless Card reader | Supports 14443A/ 14443B | |
Expansion and peripherals | Printer | High-Speed Thermal Printer; 58mm printing paper ; 40mm paper roll |
Rear Camera | 5MP camera with LED flash and auto-focus function | |
Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo | |
LEDS | 3 colors are used to indicate | |
Audio | Speaker, Microphone, Buzzer | |
Interfaces | Micro SD Card Slot | 1 Pcs |
SIM Card Slot | 1 Pcs Micro SIM | |
PSAM Card Slot | 2 Pcs Conforms to ISO7816 standard | |
USB Port | 1 Pcs Type C USB | |
Power | Battery | Li-ion battery, 7.6V/2600mAh |
Charging Port | Type C USB Port, 5V DC/2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE, RoHS, FCC |
