ACM1323
ACS

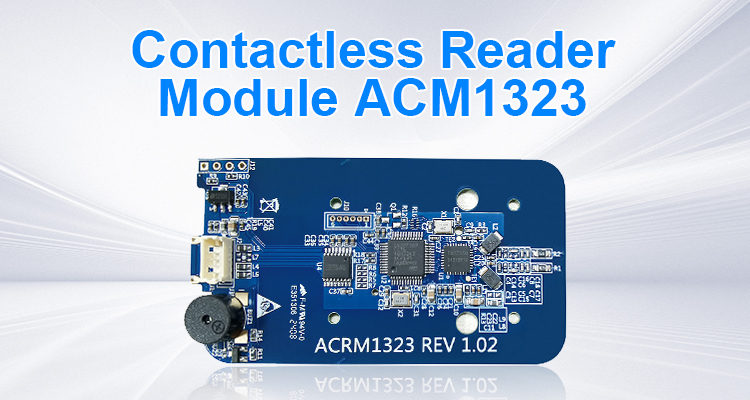

USB RS232 Contactless Reader Module ACM1323
ACM1323 does not require any driver installation and supports plug-and-play functionality. It is designed for easy integration into embedded systems and can be used for various applications such as charging stations, tablets, vending machines, public transport, Internet access control, attendance and other integrated systems.
Features:
Support various contactless card type:
ISO 14443 Type A
CPU cards
MIFARE Classic, MIFARE 1K/4K, MIFARE Plus and DESFire
Secure
1 x ISO 7816-compliant SAM slot for enhanced security (upon request)
Firmware Upgrade;
Reliable:
Certified with international regulations
Mean time between failures (MTBF) up to 500k hours
Supported OS Platforms:
Windows®
Linux®
AndroidTM
Specifications：
| Contactless Smart Card Interface | ||
Supported Card Types | ISO 14443 1-4 Type, MIFARE Classic, MIFARE 1K/4K, MIFARE Plus and DESFire | |
Operating Frequency | 13.56 MHz | |
Reading Distance | Up to 50 mm (Depending on card type) | |

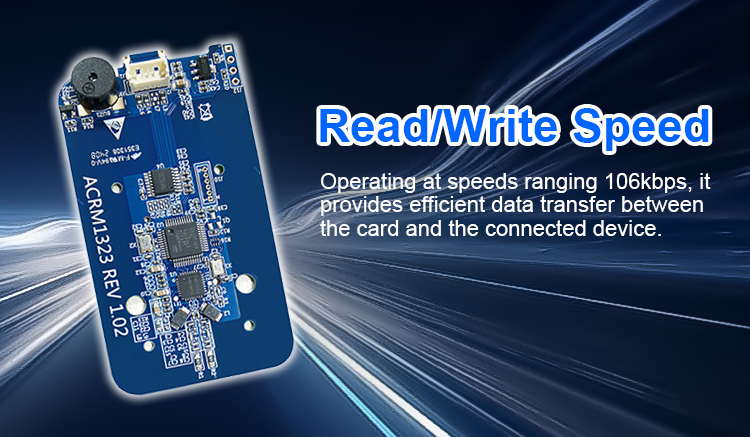

Read/Write Speed | 106kbps | |
Anti-Collision Feature | Support | |

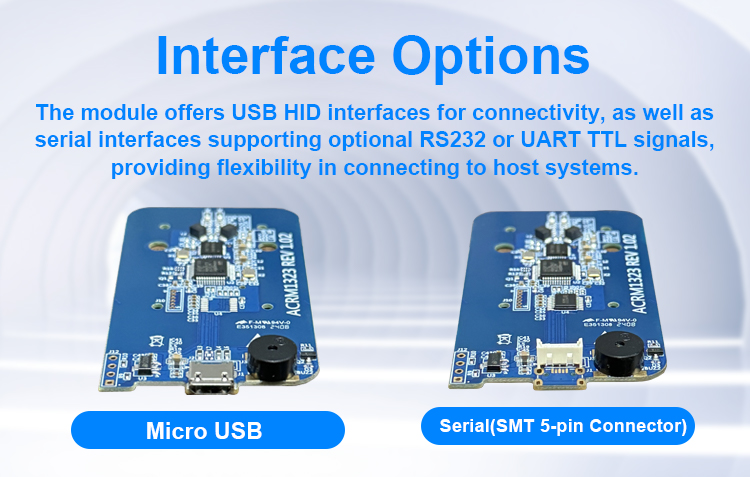

Interface | ||
Protoco | USB-HID | Seria |
Connector Type | Micro USB | SMT 5-Pin Connector |
Speed | USB 2.0 Full speed(12Mbps) | 9600~115200bps(Default) |
Supply Voltage | 5V DC | 5V DC |
Supply Curren | Max 300mA | Max 300mA |
Firmware Upgrade | Support | Support |
Physical Characteristics | ||

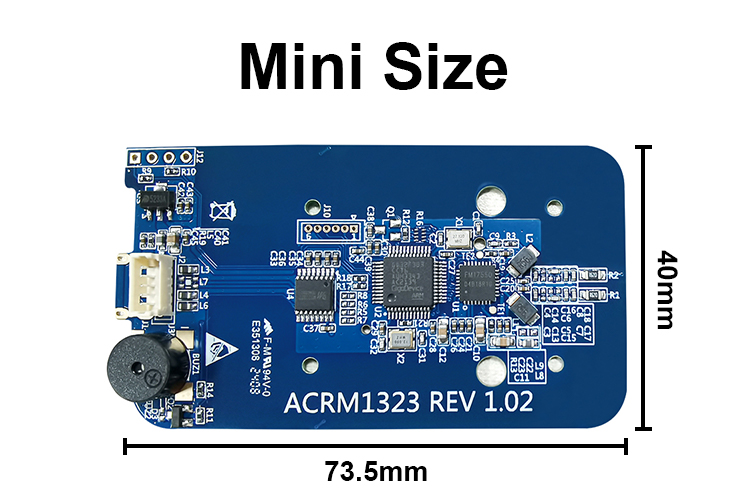

Dimension(L*W*H) | Main Body:73.5mm*40.0mm*5.0 mm | |
Weight | 7.2 g (without cable) | |
| Peripherals | ||
Buzzer | 1 x Programmable Buzzer (Mono-tone) | |
LED Indicator | 1x Programmable LED (Blue and Green) (Optional) | |
Operating Condition | ||
Temperature | -10℃-60℃ | |
Humidity | 90%(Non-condensing) | |
MTBF | 500k hours | |
Certifications/Compliance | ||
Certification | ROHS, REACH | |
Standard | ISO 14443, HID | |
Library and Tool | ||
Library | scrio.lib, scrio.dll | |
Tool | SDK | |
Supported System and Warranty | ||
Supported Operating System | Windows®, Android, Linux®, RTOS (Serial) | |
Warranty | 1 Year | |
