R330 is with android 7.1 operation system, full bands for global coverage: 4G/3G/2G,WLAN, Bluetooth, GPS. This product is intended for customers who possess development capabilities.
R330
HCCTG

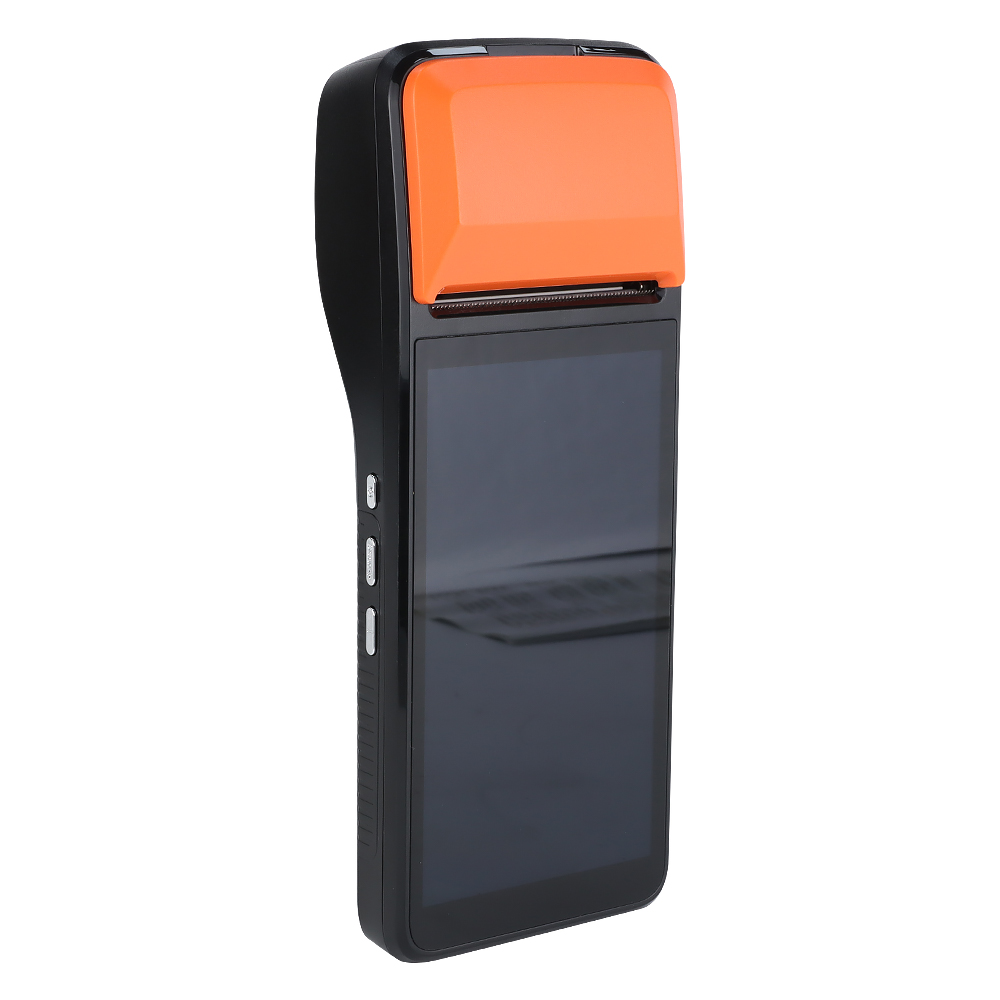

5 Inch EMV Bluetooth Android 7.1 Smart POS Terminal For Mobile Payment R330
The R330, equipped with a 5.0 inch high definition colorful display and an industrial level thermal printer, is not only suitable for warehouse management and small businesses like cafeterias, boutiques, and bookstores, but it also serves as an efficient Android 7.1 POS machine with a built-in printer. This versatile mobile payment terminal meets the demands of modern businesses, offering seamless integration of barcode scanning capabilities and catering to diverse scenarios, making it an excellent choice for retailers and entrepreneurs seeking a reliable POS machine with printer functionality.
Features:
Tablet configuration: 1.3GHz Quad-core CPU which supports the simultaneous operation of multiple utility easily. Android 7.1 Nougat OS with high compatibility and stability.

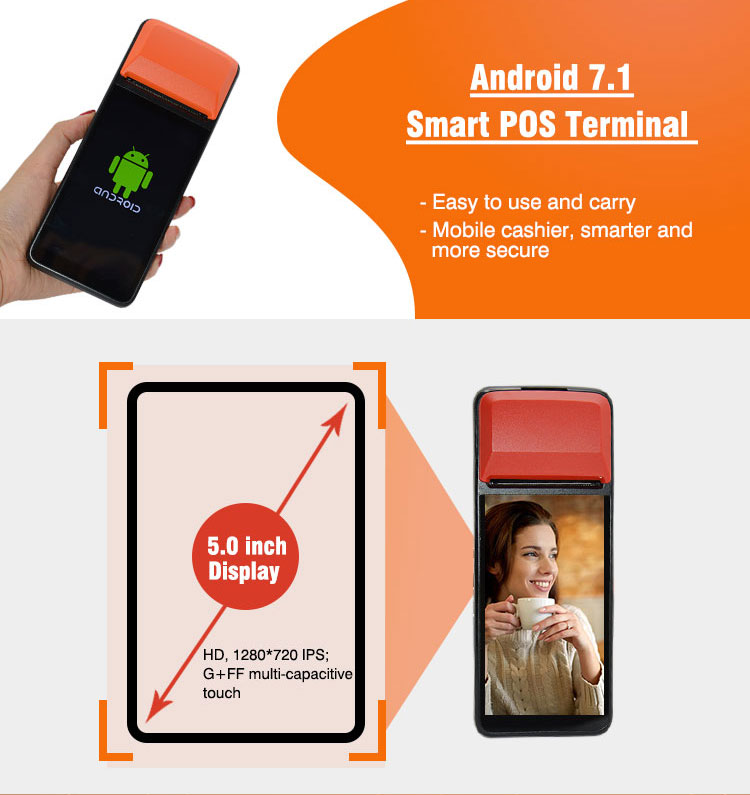

Screen: 5”HD+, 1280*720 IPS, capacitive multi-touch panel.
Built-in Printer: 58mm direct thermal printing, support roll diameter 40mm.
Built-in MSR(Optional): Magnetic stripe card supported
Embedded NFC (Optional): Contactless IC card supported.
QR code scanning head (Optional): Includes decoder chip of QR code, support all barcodes types and common QR code.
Camera: 5.0MP, AF, rear-facing camera for scanning various barcodes and QR code, and it’s available for scanning payment code such as WeChat, Alipay etc.
Specification
Introduction | R330 Smart Handheld POS Terminal |
Processor | Snapdragon 425, 1.4GHz, Quad-core, Cortex-A53 |
Memory | 2GB RAM,16GB Flash |
OS | Android 7.1 |
Display | 5.0'' HD, 1280*720 IPS; G+FF multi-capacitive touch |
Key PAD | Power on / off, Volume up / Scanner |
Card Slot Support | SIM: 1*SIM Card ( 1.8v / 3.0 v ) |
Fiscal Module | Support 12C or UART interface 30.0±0.2*30.0±0.2*9.2±0.2 mm |
Data Connect | Communication:4G(Full band)/3G/2G |
WIFI: 2.4G/5GHz、Support IEEE802.11a/b/g/n | |
Bluetooth: Support 3.0/4.0, BLE, ibeacon | |
GPS | Built-in GPS, support A-GPS |
Thermal Printer | High-speed 58mm line, 40 mm Roll, low noise, power saving |
Camera | Rear Camera: 5.0 M, AF (automatic focus) |
Front Camera(Optional): 0.3 M 3P, FF (Fixed-focus) | |
Battery | Two 18650 cell from samsung ( ICR 18650-26J ) 7.4v / 2600 mAh |
Speaker | 0.8 W / 85 dB |
Earphone-jack | 3.5mm standard, support external RFID reader via this connector |
Interface | 1*Micro USB connector, support OTG USB to RJ45 network |
Adaptor | Input: AC 100~240v, 0.5 A, output: 5v / 2 A |
Dimensions | 198*79*48 (L*W*H) mm |
Anti-Drop | 1.2 meter |
Certification | CE, ROHS |
Optional | NFC: ISO/ICE14443, Type A/B, Mifare Card |
Support 1D CCD barcode scanning and reading |
